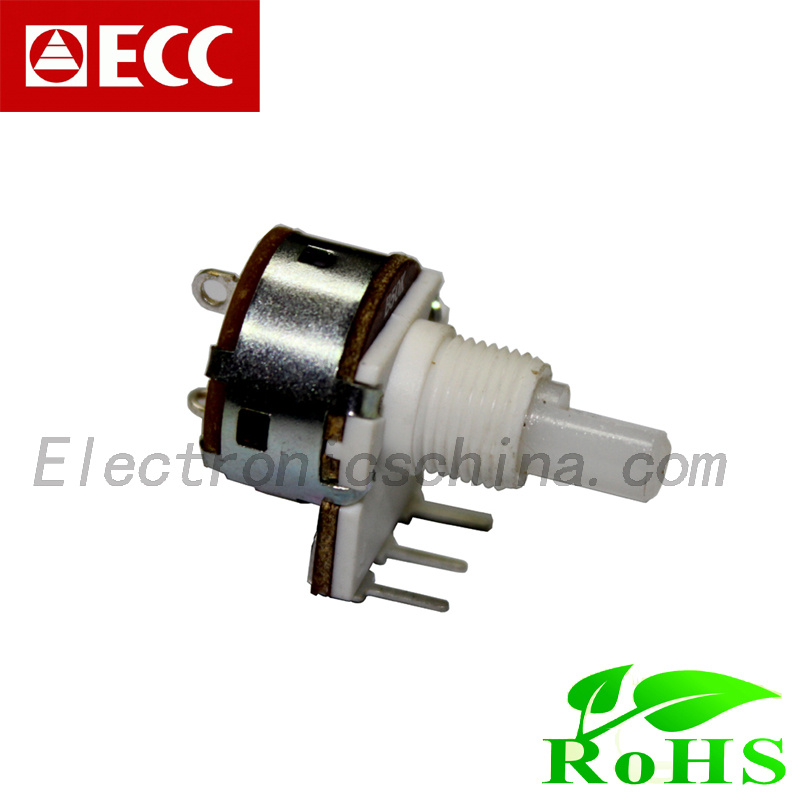

Rotary Potentiometer for Dimming Light (R1613S- C3)

Name: Rotary Potentiometer for Dimming Light (R1613S- C3)
Brand: china-manufacturer-directory.com
SKU: 103263393
Availability: InStock
Rating: 4.5 (131 reviews)

Supplier:	Electronics China (Huizhou) Co., Ltd.
Price:	Negotiable/Piece
Min Order:	2000/Piece
Quantity::
Trade Terms:	FOB,FCA,EXW

Product Specifications

Prod Model:	R1613S- C3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resistance:	Variable Resistor
Type:	Rotary Potentiometer
Installation:	DIP Resistor
Function For Resistance:	Protective Resistor
Material:	Ceramic and Metal
Package Type:	Throught Hole

Product Description

Electronics china are leading potentiometer supplier in china.we are specializing in producing and developing potentiometers,Slide potentiometers,Encoders,Switchs for many years.With competive price and high quality. Rotary Potentiometer (R1612 / R1613 / R1614 / R1616 ) Rotary potentiometer Mechanical characteristics: Total rotational angle: 280 degree+_5 degree Rotational torque: 1-8mN. M(10-80gf. Cm) Push pull strength: 50N(5kgf. Cm) Rotation stopper strength: 0.3N. M(3kgf. Cm) Shaft lever wobble: 0.8*L/20mmp-p MAX Carbon potentiometer Electrical characteristics: Total resistance: 1K Ohm-1M Ohm Total resistance tolerance: +_20% more than 1MOhm: +_30% Rated power: 0.05W Max. Operating voltage: 50V AC/20V DC Resistance tapper: A, B, C Residual resistance: R>=250K Ohm 0.1% max, of total resistance 10K Ohm

Electronics China (Huizhou) Co., Ltd. [formerly Mika Electronics ] was established in 1988 and represents a SinoForeign joint venture withthe ECCGroup-the major shareholder. The Company s pecializ es inthe manufacture of a wide range of pass IV e components including Carbon Potentiometers, Rotary Encoders and Tactile Switches with ISO9000 Certification. Todaythefactory encompass es an area of 12, 000 s quare meters employing 300fully-trained staff. Most of the high precis ion equipment has been importedfromGermany, U. S. A, Slov enia and Taiwan. Ins trumental in the success of the Company has beenthe very s trong emphasis put on good management and of the expansion of our production capacity.

We also offer as a managing principle Quality, Service, Price&Value-or what we term QSPV-and invite you if you were considering of outsourcing, or wanting to do low-cost development in China that we forge a partnership and build a strong relationship that can be backed up with our 20 years experience in the industry. The company utilizes a wide network of contacts & suppliers across China and when called upon Chinese language search engines to locate obsolete or allocated product {or products} to help you save time and money.

We also offer as part of our commitment to you the following services:

1. Flexibility with minimum order requirements.

2. Scheduled deliveries.

3. Consolidated shipments either by air or sea.

4. Full product datasheets.

5. Technical support.

6. Simple ordering procedure: Email, fax or mail.

7. Competitive shipping rate

Please contact ustoday inthe very s trictes t of confidence with a detailed overv iew of your product specification, order

Quantity and/or other requirements. Enquiries must accompanyfull and precise detailed information including

Specifications, drawings and/or hyperlink.
