Product Specifications
| Prod Model: |
GD6-200C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Material: |
Stainless Steel |
| Voltage: |
380V |
| Powder: |
3kw |
| Type: |
Volumetric Filling Machine |
| Automatic Grade: |
Automatic |
| Material Type: |
Liquid |
| Filling Valve Head: |
Single-Head |
| Feed Cylinder Structure: |
Multi-Room Feeding |
| Dosing Device: |
Capacity Cup |
| Filling Principle: |
Pressure |
| Packaging Container Lifting Structure: |
Pneumatic Lifting |
| Structure: |
Rotary |
| Packaging Type: |
Bag |
| Packaging Material: |
Plastic |
Product Description
Rotary Stand up Spout Pouch Filling and Sealing MachineFunction and characteristics
1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Frequency conversion adjusts the speed: This machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
3. Automatic checking: No pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
4. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
5. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
6. Use the plastic bearing, don't need put on oil, less pollution.
7. Use no oil vacuum pump, avoid polluting the environment in the production.
8. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
9. Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
10. With different feeders changed to pack solid, liquid, thick liquid, powder and so on.
11. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE, PP and so on Preformed bag made by film and paper.
Product Process
1. Giving bag
2. Coding date
3. Open bag
4. Filling &vibrate
5. Sealing
6. Forming & output packages.
Model |
GD6-200C |
Working position |
six-working position |
Pouch material |
Laminated film \PE\PP etc. |

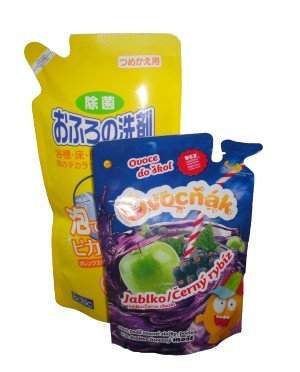

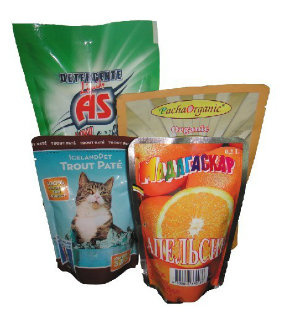

Pouch pattern |
Stand-up,spout,falt |
Pouch size |
W:100-210mm L:100-350mm |
Speed |
≤ 50 pouches/min(The speed depends on the product status and f i lling weight)) |
Weight |
1000KGS |
Voltage |
380V 3phase 50HZ/60HZ |
Total power |
5KW |
Compress air |
0.6m 3 /min(supply by user) |
Wenzhou Keed Machinery Co., Ltd., located in Zhongzhou industrial zone, Ruian, Zhejiang, is the excellent manufacturer of automatic pouch filling and sealing machine. We have advanced producing equipments, perfect quality guarantee system and after service system to ensure our leading position in this field.
Kedi packing machinery Co., Ltd is specialized in manufacturing different kinds of automatic rotary packer. Our machines adopt imported PLC, man-machine interface and pneumatic components. We use of different manufacturing engineering's according to different packaging materials and use of newest technology and techniques continuously. We are developing new products actively and afford newest products and perfect services to foods, chemicals, pharmaceuticals, seeds and other industrial fields.
We are emphasizing product quality, using of high quality materials, adopting advanced designs and strict manufacturing standards forever. We have advanced technology and managements to guarantee the products quality and can supply perfect products and after service. We are establishing corporate image and creating perfect products in packaging industry.
We produced automatic edgefolded pouch filling and sealing machine successfully on Feb 2006.
We had the honor to get the prize of Good faith nongovernmental business enterprise on April 2005. We had the honor to get the prize of Science and technology achievement in Zhejiang province and were recommended to be new products of national grade on DEC. 2004. We developed new automatic pouch filling and sealing machine with high speed and six working positions on Nov. 2003. We was the first company that imported a pouch filling and sealing machine with eight working positions on June 2002. We imported Taiwan technology to produce pouch filling and sealing machine with six working positions on March 2000. On July 1997, Kedi packing machinery Co., Ltd. Was established.
