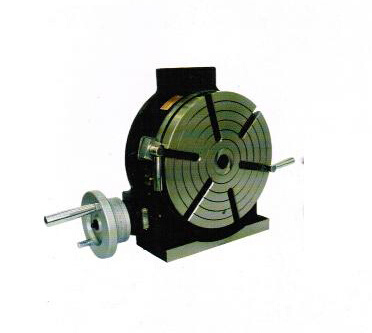

Rotary Table
| Price: |
US $ 115-600/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
HV4-HV16 |
| Markets: |
North America,South America,Southeast Asia,Mid East,Eastern Asia |
| Function: |
Circular Cutt, Angle Setting, Boring,Spot-Facing |
Product Description
Features:
These Rotary Tables are popular for their excellent performance. practical design and reasonable cost. They are widely used for circular cutting work, angle setting, boring, spot-facing and similar work.
Used the key guide block, the center can be corrected both quickly and accurately.
The work table is graduated a full 360º so that one turn of the handle moves the table through 4º.
The table can be worked in both horizontal /vertical position.| Size | Table | Base Dimension | Bolt Slots | Center Sleeve | Worm Gear Ratio | N.W.(kg) |
| D | H | H1 | A | B | K |
| 4" | mm | 100 | 62 | 70 | 140 | 118 | 14 | MT2 | 90:1 | 5 |
| inch | 3.93 | 2.44 | 2.75 | 5.51 | 4.64 | 0.55 |
| 6" | mm | 150 | 83 | 100 | 200 | 160 | 16 | MT2 | 12 |
| inch | 5.91 | 3.26 | 3.93 | 7.87 | 6.29 | 0.63 |
| 8" | mm | 200 | 105 | 135 | 265 | 220 | 16 | MT3 | 31 |
| inch | 7.87 | 4.13 | 5.31 | 10.43 | 8.66 | 0.63 |
| 10" | mm | 250 | 115 | 165 | 325 | 280 | 16 | MT3 | 47 |
| inch | 9.84 | 4.33 | 6.49 | 12.79 | 11.02 | 0.63 |
| 12" | mm | 300 | 132 | 195 | 391 | 330 | 16 | MT4 | 76 |
| inch | 11.81 | 5.19 | 7.69 | 15.39 | 12.99 | 0.63 |
| 14" | mm | 350 | 138 | 230 | 450 | 390 | 16 | MT4 | 95 |
| inch | 13.77 | 5.43 | 9.05 | 17.71 | 15.35 | 0.63 |
| 16" | mm | 400 | 155 | 255 | 500 | 430 | 16 | MT4 | 135 |
| inch | 15.74 | 6.1 | 19.68 | 19.68 | 16.92 | 0.63 |
