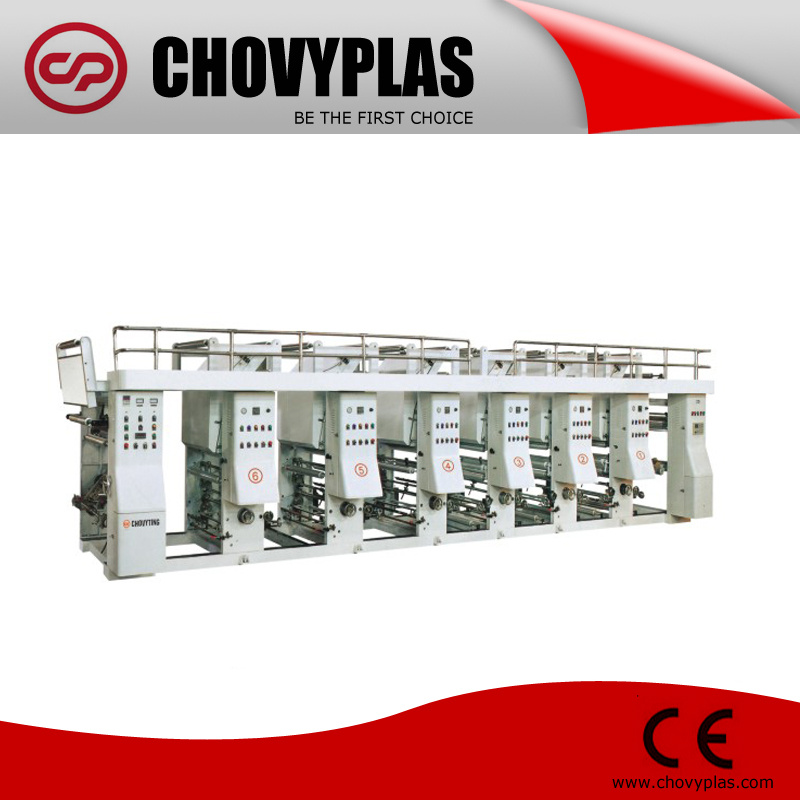

ROTOGRAVURE PRINTING MACHINE SUITFOR PLASTIC FILM AND PAPER.
Rotogravure Printing Machine Features:
1, The latest improved gear box, 360o no-stopping registration device.
2, Movable type doctor blade, transverse reciprocating motion.
3, Rewinding and traction adopt magnetic powder clutch to make tension stable, rewinding neat and smooth.
4, Turnover double-station unwinding and rewinding device, receiving and replacing material without stopping the machine.
5, Obverse and reverse side once-through continuous printing.
Type
| CWASY -6600A
| CWASY-6800A
| CWASY-61000A
|
Effective printing width
| 600mm
| 800mm
| 1000mm
|
Max width of web
| 620mm
| 820mm
| 1020mm
|
Max printing speed
| 10 -75m /min
| 10 -75m /min
| 10 -75m /min
|
Max diameter of unwind/rewind
| φ 600mm
| φ 600mm
| φ 600mm
|
Diameter of printing cylinder
| φ 70-390mm
| φ 70-390mm
| φ 70-390mm
|
Accuracy of registration
| ± 0.2mm
| ± 0.2mm
| ± 0.2mm
|
Heating power of oven
| 21.6kw
| 28.8kw
| 36kw
|
Total poewr
| 29.2kw
| 36.6kw
| 44kw
|
Weight of machine
| 6500kg
| 7000kg
| 75000kg
|
Overall dimension(mm)
| 8100x1900x2400
| 8100x2100x2400
| 8100x2300x2400
|
NEWS: We will attend to 2013 CHINAPLAS at 20-23th, May. 2013, from Guangzhou, China. Our BOOTH NO: 7.1B01. We will show 5-6 PCS different machines from. Welcome to visit!
We, ZHEJIANG CHOVYTING MACHINERY Co., Ltd (old name: Ruian chovyting packing machinery factory) are a professional manufacturer of plastic bag machines and soft packaging equipment. We always keep ahead in development or service abilities.
At present, our machines sell all over the world and get good praises from a lot of customers, famous for good quality or advanced technology. Chuangwei obtains high praise as a manufacturer all the time. With high technology, satisfactory service and our patent, we build up our brand and keep "technology supper, quality first, service satisfied" and provide complete technical consultation and after-sales services.
Our company keeps developing spirit, continuous progress and best after-sales service to all of customers. That is why Youbang Co., Zhonghua Group, Dayang Co. And Jinshi Group have long term business relationships with us.
Chuangwei is looking forward to a bright future facing challenges for more advanced technology.
