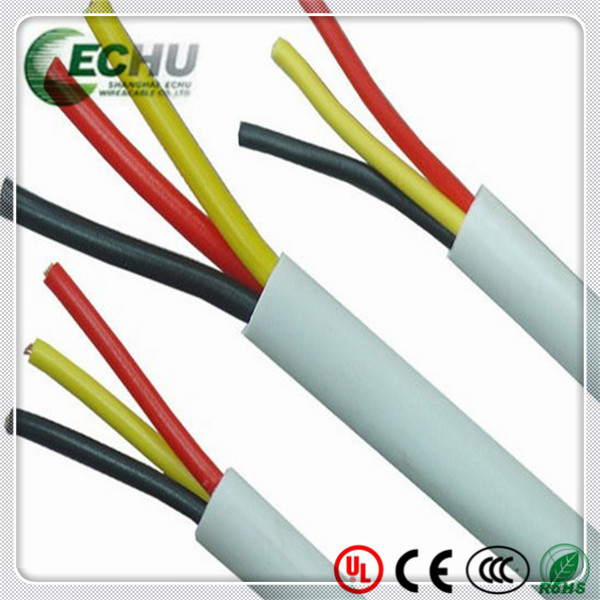

Round Electrical Control Cable UL Approved

Round Electrical Control Cable UL Approved
Supplier: Shanghai Echu Wire and Cable Co., Ltd.
Price: US $ 0.1226-0.1435/Meter
Min Order: 5000/Meter
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: UL2464
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
UL2464: 3cx24AWG
Type: Insulated
Conductor Material: Copper
Conductor Type: Stranded
Insulation Material: PVC
Application: Heating
Certification: RoHS

Product Description

Round Electrical Control Cable UL Approved Applications: As measuring monitoring and control cable, it is suitable for the places of machine tool manufacturing, complete equipment installation engineering, power station, refrigeratory equipment, OA equipment, data processing system and heating and air-condition system. Properties: Heat resistance, good insulation property, excellent chemical performance; Extruding sheath. Standard: UL758 Structure: Conductor: Fine strands of copper/tinned copper wire, excellent corrosion resistance Insulation: Special PVC Color: Acc. To UL758 Earth wire: Bare copper Sheath: 80 degree heat-resistant, flame-resistant PVC, pass VW-1 flame testing Technical data: Rated voltage: 300V Test voltage: 2000V Temperature range: Fixed installation: -40 degree to + 80degree Flexing Installation: -10degree to +80 degree The minimum bending radius: Fixed Installation: 4Xouter diameter Flexing Installation: 15Xouter diameter
Type Specification Conductor Number Each conductor Dia. φ Weight KG/KM O.D. Limit (mm) O.D. UP (mm) 45
UL2464 26AWG*2C 7 0.16 24.5 4.0 4.4 600
UL2464 26AWG*3C 7 0.16 28 4.2 4.6 742
UL2464 26AWG*4C 7 0.16 32.9 4.5 4.9 907
UL2464 26AWG*5C 7 0.16 38.1 4.9 5.3 1080
UL2464 26AWG*6C 7 0.16 43.6 5.3 5.7 1257
UL2464 26AWG*7C 7 0.16 46.6 5.3 5.7 1390
UL2464 26AWG*8C 7 0.16 52.1 5.6 6 1568
UL2464 26AWG*9C 7 0.16 59 6.2 6.6 1770
UL2464 26AWG*10C 7 0.16 65.7 6.5 6.9 1970
UL2464 26AWG*11C 7 0.16 70.7 6.7 7.1 2138
UL2464 26AWG*12C 7 0.16 72.8 6.7 7.1 2254
UL2464 26AWG*13C 7 0.16 75.7 7.1 7.5 2362
UL2464 26AWG*14C 7 0.16 78.7 7.1 7.5 2494
UL2464 26AWG*15C 7 0.16 84.5 7.4 7.8 2676
UL2464 26AWG*16C 7 0.16 87.6 7.4 7.8 2809
UL2464 26AWG*17C 7 0.16 93.6 7.8 8.2 2994
UL2464 26AWG*18C 7 0.16 96.6 7.8 8.2 3127
UL2464 26AWG*19C 7 0.16 99.6 7.8 8.2 3259
UL2464 26AWG*20C 7 0.16 104.2 8.0 8.4 3420
UL2464 26AWG*21C 7 0.16 108.7 8.2 8.6 3579
UL2464 26AWG*22C 7 0.16 116 8.7 9.1 3786
UL2464 26AWG*23C 7 0.16 122.3 9.1 9.5 3977
UL2464 26AWG*24C 7 0.16 125.3 9.1 9.5 4109
UL2464 26AWG*25C 7 0.16 130.1 9.3 9.7 4330
UL2464 26AWG*26C 7 0.16 133.1 9.3 9.7 4405
UL2464 26AWG*27C 7 0.16 136.1 9.3 9.7 4538
UL2464 26AWG*28C 7 0.16 142.1 9.6 10.0 4723
UL2464 26AWG*29C 7 0.16 145.1 9.6 10.0 4856
UL2464 26AWG*30C 7 0.16 148.2 9.6 10.0 4988
UL2464 26AWG*31C 7 0.16 154.5 10.0 10.6 5180
UL2464 26AWG*32C 7 0.16 157.5 10.0 10.6 5312
UL2464 26AWG*33C 7 0.16 160.6 10.0 10.6 5445
UL2464 26AWG*34C 7 0.16 167.2 10.4 11 5641
UL2464 26AWG*35C 7 0.16 170.2 10.4 11 5774
UL2464 26AWG*36C 7 0.16 173.2 10.4 11 5907
UL2464 26AWG*37C 7 0.16 171.3 10.2 10.8 5950
              45
UL2464 24AWG*2C 11 0.16 27.2 4.1 4.5 608
UL2464 24AWG*3C 11 0.16 31.7 4.4 4.8 777
UL2464 24AWG*4C 11 0.16 37.8 4.7 5.1 968
UL2464 24AWG*5C 11 0.16 44.3 5.1 5.5 1166
UL2464 24AWG*6C 11 0.16 51.1 5.6 6 1369
UL2464 24AWG*7C 11 0.16 55.2 5.6 6 1531
UL2464 24AWG*8C 11 0.16 62.1 6 6.4 1735
UL2464 24AWG*9C 11 0.16 70.6 6.6 7 1962
UL2464 24AWG*10C 11 0.16 79 7 7.4 2189
UL2464 24AWG*11C 11 0.16 85.4 7.3 7.7 2385
UL2464 24AWG*12C 11 0.16 88.3 7.3 7.7 2529
UL2464 24AWG*13C 11 0.16 91.7 7.6 8 2659
UL2464 24AWG*14C 11 0.16 95.8 7.6 8 2821
UL2464 24AWG*15C 11 0.16 103 8 8.4 3029
UL2464 24AWG*16C 11 0.16 107.1 8 8.4 3191
UL2464 24AWG*17C 11 0.16 114.6 8.5 8.9 3402
UL2464 24AWG*18C 11 0.16 118.7 8.5 8.9 3564
UL2464 24AWG*19C 11 0.16 122.8 8.5 8.9 3726
UL2464 24AWG*20C 11 0.16 128.7 8.7 9.1 3914
UL2464 24AWG*21C 11 0.16 134.5 8.9 9.3 4101
UL2464 24AWG*22C 11 0.16 143.5 9.5 9.9 4334
UL2464 24AWG*23C 11 0.16 151.3 9.9 10.5 4551
UL2464 24AWG*24C 11 0.16 155.4 9.9 10.5 4713
UL2464 24AWG*25C 11 0.16 161.5 10.2 10.8 4951
UL2464 24AWG*26C 11 0.16 165.6 10.2 10.8 5066
UL2464 24AWG*27C 11 0.16 169.7 10.2 10.8 5228
UL2464 24AWG*28C 11 0.16 177.2 10.5 11.1 5440
UL2464 24AWG*29C 11 0.16 181.3 10.5 11.1 5602
UL2464 24AWG*30C 11 0.16 185.4 10.5 11.1 5764
UL2464 24AWG*31C 11 0.16 193.4 10.9 11.5 5982
UL2464 24AWG*32C 11 0.16 197.5 10.9 11.5 6144
UL2464 24AWG*33C 11 0.16 201.6 10.9 11.5 6306
UL2464 24AWG*34C 11 0.16 209.8 11.4 12 6529
UL2464 24AWG*35C 11 0.16 213.9 11.4 12 6691
UL2464 24AWG*36C 11 0.16 218 11.4 12 6853
UL2464 24AWG*37C 11 0.16 222.1 11.4 12 7015
              45
UL2464 22AWG*2C 17 0.16 32.2 4.4 4.8 794
UL2464 22AWG*3C 17 0.16 38.1 4.7 5.1 1037
UL2464 22AWG*4C 17 0.16 45.8 5.1 5.5 1307
UL2464 22AWG*5C 17 0.16 54 5.6 6 1585
UL2464 22AWG*6C 17 0.16 62.5 6 6.4 1869
UL2464 22AWG*7C 17 0.16 68 6 6.4 2106
UL2464 22AWG*8C 17 0.16 76.7 6.5 6.9 2391
UL2464 22AWG*9C 17 0.16 87.2 7.2 7.6 2705
UL2464 22AWG*10C 17 0.16 97.7 7.6 8 3018
UL2464 22AWG*11C 17 0.16 105.8 7.9 8.3 3295
UL2464 22AWG*12C 17 0.16 109.9 7.9 8.3 3510
UL2464 22AWG*13C 17 0.16 114.1 8.3 8.7 3706
UL2464 22AWG*14C 17 0.16 119.5 8.3 8.7 3942
UL2464 22AWG*15C 17 0.16 128.6 8.8 9.2 4232
UL2464 22AWG*16C 17 0.16 134 8.8 9.2 4469
UL2464 22AWG*17C 17 0.16 143.4 9.2 9.6 4764
UL2464 22AWG*18C 17 0.16 148.8 9.2 9.6 5000
UL2464 22AWG*19C 17 0.16 154.3 9.2 9.6 5237
UL2464 22AWG*20C 17 0.16 161.8 9.5 9.9 5504
UL2464 22AWG*21C 17 0.16 169.2 9.7 10.1 5771
UL2464 22AWG*22C 17 0.16 180.3 10.4 11.0 6090
UL2464 22AWG*23C 17 0.16 190.2 10.8 11.4 6392
UL2464 22AWG*24C 17 0.16 195.6 10.8 11.4 6628
UL2464 22AWG*25C 17 0.16 203.3 11.1 11.7 6947
UL2464 22AWG*26C 17 0.16 208.8 11.1 11.7 7136
UL2464 22AWG*27C 17 0.16 214.2 11.1 11.7 7373
UL2464 22AWG*28C 17 0.16 223.6 11.5 12.1 7668
UL2464 22AWG*29C 17 0.16 229.1 11.5 12.1 7905
UL2464 22AWG*30C 17 0.16 234.5 11.5 12.1 8142
UL2464 22AWG*31C 17 0.16 244.5 12 12.6 8445
UL2464 22AWG*32C 17 0.16 249.9 12 12.6 8682
UL2464 22AWG*33C 17 0.16 255.3 12 12.6 8918
UL2464 22AWG*34C 17 0.16 265.6 12.4 13.0 9227
UL2464 22AWG*35C 17 0.16 271.1 12.4 13.0 9464
UL2464 22AWG*36C 17 0.16 276.5 12.4 13.0 9700
UL2464 22AWG*37C 17 0.16 281.9 12.4 13.0 9937

Shanghai Echu Wires & Cables Co., Ltd is a professional manufacturer integrating production, sales and service together, which produce cable to meet the requirement in Special occasion and normal occasion.

Our main products include: Drag chain cable and robot cables; industry cable and data cables; flexible cable and control cables; elevator travelling cable; crane cable; flat crane travelling cable; shield cable; electrical cable; high frequency coaxial cable; drum-reeling cable; security cable and so on. ECHU cable is to integrate scheme with complete solution for industrial and mining enterprises, industrial equipment and industrial unit, Industrial Automation.

After years of development, ECHU cable is universally acknowledged with super before-sales service, positive products' quality guarantee and complete after-sales service.

ECHU cable has been awarded the certificate of Chinese Top 10 Brand of Wire and Cable and Chinese Top 500 Enterprise of Quality by Chinese Product Quality Inspection Commission and Chinese Product Recommendation Commission. ECHU is also been invited to join Shanghai Wire & Cable Industry Association and Shanghai Contract Credit Association.
On that basis, ECHU people study harder and explore & develop constantly. ECHU cable builds its own team through absorbing advance design philosophy of LAPPKABLE, TKD, IGUS, HELU, BELDEN, NEXANS and other international famous cable Enterprises; inviting Top Technical Talents and specialist; cooperating with Harbin University of Science and Technology, Shanghai Jiao Tong University, Shanghai Electric Cable Research Institute and many other famous universities and study institutes.
At the same, ECHU Company puts in much money to research and develop high-end cable products, build our own brand -ECHU® CABLE which enjoys very high fame in cable Industry. In March, 2011, especially drag chain cable has won the National Utility Model Patent, which apply in standard spare parts of modernize machine. ECHU continue to perfect the international high-end cable to change into Chinese cable with excelsior concept, the more excellent quality and moderate price.

As a modernized enterprise integrating both manufacturing and distributing, ECHU is shaped by headquarter, factory and branches across China.

The factories locate at Pudong District of Shanghai, Zhouzhuang town, Kun Shan city of Jiangsu Province. ECHU has established a strict quality control system which includes technical, checking, quality control department, Logistics department, after-sale service and other departments.

At the beginning of establishing the company, ECHU got the ISO9001 international quality system standard legalize. In order to make our products strictly meet quality standard, all ECHU products have obtained CCC, UL, CE, VDE certificates, and the quality has reached advanced level abroad and at home, even surpassed.

ECHU is combined by Purchasing, manufacturing management and technical development and product quality management, production sale service, logistics distribution, after-sale service and other departments. Talents who are involved in management, technology, marketing and production work for ECHU. ECHU people will offer you meticulous and close service in every process of our business, from inquiring, purchasing, production schedule, receiving the products and using products.

ECHU people will always bear Concept of ECHU in mind -honest, remarkable, grateful and conscientious. Sincerely welcome you from domestic or abroad to contact with us, ECHU will offer you first-class products and services.
