Round Triac Dimmable 20W LED Driver for LED Light

Constant Current
Input Voltage(V/AC):110V&230V
Power(W):20W
Output Voltage(V/DC):30&60
Output Current(mA):700/350
PF:>0.95
Efficiency((%):>82%
Dielectric Strength(V/AC):3000
Operation Temperature:-30~45 degree
Storage Temperature:-40~70 degree
Thermal Dissipation:Nature
Relative Humidity:5~95%
Isolation Voltage:In/Out 3000VAC
Vibration:5-55hZ/2G,30Minutes
Life time:50000H,AT tc max

Constant Voltage
Input Voltage(V/AC):110V&230V
Power(W):20W
Output Voltage(V/DC):12/24/48
Output Current(mA):200-1200
PF:>0.95
Efficiency((%):>82%
Dielectric Strength(V/AC):3000
Operation Temperature:-30~45 degree
Storage Temperature:-40~70 degree
Thermal Dissipation:Nature
Relative Humidity:5~95%
Isolation Voltage:In/Out 3000VAC
Vibration:5-55hZ/2G,30Minutes
Life time:50000H,AT tc max

Features:
1.Advanced patent dimming technology
2.Suitable for leading edge or tailing edge dimmers
3.Short cicuirt and over current and over voltage protection
4.Recycle and no hazardous substance
5.Double isolation design for human safety
6.Conveniently connected terminals(screws)
7.Fireproof environmental protection PC plastic cover

8.3 years quality Warranty

Technical specifcation:

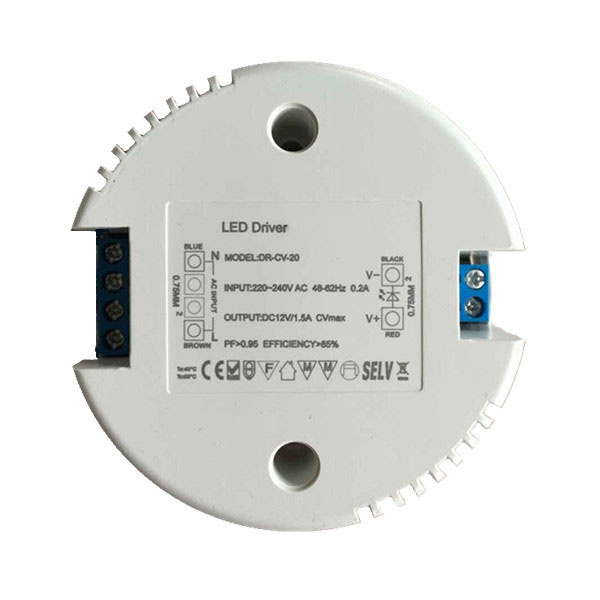

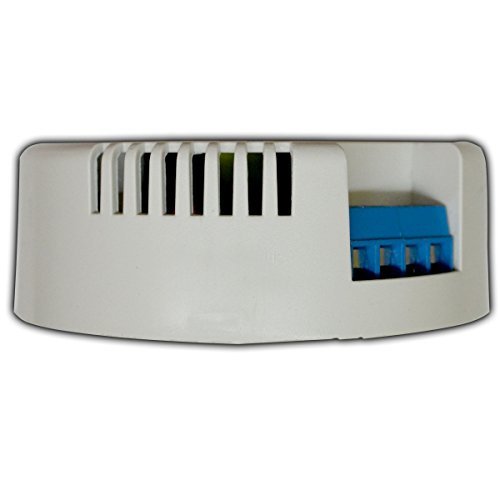

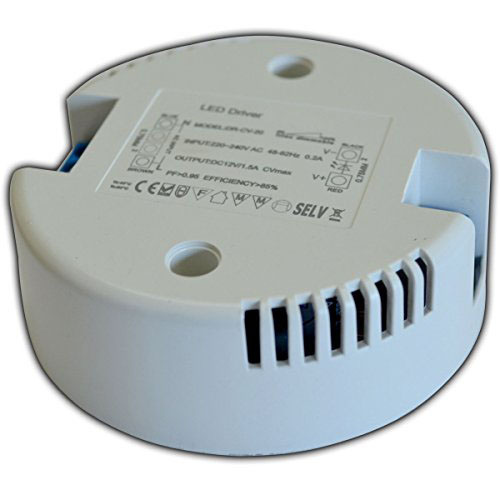

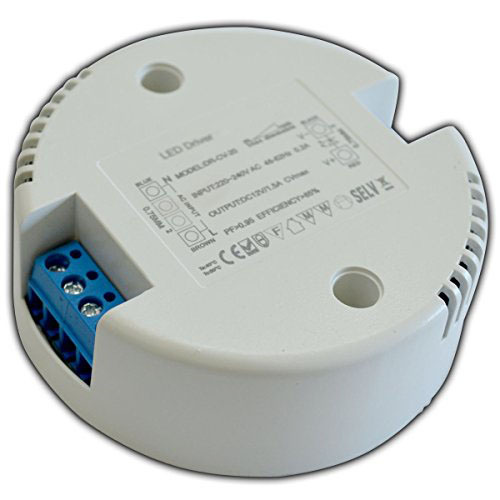

Pictures:




Conformity & Standards:
EN 55015
EN 61000-3-2-CLASSIC
EN 61000-3-3
EN 61000-4-2,3,4,5,6,8,11
EN 60598

Quality guarantee:

All the driver have automatic protection of overload, short circuit, temperature,etc.

Guarantee:1.The warranty period is 2 years.

                2.During the time ,if the product have any question ,we can change the same to you.

We can design the product according to your requirement.


Packing:

Bubble bag ,inner box,and carton etc
