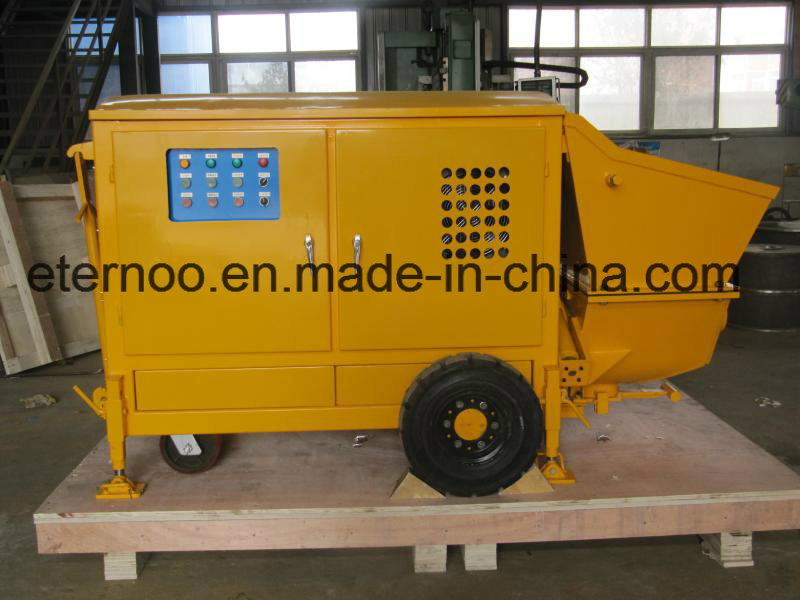

Rpb7 Wet Shotcrete Pump with Output Capacity 7m3/Hour

Rpb7 Wet Shotcrete Pump with Output Capacity 7m3/Hour
Supplier: Eternoo Machinery Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: RPB7
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty: 1 Year
Original: China
Delivery Time: in Stock or 10 Days After Deposit
Motor Type: Electic Motor or Diesel Engine
Voltage: Can Be Made According to Your Local Voltage
Type: Shotcrete
Certification: CE
Condition: New
Machining Process: Spraying Concrete
Structure: S Tube Valve
Productivity: 5m3/H

Product Description

Applications of RPB7 shotcrete pump

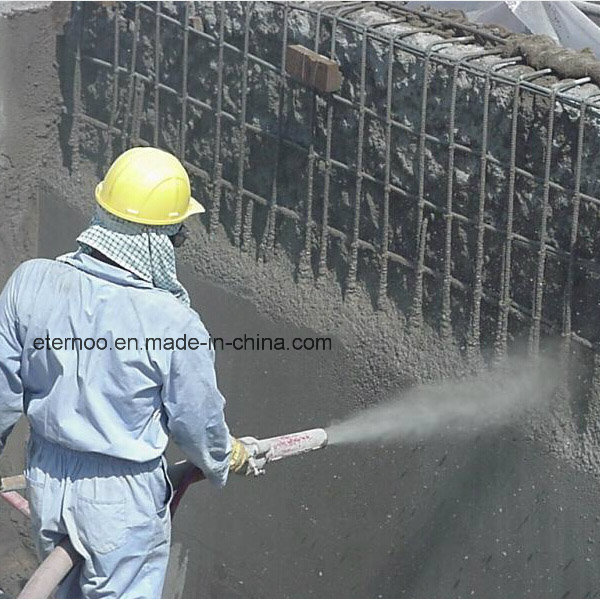

RPB7 wet-mix shotcrete  pump machine can be used for the conveying and spraying of wet-mix concrete.

Typical applications include permanent and temporary rock support in tunnels and mines, or wherever sprayed concrete is to be applied.  It can also be used for pumping, grouting, concrete repair work, artificial soil seeding, mortar spraying, and refractory material spraying.

Being a piston pump, it provides much more versatility than a rotor/stator pump of a similar capacity, in both mix types and potential conveying distances.  Pumping of thick and plastic concrete also poses no problem, as the concrete is delivered up to 67bar.

Features

1.     Thick flow conveying method with hand-spraying make the concrete spraying is even, steady with less air consumption comparing to thin flow conveying method.
2.      RPB7 is a high efficiency machine with long conveying distance, horizontal 120m and vertical 50m.
3.     PLC standard electrical system controls provide fool-proof operation
4.     Soft-start protects electric system and motor.
5.     Two independent oil pressure circuits.  Main oil is supplied by a high-pressure, variable-flow, axial piston pump. A gear pump provides separate circuit for the dosing pump.
6.     A hand- wheel in dosing pump can adjust the emission of accelerating agent.
7.     Double piston pump with S-tube and change-over cylinders for a positive action.
8.     Self-sealing, high hardness sealing ring and plate.
9.     Automatically reversing pistons relieve the conveying system when blocked.
10.  Tough hopper with vibrator and grill designed for work with steel fibers.
11.  Centrally positioned lubrication point for easy service.
12.   Low weight is an advantage for transport.
13.  Compact design enables easy integration into any kind of carrier chassis



Technical Parameter
Parameter  ItemUnitValue
Outputm 3/h7
PressureMPa5
Horizontal delivery distancem120
Vertical delivery distancem50
Suitable concrete slumpcm6~18
Hopper capacityL170
Loading Heightmm1050
Electric motorkW15
Max. grain size for sprayingmm15
Max. grain size for pumpingmm1/3 pipe ID(inner diameter)
Pipe and hose sizemm65/50
Drop out%<8
Air pressureMPa0.3
Consumption of airm3/min3
Dimensionsmm2530×1300×1300
Weightkg1200
