Product Specifications
| Prod Model: |
Wavecom Q2687 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shipping: |
DHL/EMS/UPS/FedEx/TNT |
| Warranty: |
1year |
| Type: |
External |
| Application: |
Household |
| Interface Type: |
RS232/422/485/Ttl |
| Transmission Rate: |
300-115200BPS |
Product Description
1 Main Feature

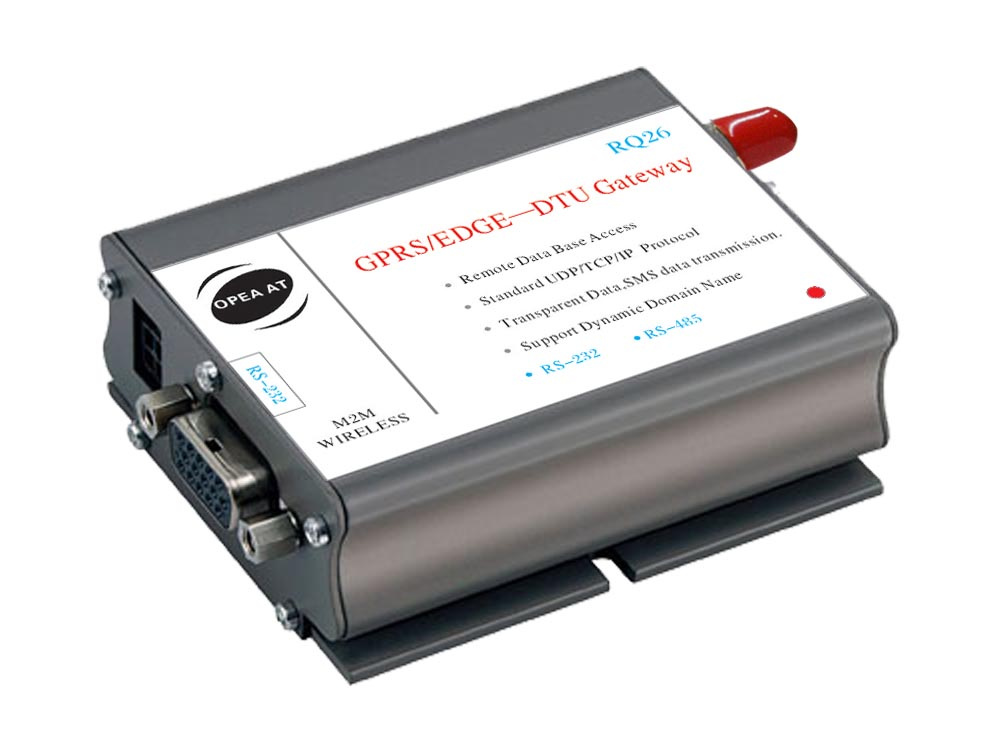

1) Based on wavecom Q2687 EDGE wireless module
2) Support GPRS Class12, 850/900/1800/1900MHz opptional
3) Standard PPP, TCP/IP, UDP/IP protocol
4) Provide DTU config tool
5) Easy for operation.
2. Network specifacation:
1) Transmission rate: 300BPS-115200BPS
2) Modulation Mold: GPRS-GMSK
3) Frequency Band interval: 200kHz
4) Coding scheme: CS1-CS4
5) Compliant with SMG31bis techonical standard
6) Automatic dialup modem
7) RS232/422/485/TTL interface,
8) Industral design, need all kinds of bad environmental requirement
9) Industral device, wide-range working voltage, avert opposite connection design
10) Embedded Multi-work operation seystem
11) Independent developed DDP protocol, garantee data route work smoothly
3. Config Tool for DTU
(DTU Tool can be downloaded for evaluation~! )
4. Function Features
Network
Quad-band GSM/GPRS850/900/1800/1900MHz
Function
Data transmission, always online, auto redail up, remote wakeup or reboot via phone
Power
Supply voltage range 5 - 25VDC(9V suggest)
Firmware
Support Firmware update for better quality
Dimension
Dimensions: 58 mm x 32 mm x 3.9 mm
Weight: 11.6 g
Mounting: 4 Holes
Shell
Steel shell: Good electromagnetic shield and, heat radiate performance
Environment
Storage Temperature: -40 ~ 85° C
Working Temperature: -30 ~ 75° C
Humidity: 95% (non-condensing)
5. Wavecom Q2687 EDGE specifications:
AirPrime Q2687
with an extended temperature range of -40° C to +85° C, the Q2687 intelligent embedded module offers a wide range of interfaces including USB, UART, SPI and a parallel data bus, as well as data bearers up to EDGE. Certified for use in the North American market.
Q2687 EDGE
Air Interface
EDGE GPRS GSM
Frequency Bands
EDGE/GPRS/GSM 850/900/1800/1900
Approvals
R&TTE, CE, GCF, FCC, PTCRB, China RTE AT&T
Alarm Power
17uA
Standby and Idle Power
2.5mA
GSM GPRS Max Power
400mA
CPU Processor Performance
ARM946/DSP
CPU Core Frequency Performance
26-104MHz
CPU User MIPS Available Performance
Up to 88MIPS
CPU IO Voltage Performance
1V8-2V8
CPU Analog Audio Performance
2x speaker out, 2x micro in
DTMF
Yes
UART
2
USB
USB 2.0 full speed
Interrupts Pins
2
Flash LED Output
1
PWM Buzzer
1
Keyboard Interface
5x5
SIM Interface
1.8V/3V
Antenna Diversity
No
Location Solution
XM0110 GPS Module and Location Plug-in
Embedded SIM
Yes
TCP/IP
TCP/UDP/FTP/HTTP/SMTP/POP3/SNMP/SSL
Control Options
AT commands - C language - Lua script
Device Dimensions
32x40x4mm
Operational Temperature
-40° C to +85° C
6. Application field:
1) Water, gas and oil flow metering
2) Data Monitor and Control
3) CCTV, DVR monitor application
4) AMR (automatic meter reading)
5) Power station monitoring and control
6) Remote POS (point of sale) terminals, ATM machines
7) Traffic signals monitor and control
8) Fleet management
9) Power distribution network supervision
10) Central heating system supervision
11) Weather station data transmission
12) Hydrologic data acquisition
13) Vending machine
14) Traffic info guidance
15) Parking meter and Taxi Monitor
16) Telecom equipment supervision (Mobile base station, microwave or optical relay station)
