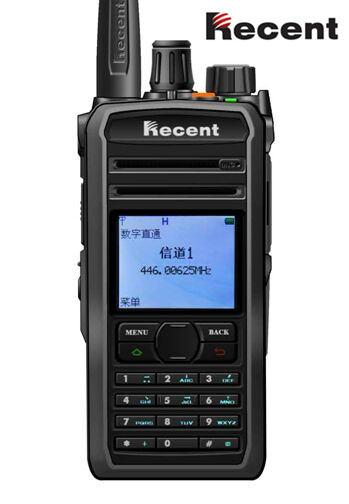

RS-619d Dpmr Digital Two Way Radio Handheld Radio

Name: RS-619d Dpmr Digital Two Way Radio Handheld Radio
Brand: china-manufacturer-directory.com
SKU: 761252295
Availability: InStock
Rating: 5 (58 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	RS-619D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RF Power VHF:5W/1W; UHF:4W/1W:	Channel Capacity 256
Battery Pack 1800mAh:	Dimensions 60mm135mm 36mm
Weight 262g(with Belt Clip And Antenna):	Channel Spacing 12.5kHz(Digital)/ 25kHz(Analog)
Application:	Military
Certification:	FCC
Standard:	Standard
Screen:	With Screen
Wavelength And Frequency:	Frequency:136-174 MHz/400-470 MHz;446MHz

Product Description

Digital/Analog Modes
6.25KHz Channel Spacing
Chinese/English Menu Display
Multi-call Modes
Remote Kill
SMS Function
Emergency Alarm Function
Call Recording and Playback (Optional)
GPS RX Positioning (Optional)
Scan Function
Tone Tail Elimination
HIgh/Low Power Selective
Call Digital Encryption Function

General Specification
Frequency Range	136-174 MHz; 400-470 MHz	446MHz
Channel Spacing	12.5KHz(Digital)/ 25KHz(Analog)	6.25KHz(Digital)/12.5KHz(Analog)
Channel Capacity	256
Operating Voltage	DC7.4V±15%
Operating Temperature	-20ºC~ +60ºC
Battery Pack	1800mAh
RF Power	VHF:5W/1W; UHF:4W/1W
Frequency Modulation	4FSK(Digital); 11KΦF3E/16KΦF3E(Analog)
4FSK Modulation Accuracy	≤5%
Adjacent Channel Power	≥70dB @ 25KHz; ≥60dB @ 12.5KHz; ≥60dB @ 6.25KHz;
Adjacent Channel Selectivity	≥70dB @ 25KHz; ≥60dB @ 12.5KHz; ≥50dB @ 6.25KHz;
Digital Sensitivity	-110dBm (BER ≤1%)
Dimensions(W×H×D)	60mm × 135mm × 36mm
Weight	262g(With Belt Clip and Antenna)

Quanzhou Risen Electronic Co., Ltd is a leading supplier specialzing in the R&D, production, and distribution for wireless communication equipment, targeting at global market, providing professional and quality products and service.

The company has been dedicated in the solutions for two-way radio terminals and professional wireless communication systems whose products and solutions widely used for emergency communication, managing and routine in the fields like industry and commerce, forestry, transportation and marine fishery etc.
