Product Specifications
| Prod Model: |
S3121 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Signshine |
| Product Status: |
Stock |
| Customized: |
Yes |
| Package: |
Yes |
| Module: |
Industrial GPRS Module |
| Frenquency: |
Quad Band 800/900/1800/1900MHz(Optional) |
| Housing/IP Grade: |
Metal/IP 41 |
| Product Dimension: |
81X55X20 Mm |
| Certificate: |
CE FCC ISO9001:2008 |
| Type: |
External |
| Interface Type: |
RS-232 |
| Transmission Rate: |
128Kbps |
| Application: |
GSM GPRS Anti Thief Bulgar Fire Alarm |
Product Description

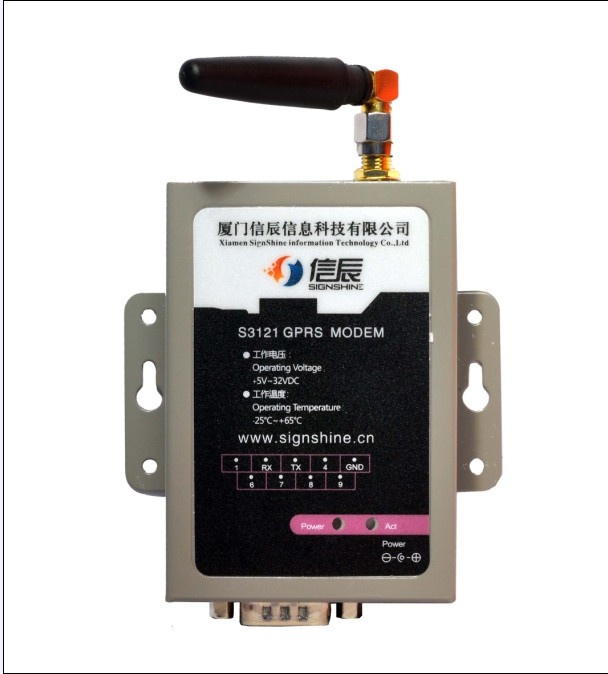

Signshine S3121 GPRS Serial GSM Modem SMS is a kind of cellular terminal device with RS232 that provides SMS, dial-up and CSD function by public GPRS network.
GPRS/GSM RS232 GSM Serial Modem adopts high-powered industrial cellular module and supports
RS232 port that can conveniently connect one device to a cellular network, allowing
You to connect to your existing serial device.
GPRS GSM RS232 Serial SMS Modem has been widely used in M2M/SCADA field, such as power
Automation, transportation, financial service terminal, factory automation, water, oil&gas,
Large machine maintenance, environment, building automation, outdoor digital signage ect.
Industrial Design
1. Industrial high-powered cellular module
2. Strengthened PCB which follows the principle of 20H and 3W, and adopts health benefits material to ensure the product stability
3. Industrial grade rigorous screened components
4. Industrial power adapter, wide voltage power supply design, power range DC7V~DC32V,
Reverse-voltage and overvoltage protection
5. Stability and Reliability
6. GPRS SMS Modem supports serial port I/O reset, offer DLL with control functions for I/O reset.
7. SIM/UIM port: 15KV ESD protection
8. RS232: 15KV ESD protection
9. Housing: Iron, providing IP41 protection, radiation protection, anti-interference, lightning protection design, special for
10. Outdoor harsh environmental application
11. All modules of GPRS SMS Modem RS232 are certified by CGD/CE/FCC certificate
EMC&EMI outstanding performance, passed 3000V electrical shock test&EMC test
High Performance
1. Support to send and receive Chinese, English, number and SMS alarm
2. Support APN and VPDN
3. Offer VB/VC/C#/DEPHI DLL for test, secondary development
4. Support to send bulk SMS
5. Support standard AT command
6. Support WINDOW/LINUX ect
Easy to Use
1. Offer the software to send and receive bulk SMS
2. Offer Center software based on C, VC, VB, DEPHI language
|
Item |
Content |
|
Serial Port |
1 RS232 port
Data bits: 7, 8
Stop bits: 1, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
Flow control:None\RTS/CTS hardware flow control or XON/XOFF software flow control |
|
Indicator |
POWER,ACT and Online |
|
Antenna |
Standard SMA female interface, 50 ohm, lighting protection(optional) |
|
SIM/UIM |
Standard user card interface, support 1.8V/3V/5V SIM/UIM card, 15KV ESD protection |
|
Voice |
Standard Earphone and Microphone port(Need software matched) |
|
Power |
Standard 3-PIN power jack, reverse-voltage and over voltage protection |
|
Item |
Content |
|
Cellular Module |
Industrial cellular module |
|
Standard and Band |
EGSM900/GSM1800MHz , GSM800/900/1800/1900MHz(optional)
Compliant to GSM phase 2/2+,
GPRS multi-slot class 10 ,class 12 (optional) |
|
Coding scheme |
CS1~CS4 |
|
Bandwidth |
Theory:171.2Kb/s;Actual:100Kbits>X>20Kbits/s |
|
TX power |
GSM850/900:<33dBm;GSM1800/1900:<30dBm |
|
RX sensitivity |
<-107dBm |
|
Function |
Data, SMS |
|
Item |
Content |
|
Housing |
iron, IP41 protection, radiation protection, anti-interference, lightning protection design |
|
Product Dimensions |
81x55x20 mm |
|
Package Dimensions |
298x226x60mm |
|
Weight |
0.41kg |
|
Item |
Content |
|
Power Range |
DC 7~32V |
|
Standard Power |
DC 9V/500mA |
|
Communication Current |
Average:90mA@+9VDC;Peak:1.0A@+9VDC |
|
Standby Current |
Average:<15mA@+9VDC |
|
Item |
Content |
|
Operating Temperature |
-25 ºC ~+65ºC |
|
Extended Operating Temperature |
-35 ºC~+75ºC |
|
Storage Temperature |
-40ºC~+85ºC |
|
Relative Humidity |
95%(Non-condensing) |
