Product Specifications
| Prod Model: |
m1306 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module: |
Wavecom Q2403/2406 |
| Casing: |
Metal |
| GSM Frequency: |
900/1800MHz |
| Support: |
SMS MMS TCP/IP |
| Function: |
SMS/MMS/Voice /Data Transmission |
| Package Size: |
17*21*7cm |
| SMS Sending: |
600 SMS Per Hour |
| Interface: |
RS232,USB Optional |
| Gross Weight: |
0.5kg/Box |
| Transmission Channel: |
Wireless Modem |
| Signal Type: |
Baseband Modem |
| Clip Function: |
Hard Modem |
| Type: |
External |
| Interface Type: |
RS-232 |
| Transmission Rate: |
14.4Kbps |
| Application: |
Household |
| Transport Protocols: |
Data Compression Protocols |
Product Description

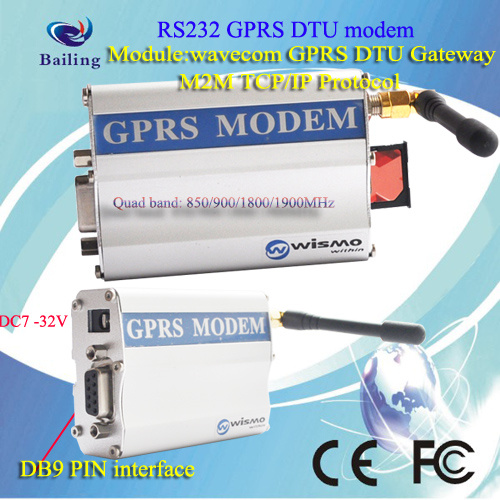

Gsm modem M1306B wavecom Q2403A/B /Q2406 GSM 900/1800mhz
Technical Specification
Product performance:
Dual-band GSM modem (EGSM900/1800MHz ), applied to the data, fax, voice and messaging applications, has been certified by all of its design and development of the ETSI GSM Phase2 + standard (General Telephone)
Output Power:
Class4(2W@900MHz)
Class1(1W@1800/1900MHz)
Input voltage:
5V-32V
Input current:
5mA standby, 140 mA @ 12V calls in the state GSM900MHz
5mA standby, 100 mA @ 12V calls in the state GSM1800/1900MHz
Temperature Range:
-20 ° C - +55 ° C working state
-25 ° C - +70 ° C storaging state
Product Size:
98× 54× 25mm
Product Weight:
130g
Function
- Voice function call emergency telephone
Voice Codec: Full-speed, full-speed and semi-enhanced rate (FR / EFR / HR)
DTMF functions (DTMF)
- Data / fax function Non-synchronous data circuit Transparent and non-transparent to the highest standards 14400 bits/s
The third category automatically fax (Class1 and Class2)
MNP2, V42bis
- Short message service text and PDU peer-to-peer (MT / MO) district Broadcast
Interface
- RS-232 connections through a small mouth and Sub-D15 connector plugs audio
Interface support:
- AT command used for the remote control (GSM07.07 and 07.05)
- Link bit rate from 300 to 115, 200 bits / s
- Automatic bit rate (300 to 38, 400 bits / s)
- - Through micro - FIT4 Plug power connector
- - SMA Antenna Interface
- - Down the SIM card memory
Packing List
-Modem
- Power Line
- For data and automatically connect to the Y-line (optional)
-Antenna
- Positioning Slot
- Warranty and after-sales service
One year warranty and lifelong maintenance
In the warranty period, all because of the quality of products has caused the damage or failure of equipment, suppliers responsible for the free repair or replace a new equipment to you
|
Product performance: |
Dual-band GSM modem (EGSM900/1800MHz), applied to the data, fax, voice and messaging applications,
has been certified by all of its design and development of the ETSI
GSM Phase2 + standard (General Telephone) |
|
Output Power: |
Class4(2W@900MHz)
Class1(1W@1800/1900MHz) |
|
Input voltage: |
5V-32V |
|
Input current: |
5mA standby, 140 mA @ 12V calls in the state GSM900MHz
5mA standby, 100 mA @ 12V calls in the state GSM1800/1900MHz |
|
Temperature Range: |
-20 C - +55 C working state
-25 C - +70 C storaging state |
|
Product Size: |
193×115×130mm |
|
Product Weight: |
0.5kg |
