Product Specifications
| Prod Model: |
M1306b |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shipping: |
DHL/EMS/UPS/FedEx/TNT |
| Size: |
75*54*25 |
| Warranty: |
1year |
| Type: |
External |
| Interface Type: |
RS-232 |
| Transmission Rate: |
512Kbps |
| Application: |
Household |
Product Description

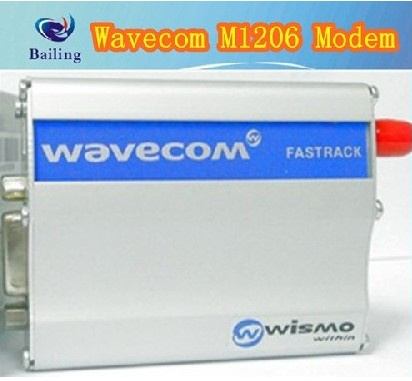

Dual-band GSM external modem
EGSM900/1800MHz or EGSM900/1900MHz
Small size and aluminum shell shock
Install and us, connect Internet instantly
Has been through all the technical standards certification
Voice, messaging, fax and data transmission of GSM Phase2 +
Designed for a specific application of the AT command control system
Technical Specification
Product performance: Dual-band GSM modem (EGSM900/1800MHz or EGSM900/1900MHz), applied to the data, fax, voice and messaging applications, has been certified by all of its design and development of the ETSI GSM Phase2 + standard (General Telephone)
Output Power: Class4(2W@900MHz)
Class1(1W@1800/1900MHz)
Input voltage: 5V-32V
Input current: 5mA standby, 140 mA @ 12V calls in the state GSM900MHz
5mA standby, 100 mA @ 12V calls in the state GSM1800/1900MHz
Temperature Range: -20 - +55 working state
-25 - +70 storaging state
Product Size: 98× 54× 25mm
Product Weight: 130g
Function
- Voice function call emergency telephone
Voice Codec: Full-speed, full-speed and semi-enhanced rate (FR / EFR / HR)
DTMF functions (DTMF)
- Data / fax function Non-synchronous data circuit Transparent and non-transparent to the highest standards 14400 bits/s
The third category automatically fax (Class1 and Class2)
MNP2, V42bis
- Short message service text and PDU peer-to-peer (MT / MO) district Broadcast
Interface
- RS-232 connections through a small mouth and Sub-D15 connector plugs audio
Interface support:
- AT command used for the remote control (GSM07.07 and 07.05)
- Link bit rate from 300 to 115, 200 bits / s
- Automatic bit rate (300 to 38, 400 bits / s)
- Through micro - FIT4 Plug power connector
- SMA Antenna Interface
- Down the SIM card memory
Packing List
- Modem
- Power Line
- For data and automatically connect to the Y-line (optional)
- Antenna
- Positioning Slot
- Warranty and after-sales service
One year warranty and lifelong maintenance
