Zhangzhou Yi Chen Trading Co., Ltd. >> RS485, RS232 7 Inch Embedded Computer, Window CE 5.0 OS

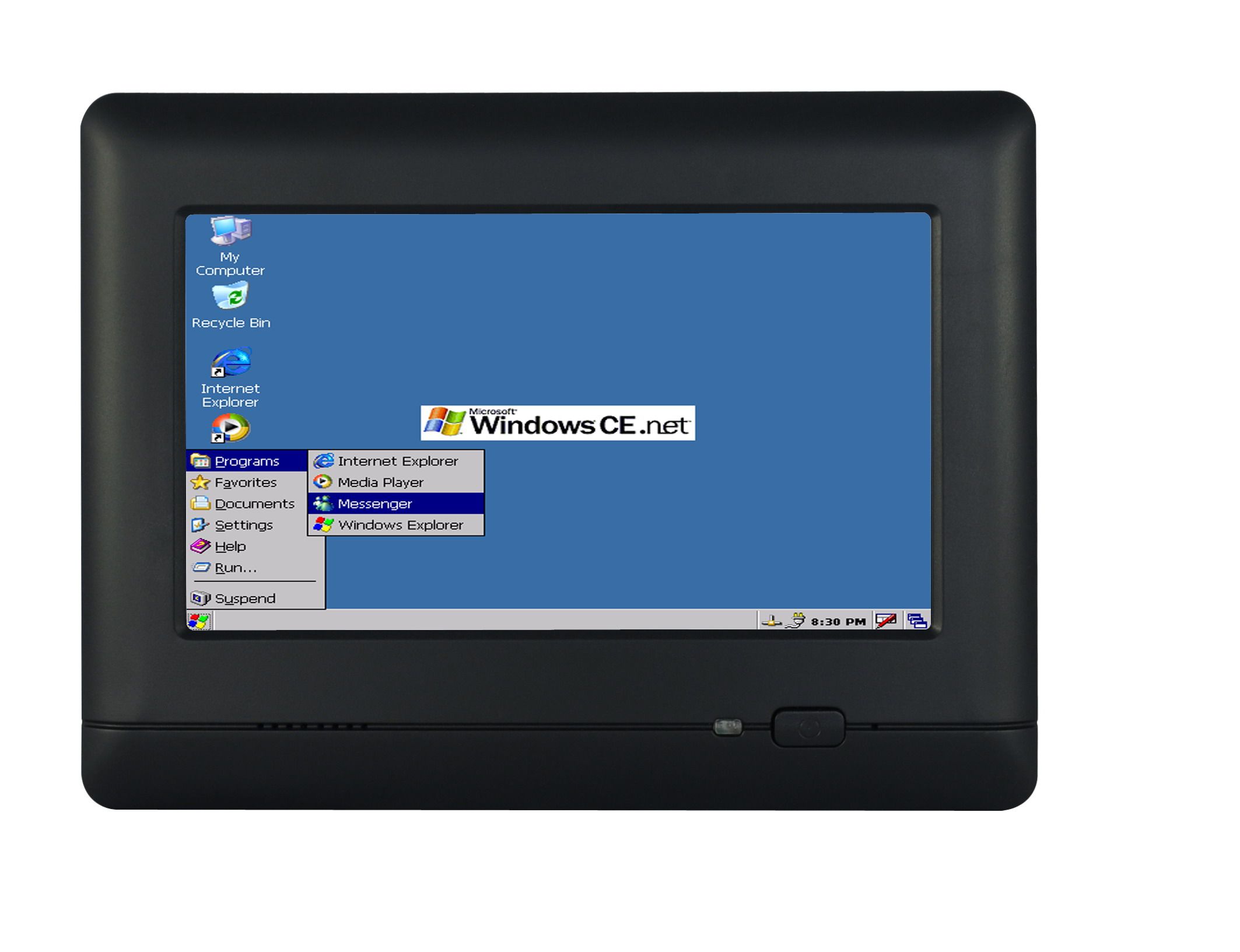

RS485, RS232 7 Inch Embedded Computer, Window CE 5.0 OS

Name: RS485, RS232 7 Inch Embedded Computer, Window CE 5.0 OS
Brand: China-Manufacturer-Directory.com
SKU: 680104872
Availability: InStock
Rating: 4.3 (64 reviews)

Supplier:	Zhangzhou Yi Chen Trading Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	EXW,others

Product Specifications

Prod Model:	W7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resolution:	7 Inch, 800x480
CPU:	Samsung S3c2416, 533MHz
Nand Flash:	2GB
ROM:	128MB DDR2
SD RAM:	128MB
DC Input:	DC9-24V
Audio Output:	1W
Power Consumption:	8W
Support Interfaces:	RS232, RS485, SD Card Slot, Ethernet, USB Host 1.1
WiFi:	Builti-in
Type:	Embedded Systems
Processor Type:	Samsung
Certification:	CCC

Product Description

RS485, RS232 7 Inch Embedded Computer,

Window CE 5.0 OS
Applications:

Multifunction Human Machine Interface, Service Terminals in hotels, hospital and stores, Industrial Machines Maintain Monitoring, Video Conferencing Systems, Dinner Ordering Systems, Automation system, Data Terminal.

Main Features:

1. CPU: Samsung S3C2416 533MHz CPU, 128M SD RAM, 128 M DDR2 ROM, 2G Flash ROM.
2. WIN CE 5.0 OS, Net Framework 3.5, Support Visual Basic, EVC.
3. Support 1W Speakers, Support Keyboard and Mouse.
4. Interfaces: USB Host 1.1 X 3, Mini USB X 1, RS232 X 2, RS 485 X 2, Earphone Jack X 1, SD Card slot X 1.
5. Built in WiFi, Bluetooth, Rechargeable Battery (Optional ).
6.9-24V DC Input

Accessories:
Touch pen X 1
USB connection line X 1
Driver disk X 1
Screw & Iron sheet: 4 pieces X 2
Operating user's manualx 1

Optional:
802.11 b/g Wi-Fi (built-in)
2, 000mA battery (built-in)
Power switch cable
VESA 75mm rail slot

Description	RS485, RS232 7 Inch Embedded Computer with Window CE 5.0 OS
Model No.	W7
Panel	7" color TFT LCD Digital Panel, 4-wire Resistive touch panel
Pixels	800×480pixels
Brightness	250 cd/m 2
DC input	9V-24V
Audio output	1W
Power consumption	8W
Support interfaces	RS232 x 1/RS485 x 1 or RS232 x 2 SD card (Max to 4G)
Processor CPU	Samsung s3c2416 533MHZ
Memory	128MB flash,128MB Dynamic random access memory
Unit size	200×150×50 mm
Unit weight	546g (without battery) / 610g (with battery)
CPU	Samsung s3c2416 533MHZ
NAND flash	2GB
ROM	128MB DDR2
SDRAM	128MB
Wired network interface/Ethernet	YES
USB HOST1.1	3
MINI USB interface	1
RS232 port	2
RS485 port	2
Audio output earphone block	1
Bluetooth	built-in(optional)
WIFI	built-in(optional)
SD Card slot	1(Max to 4GB)
