Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
High-Performance Low-Pressure Spray Equipment |
| Certification: |
ISO |
| Method Type: |
Manual |
| Application: |
Plastic Spraying Equipment |
Product Description

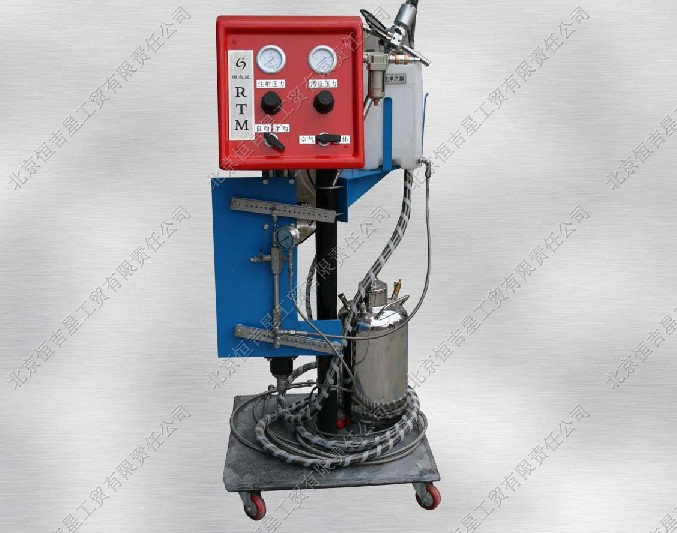

This machine is mainly used in producing FRP products as well as other plastic products through injection process. Engineered for low-pressure injection of polyester, vinyl ester resins etc with their catalyst, it is particularly well-suited for the resin transfer molding or other similar process.
Main application:
Automotive parts / Wind blades / Sanitary ware
Consumer products / Marine and watercraft.
Advantages:
1. Allows for large volume injection at low pressure, benefit for the mould stabilization.
2. Allows resin and catalyst to cycle to the dispense head and back to the containers unmixed, yields reducing material waste.
3. Allows for definite adjustment of catalyst percentage, ensures the parts cured at desired rate.
4. Light weight, compact, easy operation and maintenance.
Specification:
Catalyst range: 0.5%~4.5%
Air pressure: 0.6~0.8MPa
Power ratios: 11: 1
Injection pressure: Max. 3Mpa
Pump output: Max. 4.5kg/min
Mix mode: Inner mixed dispense head
Stainless Steel efficient maintenance cleaning system
Beijing King Hengjixing Composites Technology Co., Ltd, which is specialized in composites mould development and production, possesses a professional R&D and manufacture team who has consolidated theoretical knowledge and comprehensive working experience. Equipped with advanced CNC center, King Hengjixing has capability to process large complex-shaped plug precisely. Being the professional composites mould manufacturer in China, Hengjixing has produced numerous composites moulds including wind blade mould, bumper mould, impeller mould etc., widely used in energy, auto, aviation, rail transportation, boatbuilding fields. In addition, targeting to facilitate the customers and realize the "one stop" service system, Hengjixing also self-develops and supplies various hand-operated tools and high performance equipments, such as spiral bristle rollers, MEKP dispenser, air-pressure wash bottle, wool roller, RTM dual-use machine, epoxy foaming machine, multi-component mixing machine and gelcoat spray gun and so on.
King Hengjixing is consistently sizing development opportunities in the dynamic Chinese composites market and making efforts to becoming the friendly partner for all your composites needs.
