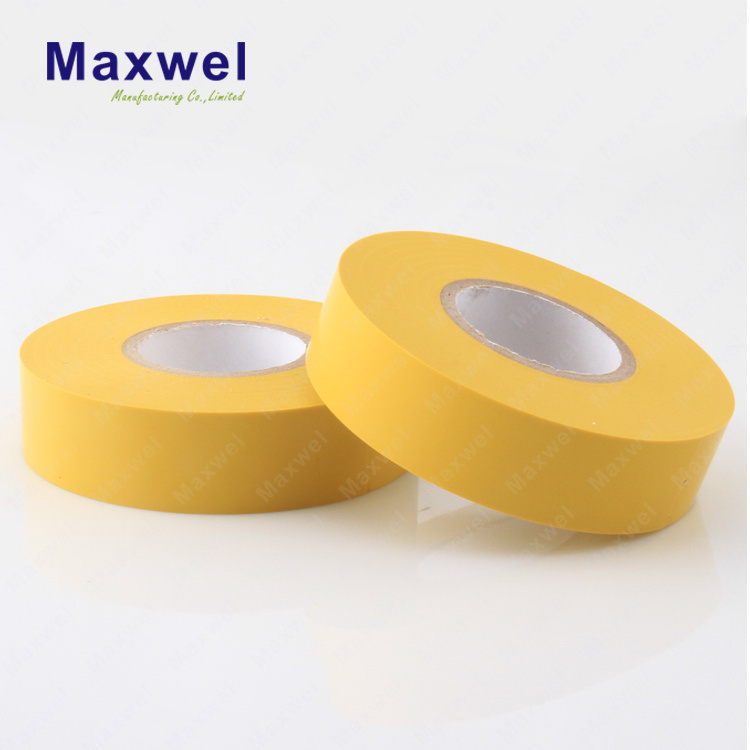

Rubber Based PVC Insulation Tape for Wire Harness

Product Specifications

Prod Model:	130D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Adhesive:	Rubber
Tensile Strength:	14-30 N/Cm
Thickness:	0.10mm-0.20mm
Common Size:	19mm*0.13*10yard
Feature:	Excellent Resistance to Voltage and Low Temperatur
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Thermal Rating:	Y 90
Maximum Voltage:	>100KV
Brand:	Maxwel
Material:	PVC
Color:	Any Color

Product Description

Self adhesive PVC Insulation electrical tape, PVC tape



Be up to UL and ROHS standard
Soft PVC Film,Strong rubber adhesive
Excellent insulation,High flame retardant
More than 10 years' experience in pvc tape manufacturing
Excellent resistance to voltage and low temperature
Used for insulation protection of electrical wires and harness in automobile industry

PVC adhesive tape is made by smearing rubber like pressure-sensitive adhesive on PVC film (its backing material )and mangling them ,it has the feathers of insulation ,fire-resistance, high-voltage- resistance and cold resistance. It can be used in many electronic spare parts ,automobile wires, winding wires and insulation protection.


Feature:
Excellent insulation
Good flame retardant
Excellent resistance to voltage and low temperature


Specification:
Size: 19mm X 9.14m
Log Roll: 1250mm width, length can be cut as customers' request.
Thickness: 0.13-0.2mm
Colour: Black, red, blue, grey, yellow, etc( any color can be requested)
Adhesive: 1.5(N/cm)
Tensile: 25(N/cm)
Elongation: 200%
Temperature: 80
Voltage break dowm: ≥ 40° C



Application: Used for wrapping electrical wires and cables etc.
Self adhesive PVC Insulating electrical tape, PVC tape


Code	Backing	Adhesive	Thickness  (mm)	Adhesion  (N/cm)	Tensile  (N/cm)	Elongation  (%)	Temperature  ( º C )	Voltage  breakdown(kv/mm)	Features  &   application
100D	PVC	rubber	0.1	1.5	14	160	80	≥ 40	Used  for  wrapping  electric  wires  and  cables  etc.
110D	PVC	rubber	0.11	1.5	15	160	80	≥ 40
130D	PVC	rubber	0.13	1.5	17	160	80	≥ 40
150D	PVC	rubber	0.15	1.5	22	200	80	≥ 40
165D	PVC	rubber	0.165	1.5	25	200	80	≥ 40	Be  up  to  the  UL  standard,   used  for  wrapping  electric  wires  and  cables  etc.
180D	PVC	rubber	0.18	1.5	28	200	80	≥ 40
190D	PVC	rubber	0.19	1.5	28	200	80	≥ 40
200D	PVC	rubber	0.2	1.5	30	220	80	≥ 40
100Z	PVC	rubber	0.1	1.5	14	160	80	≥ 40	Flame  retardant,   used  for  wrapping  electric  wires,   automotive  wire  harness  and  cables  ect.
110Z	PVC	rubber	0.11	1.5	15	160	80	≥ 40
130Z	PVC	rubber	0.13	1.5	17	160	80	≥ 40
150Z	PVC	rubber	0.15	1.5	22	200	80	≥ 40
165Z	PVC	rubber	0.165	1.5	25	200	80	≥ 40	Be  up  to  the  UL  standard,   flame  retardant,   used  for  wrapping  electric  wires,   automotive  wires  harness  and  cables  etc.
180Z	PVC	rubber	0.18	1.5	28	200	80	≥ 40
190Z	PVC	rubber	0.19	1.5	28	200	80	≥ 40
200Z	PVC	rubber	0.2	1.5	30	220	80	≥ 40
