Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Material Processing Machine |
Product Description

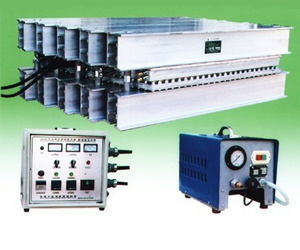

Rubber belt splicing vulcanizer
Auxiliary Machine for Conveyor Be:
Characteristic:
1. Machine Maximum size: From 650MM-4200MM.
2. Voltage: 380V 660V 480V 440V 415V 400V or 220V.
3. Vulcanizing temperature: 0-200º C adjustable randomly.
4. Time for temperature raise (from normal temperature to vulcanizing temperature) no more than 20 minutes.
5. Vulcanizing pressure: 1.8MPa (details refer to users' specifications and factory markings).
6. Time of heat preservation for vulcanizing could be adjusted according to thickness of the rubber belts.
7. Splicing length of rubber conveyor belt for vulcanizing jointing could be connected together by single or several pieces if necessary.
8. Make clear for model and specification of product and indicate width and tensile strength of rubber conveyor belt as well as tension in kilogram required for vulcanizing jointing when ordering products.
9. Users could order spare electric pumps additionally according to requirements.
Technical Parameters:
Item
Data
Model |
Size of heating board: L×W
( mm ) |
Width for jointed rubber belt
( mm ) |
Total power
( kw ) |
Max. weight of component
( kg ) |
Measurement: L×W×H
( mm ) |
Total weight
( kg ) |
Equipped device |
|
Manual pump |
Electric control box |
|
EPN-650 |
830×838 |
650 |
4 |
45.5 |
1142×830×750 |
445 |
1 |
1 |
|
EPN-800 |
830×1028 |
800 |
7.2 |
53.8 |
1320×830×750 |
550 |
1 |
1 |
|
EPN-1000 |
830×1188 |
1000 |
8.4 |
60.5 |
1440×830×750 |
625 |
1 |
1 |
|
EPN-1200 |
830×1458 |
1200 |
10.8 |
69.3 |
1680×830×750 |
795 |
1 |
1 |
|
EPN-1400 |
830×1638 |
1400 |
11.4 |
78.8 |
1950×830×750 |
911 |
1 |
1 |
|
EPN-1600 |
830×1808 |
1600 |
13.2 |
89.7 |
2060×830×980 |
1056 |
1 |
1 |
|
EPN-1800 |
830×2078 |
1800 |
15 |
98.3 |
2320×830×980 |
1198 |
1 |
1 |
|
EPN-2000 |
830×2328 |
2000 |
16.8 |
107.4 |
2582×830×980 |
1315 |
1 |
1 |
|
EPN-2200 |
830×2508 |
2200 |
18 |
130.5 |
2842×830×980 |
1422 |
1 |
1 |
|
EPN-2400 |
830×2638 |
2400 |
19.5 |
140 |
2950×830×980 |
1500 |
1 |
1 |
|
EPN-2600 |
830×2828 |
2600 |
21.8 |
150 |
3128×830×980 |
1628 |
1 |
1 |
Qingdao Shengxinze Industry&Trade Co., Ltd. is a comprehensive enterprise which engaged in manufacturing, import &export business fields, With almost 10 years experience in rubber machinery equipment export. We got the great prestige and the status in the profession. Relying on first-class service, strict management, our company established a long-term strategic cooperation relations with many rubber machinery factory through the way of joint venture. We has formed the seriation product mix, can undertake each kind of rubber production production line.
The main product of our company: Internal mixer, Two roll Mixing mill, extruding equipments, calendar equipments, Cutting machine, cooling equipment, Vulcanizing equipment, and Reclaimed rubber production line, rubber sheet extrusion line, Motorcycle&bicycle Tube &Tires production line, Conveyor Belt production line, V belt production line, rubber recap equipment and so on. Besides, we also can base on clients' requirement to manufacture and design non-standard rubber machinery.
With the rapid development of our company, Qingdao Sea King industrial Limited was founded. The company has established good commercial relationship with many companies in China by joint venture holding. Products include Rubber Machine, Raw Rubber Material Rubber Products and so on.
During these years, our company has good working relationship with many rubber machinery factory under our strong foundation, restricted management, good service and reputation. Our business scope and quantity are enhancing.
We strictly follow the policy"to satisfy our clients' need with quality work, advanced technology, optimized design solution and excellent service
