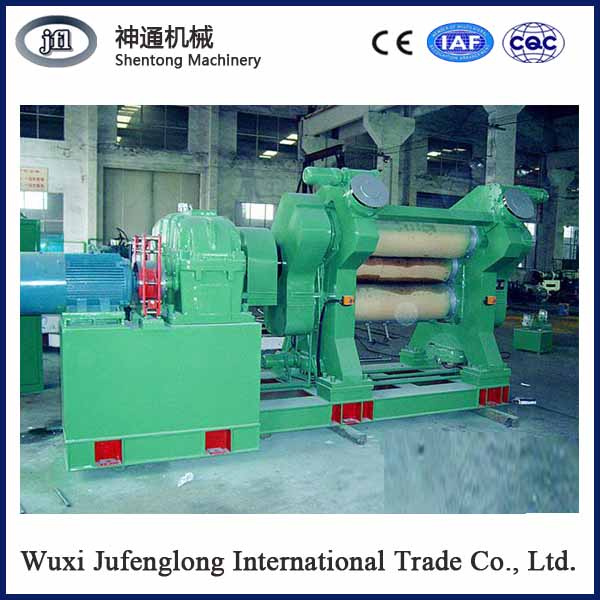

Rubber Caldending Machine for Rubber Sheet

Product Specifications

Prod Model:	XY-3F 360mm*1120mm
Roller Diameter (mm):	360mm
Working Surface Length (mm):	900~1200
Calendering Width(mm):	≤700~1000
Calendering Thickness (mm):	≥0.2
Overall Dimension(L*W*H)(mm):	4400/4700*1700*2100

Product Description

Application
1)This machine is mainly used for both rubber and plastic material's sheeting and rubber friction of textile or fabric.

2)Various kinds of rubber and plastic products, just as:
tyres, shoes, handbags, latex gloves,sport balls, mousepad,conveyor belts,rubber sheets & tiles, rubber band, seals,
insulation boards, PVC film,luggage fabric,etc.,
Features
1. The roller is made of chilled cast iron alloys,whose work surface has high hardness,wear-resistance and durable life.
    Steem,cooling water and heat-conducting oil can pass into the roller's cavity, so that the working temperature can be
    adjusted in order to meet the technological requiements.

2. Roll spacing can be adjusted both by manual or electric mode.

3.  Roller bearings lubricatting can adopt drier oil or dilute oil.
Technical Specification

Type	Roller diameter (mm)	Working surface length (mm)	Calendering width(mm)	Calendering thickness (mm)	Roller linear velocity (m/min)	Overall dimension(L*W*H)(mm)	Weight(t)
XY-3FΦ230*635	230	635~720	≤500~600	≥0.2	0.98~9.797	2650/2750*1200*1800	3
XY-3FΦ250*720	250	635~720	≤500~600	≥0.2	13.60	3300/3400*1200*1700	3
XY-3FΦ300*810	300	600~900	≤500~700	≥0.2	16.32	3400/3700*1280*2050	6
XY-3FΦ360*1120	360	900~1200	≤700~1000	≥0.2	22.61	4400/4700*1700*2100	11.6
XY-3FΦ400*1400	400	1200~1400	≤1000~1200	≥0.2	21.98	4900/5200*1860*2100	15
XY-3FΦ450*1500	450	1200~1500	≤1000~1300	≥0.2	24.98	6100/6400*2200*2900	20
XY-3FΦ560*1650	560	1530~1650	≤1300~1400	≥0.2	31.09	6800/6950*2600*3700	38
XY-3FΦ610*1730	610	1730	≤1500	≥0.2	30.10	7500*2700*3830	45
