Product Specifications
| Prod Model: |
XY-3I 1400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V |
| Weight: |
<50 Tons |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Rubber Calender |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Power: |
10~100kw |
| Using Life: |
≥15 Years |
| Warranty: |
2 Years |
| Reducer: |
Hardened Tooth Surface Gear |
| Roll Materual: |
Chilled Cast Alloy Iron |
| Certification: |
CE, ISO9001, SGS |
Product Description

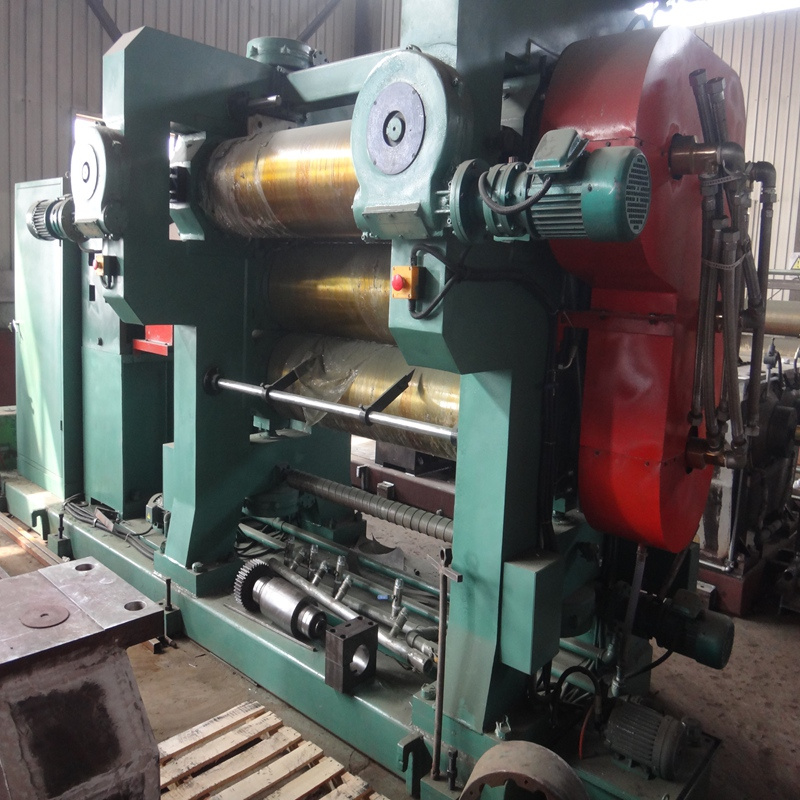

1. Rubber Caldnder, Three-roll rubber calender, Rubber machine
2. Version: XY1400
3. PLC control and very convenient to operate, thickness be well controlled.
4. Pedestal and roll is made of chilled cast iron, and no oil leakage, operate very convenniently.
5. The machine is chiefly applied to put rubber on cord fabric, canvas or other fabric, to rubberize fabrics, or to make rubber sheets.
6. Qingdao Guangyue Rubber machinery manufacting Co., Ltd is a the partner of Acooperating Unit Of China Science institute, and also we export rubber
Machines to all the world, such like south Asia, south America, Africa etc.
7. ISO 90001. Excellent design, good quanlity, competitive price and best sale service to win more and more clients, please contact us for the long-term business.
| version | XY-630 | XY1120 | XY-3I 1400 |
| Roll diameter (mm) | 230 | 360 | 400 |
| Roll working length(mm) | 630 | 1120 | 1400 |
| Roll ratio | 1: 1: 1 | 1: 1: 1 | 1: 1: 1 |
| Middle-roll linear speed(r/min) | 0.8-8 | 3-21.6 | 2.6-26 |
| Adjusting nip range (mm) | 0-7 | 0-10 | 0-10 |
| Min. Calendering product thickness(mm) | 0.2 | 0.2 | 0.2 |
| Calendering product width(mm) | 100-500 | 500-920 | 1200 |
| Motor power (KW) | 7.5 | 45 | 55 |
| Overal dimension(L/W/H) mm | 3168× 890× 1830 | 5550× 1640× 2120 | 6500× 1500× 2440 |
| Weight (t) | 2.6 | 11 | 22 |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
