Product Specifications
| Prod Model: |
XY-360*1120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
Chinese Motor or as Required |
| Roller: |
Chilled Cast Iron |
| Weight: |
12000kg |
| Color: |
by Customer's Requiement |
Product Description

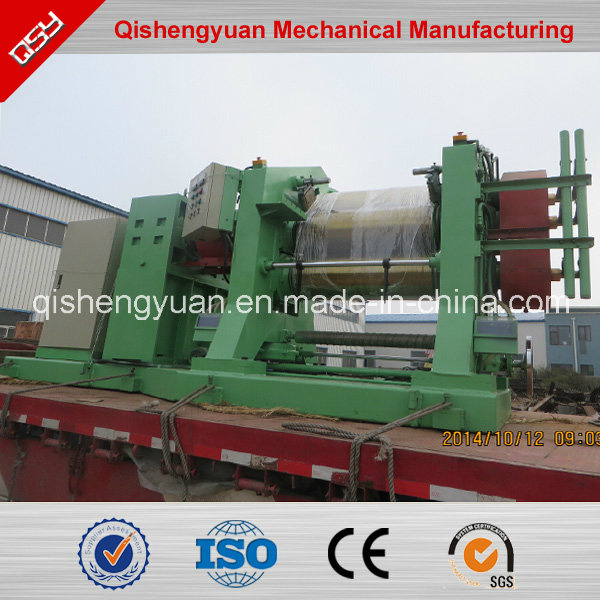

Three roll rubber calending machine
1.TECHNICAL SPECIFICATION
1. Rubber calender suitable for many rubber products, has high efficiency
2. Rubber calender can according to certain form arrangement, under certain temperature, extends the rubber or the plastic suppression certain thickness and the superficial shape film
3. Rubber calender may carries on to the textile fiber curtain canvas or the steel wire curtain cloth hangs the rubber the machinery.
4. The rubber calender have several type (two rolls/three roll/four rolls)you chose it according your need.
5.Rubber calender made by our factory is mainly used for calendaring rubber film, rubber tape,etc
6.Roller chilled alloy cast iron into a high quality steel production, chilled alloy cast iron rollers with sufficient hardness and wear resistance, and grinding smooth surface, high-quality steel roller can do the engraving of the desired pattern. Rollers can pass into the steam and cooling water, to regulate the temperature.
7.Manufacturer from China
2.the Main Parameters of rubber calender
| Type | Dia.x Length of roll (mm) | Linear speed of mid.roll (m/min) | Min thickness of calendered product (mm) | Width of calendered product(mm) | Motor Power(KW) | LxWxH(mm) | Weight (t) |
| XY-3I1120 | 360x1120 | 7.5-22.5 | ≥0.20 | 900 | 13.3/40 | 6050x1500x2240 | 11.6 |
| XY-3I1400 | 400x1400 | 8.8-26.39 | ≥0.20 | 1200 | 18.3/55 | 5600x1410x2385 | 15 |
| XY-4F1120 | 360x1120 | 7-21 | ≥0.20 | 900 | 18.3/55 | 6100x1660x2330 | 13 |
| XY-4F1400 | 400x1400 | 8.8-26.39 | ≥0.20 | 1200 | 25/75 | 6350x1850x2490 | 18 |
| XY-3L1120 | 360x1120 | 2-20 | ≥0.20 | 900 | 37 | 5500x1700x2300 | 11.7 |
| XY-5T635 | 240x635 | 9 | ≥0.50 | 550 | 7.5 | 1400x1000x1870 | 2 |
| XY-5T700 | 230x700 | 1.5-13 | ≥0.50 | 600 | 7.5 | 3600x1620x1030 | 3.5 |
| XY-4r1730 | 610x1730 | 5.4-54 | ≥0.15 | 1500 | 180 | 7050x4110x3750 | 64 |
| XY-4r1830 | 610x1830 | 6-60 | ≥0.10 | 1600 | 67x4 | 8250x3860x4640 | 68 |
3.Our QINGDAO QISHENGYUAN MECHANICAL MANUFACTURING company is a manufacturer of Rubber machines with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in Rubber & Plastic product industry and other industries.
Qingdao Qishengyuan Mechanical Manufacturing Co., Ltd. Was located in beautiful Jiaonan the west coast of Qingdao city Shandong province China. Our company is specialize in Rubber machinery production enterprise with R & D, design, production, sales and service.
The company covers an area of 12000 square meters, construction area of 8000 square meters, with self import and export rights, and has passed the ISO9001: 2008 & CE quality management system certification, Great Service is our mission. Hight Quality is our Obligation.
Our Company by virtue of years of production technology, We have rich experience technicians, We specialized produce Rubber two roll mixing mill machine, Rubber crusher mill machine, Rubber Kneader machine, rubber calender machine, rubber press vulcanizer machine, rubber refiner machine, waste tire recycling plants, Batch off cooling plants, rubber cutting machine, rubber strainer machine, Tires production line, Conveyor belt production line and so on.
We can design the machine as customer requires.
