Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd. >> Rubber Conveyor Belt Vulcanizing Press Machinery/ Plate Vulcanizer Machinery/Heavy Industry Rubber Mats Molding Press

Rubber Conveyor Belt Vulcanizing Press Machinery/ Plate Vulcanizer Machinery/Heavy Industry Rubber Mats Molding Press

Name: Rubber Conveyor Belt Vulcanizing Press Machinery/ Plate Vulcanizer Machinery/Heavy Industry Rubber Mats Molding Press
Brand: china-manufacturer-directory.com
SKU: 699073032
Availability: InStock
Rating: 4.4 (130 reviews)

Supplier:	Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd.
Price:	US $ 3800/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	XLB1500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Plate Temperature Tolerance:	±1°c
Type:	General Rubber Machinery
Type Of General Rubber Machinery:	Material Processing Machine
Type Of Tire Machinery:	Rubber Regeneration Machinery
Weight:	50~300 Tons
Power:	10~100kw
Voltage:	380V
Using Life:	≥15 Years
Warranty:	2 Years
Certification:	CE, ISO

Product Description

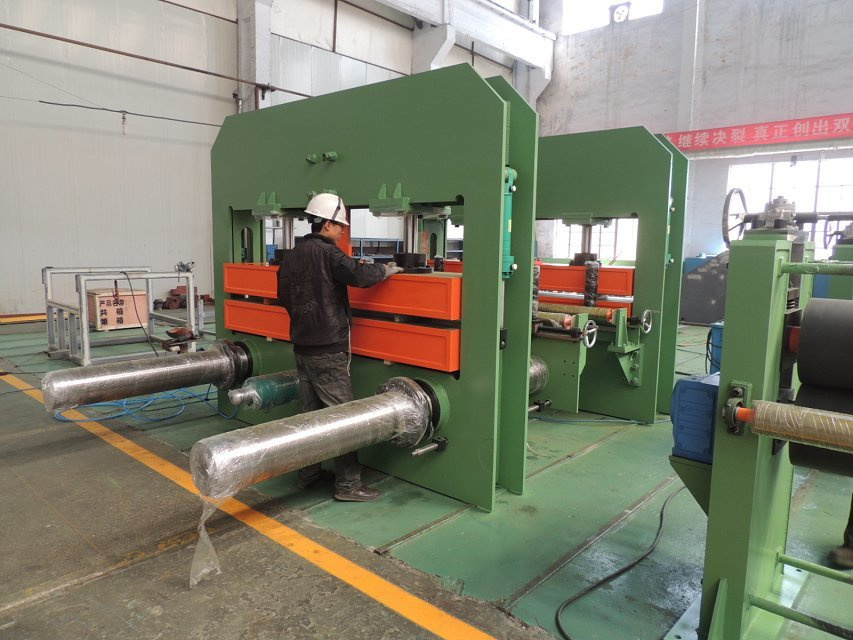

Rubber Conveyor Belt Vulcanizing Press Machinery/ Plate vulcanizer Machinery/Heavy Industry Rubber Mats Molding Press

1.Main use:

The Curing Press mainly works for the clampdown of rubber ,which can be used as normal hydraulic machine.

We have both column and frame structure

2.Advantage:

1 Simple and convenient structure ,flexible operation,commodious space.The cylinder and plunger are made up of high -quality materials.

2 Hydraulic station and electric cabinet are Located in both sides of the main engine.

3 Conveniently operations

4 Without oil spilling or off pressure.

5.Excellent reputation

6 CE Standards and ISO9001 SGS Certification

3.The parameter of the Rubber Vulcanizer

Parameters/ version	XLB3503502	XLB4004002	XLB5005002	XLB6006002/4	XLB7508502	XLB100010002
Mould closing force	0.25	0.5	0.8	1.0	1.6	2.5
Hot plate spacing	125	125	125	125	125	200
Hot plate layer	2	2	2	2/4	2/4	2/4
Plunger stroke	250	250	250	250/500	250	400
Heating way	Electricity/ steam	Electricity/ steam	Electricity/ steam	Electricity/ steam	Electricity/ Steam	Electricity/ steam
Main motor power	2.2	2.2	2.2	2.2	3	5.5
The thermal power	2.4kw/ board	3kw/ board	3kw/ board	7.5kw/ board	9kw/ board	10.8kw/ board
Size(lwh)	1450* 400* 1350	1600* 400* 1440	1450* 690* 1818	1880* 780* 1660	2100* 1010* 1900	2400* 960* 2500
Weight(kg)	1200	1500	1800	2500/ 3100	3560/ 4300	8300
Platen unit area pressure	2.04	3.13	2.52	2.78	2.51	2.5

The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.

The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.

The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
