Rubber Curing Machine

Name: Rubber Curing Machine
Brand: China-Manufacturer-Directory.com
SKU: 691152542
Availability: InStock
Rating: 4.7 (123 reviews)

Supplier:	Qingdao Desiree Group Rubber Machinery Co., Ltd.
Price:	US $ 34500-51000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	XLB-Q/D1200x1200x2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	General Rubber Machinery
Type Of General Rubber Machinery:	Material Processing Machine
Type Of Tire Machinery:	Rubber Regeneration Machinery
Name:	Rubber Curing Machine
Total Pressure:	3150kn
Max. Pressure Of Working Oil:	16mpa
Piston Diameter:	500mm
Max. Stroke Of Piston:	700mm
Hot Platen Size:	1200X1200mm
Working Layer Quantity:	2
Structure:	Frame Type

Product Description

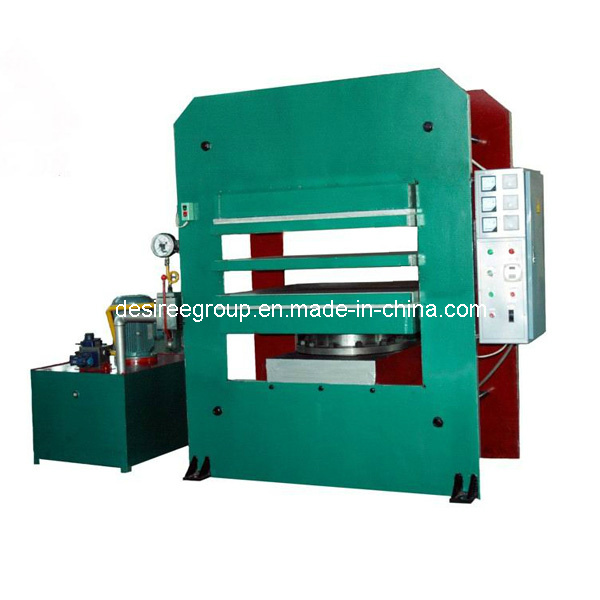

Rubber Curing Machine

Function:
1. Used for pressing all kinds of rubber model products, rubber plate, thermostting plastic.

2. Used as common hydraulic machine.

Features:
1. Mainly consists of main machine, hydraulic system and electrical system.

2. Frame type, with bottom hydraulic cylinder.

3. Adopts hydraulic drive, electric relay control, the curing time and pressure can be adjusted.

4. The oil tank was arranged at the left side, avoid of the influence of hot platen temperature.

5. Can provide hand control and electric control as customer's request.

6. There are two kinds of heating method for hot platen, steam heating and electric heating.

7. The hot platen clearance can be designed as per the size of product & mould.

Advantages:
1. Compact structure, less occupied area.
2. High working pressure
3. High producing efficiency
4. Easy to install. Operation is safe and reliable.

WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.

Our Services:
1. One year warranty.
2. Engineers available to service machinery overseas.
2. Any problem, we will give feedback within 24hours.

Welcome to make a field inspection of our factory.
We are always pleased to serve you at any time.

Item	Description	Remarks
Rubber Curing Machine Model No.	XLB-Q/D1200x1200x2
Total pressure(kN)	3150
Max. working pressure of working oil(MPa)	16
Max. stroke of piston(mm)	700	Can be designed as your requirement.
Piston diameter(mm)	500
Hot platen size(mm)	1200x1200
Layer quantity	2
Hot platen clearance (mm)	350	Can be designed as your requirement.
Heating temperature( °C)	140 to 160
Motor power(kW)	7.5
Steam pressure(MPa)	0.6 to 0.8	XLB-Q1200x1200x2 heated by steam
Electrical heating power of each hot platen(kW)	24.1	XLB-D1200x1200x2 heated by electric pipe
Total weight(kg)	8000
