Product Specifications
| Prod Model: |
X(S)N-75L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
2 Years |
| Voltage: |
380V |
| Weight: |
<50 tons |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Type Of Tire Machinery: |
Rubber Kneader Machine |
| Rubber Machine: |
Rubber Kneader |
Product Description

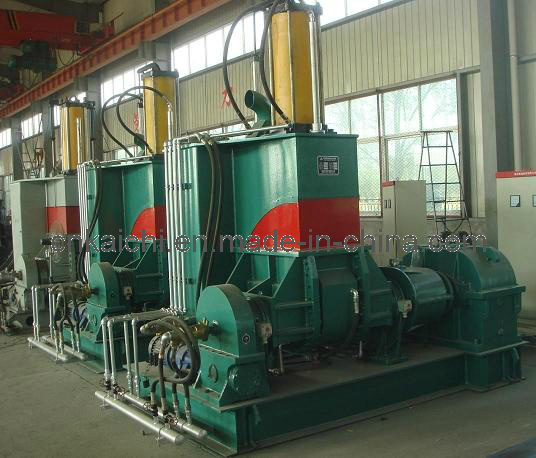

Rubber Dispersion kneader machine:
Application for Rubber, Plastic & Chemical Industry such as
EVA Rubber & TPR, Sole, Rubber Roller, Hoses Belts, Sponges, Vibration Insulator, Elastic Cord, Sealing Materials, Tire, Tapes, Master Batches, Pigment Ink, Automobile Electric Rubber Parts, Chemical Industry Compounds.
Features for our rubber dispersion kneader machine:
1). Rubber& plastic and other additives in a sealed pressurized and temperature controlled conditions, for rubber mixing or plastic mixing, with high efficiency, materials uniformly dispersed, high quality and no environment pollution. It is very easy to change batch materials, color, and clean.
2). Rotor shaft, and pressure lid and other parts are jacket structure. If the temperature is too high for materials, put through the cooling water for cooling. With electric heater at the bottom of mixing chamber to meet the technological requirements of plastic mixing. The materials processed feature good and stable quality.
3). Spiral angle and working length of the rotor convex edge are designed perfectly reasonable, to achieve the best materials dispersion effect. The rotor edge wing is wear-resistance hard cast alloy welded. All mixing chamber, rotor, and pressure lid that directly contact with the materials by polished after the hard chromium plating, wear-resistant and anti-corrosion.
4). Rear feeding(feeding from behind), mixing room turn forward 140 ° Discharge, it not only can facilitate the production process from top to bottom process connection, but also facilitate the observation and cleaning of mixing chamber and the rotors.
5). The junction place between upper side of mixing chamber and rack cantilever, using curved plate labyrinth pressure seal structure and effective dust seal. Embedded tungsten cobalt titanium alloy movable coil at the rotor end is contacting with the copper filled PTFE seal ring with the external compression seal structure without lubrication and wear, realizing perfect seal effect.
6). Tilt structure adopts high efficiency worm drive, featuring high carrying capacity, and can discharge without stopping, eliminating the frequent motor starting, prolonging its life.
7). Electric control system adopts PLC device, with complete and reliable control and monitoring, alarm functions and the necessary chain of protection.
8). The machine is durable, low failure rate, easy installation, operation and maintenance, also electricity saving.
|
Model |
X(S)N-3 |
X(S)N-10 |
X(S)N-35 |
X(S)N-55 |
X(S)N-75 |
X(S)N-110 |
|
Effective working capacity |
L
|
3
|
10
|
35
|
55
|
75
|
110
|
|
Main power |
KW |
5.5 |
15 |
55 |
75 |
110 |
160/200 |
Brake
Motor |
KW
|
0.37
|
0.75
|
2.2
|
3.0
|
4.0
|
5.5
|
Tilting
Angle |
|
110
|
110
|
140
|
140
|
140
|
140
|
|
Air compressor |
KW
|
1.5
|
2.2
|
5.5
|
7.5
|
10
|
10
|
Dust
Collector |
|
HLL-10
|
HLL-10
|
HLL-10
|
HLL-15
|
HLL-20
|
HHL-30
|
Heating
Steam |
MPA
|
0.5-0.8
|
0.5-0.8
|
0.5-0.8
|
0.5-0.8
|
0.5-0.8
|
0.5-0.8
|
Electric
Heater |
KW
|
4
|
6
|
12
|
15
|
18
|
24
|
Machine
Weight |
KG
|
1200
|
2300
|
6500
|
7800
|
10500
|
14500
|
Overall
Dimensions |
CM |
196x970x182 |
220x135x215 |
310x179
x271 |
342x214
X280 |
380x214
X318 |
440x276
X377 |
|
|
|
|
|
|
|
