Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Shoe Outsole, Shoe Material, Mat |
| Color: |
Brown, Red, Black, White and So on |
| Width: |
1000-1200mm |
| Length: |
1000-2300mm |
| MOQ: |
1 Cubic Meter |
| Tensile Strength: |
18mpa |
| Hardness: |
30-80shores |
| Elongation: |
400% |
| Material: |
Household Rubber |
| Shape: |
Sheet |
Product Description

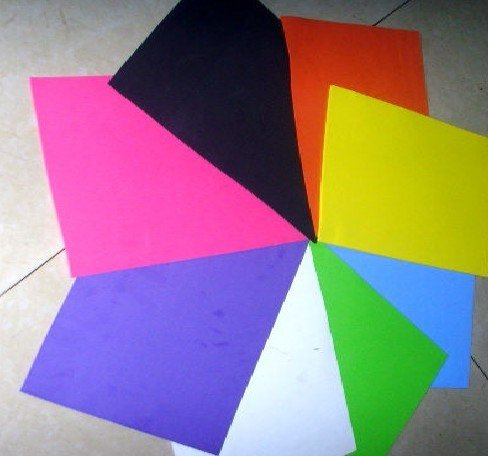

Rubber EVA
1)feature: Light, comfortable, good elasticity, water-proof, shock resistance and skid prevention. Could also offer antistatic insole sheet and EVA high foam adhesive.
2)application: Used for sport shoes insole, toys, beach sandals, slippers, sandals and luggage case, thermal-protection and so on.
3) supply different densities, hardness(the degree from 30 to 80), the different grade meet clients demands.
4) thickness: Customers requires are available
5)colour: Any general colours are available(black, white, gray more cheaper)
6)form/shape: Big sheet, blocks, roll, embossed/textured/designed, or even more smaller like A4 paper size.
7) Also supply different densities, hardness for application of floor mats, sports goods and sandals.
Various sizes, thickness and hardness are available. Customer's requirement is welcome.
Made with high quality rubber and inimitable technique, with good character of high temperature resistant, aging resistant, ozone resistantinsulation property, fuel oil resistance, lubes resistance. No smell and wear well. High compressibility and low compression set over a wide temperature range, and good acoustic and thermal insulation properties. Apply to -50 ~+200 centigrade protect and heat insulation for long term continuous use and -70~+260 centigrade for intermittent use on all kinds of machine.
Sepcifictions:
Material: 50% natural virgin rubber
Surface: Smooth
Tensile strength: 18Mpa
Hardness: 30-80 shore A
Elongation: 400%
Density: 1.8g/cm3
Thickness: 1-50mm
EVA rubber sheet is made of EVA blended with different type of natural rubber or synthetic rubber (i. e. IR, EPDM, BR, SBR, etc. ).
This series are available from very soft to very hard compound for many different applications such as insole, mouse pad, puzzle toy, light weight fabricated outsole, mats of fitness room floor protection, substitutes of blown SBR, thermoformed sports pads, animal mat, anti-fatigue working mat, MID-sole, and self-adhesive tape.
|
Compound |
Hardness/Durometer |
Hardness/Durometer |
Hardness/Durometer |
Density |
Density |
Application |
|
_ |
Shore A |
Asker C |
Shore 00 |
° g/cm³ |
PCF (lb/ft³ ) |
_ |
|
NDR/20 |
9-15 |
18-28 |
46-58 |
0.13-0.18 |
8.0-11.5 |
Golf mats, mouse pad, wrist rest |
|
RL/25 |
11-16 |
23-30 |
52-60 |
0.10-0.15 |
6.5-9.0 |
Thermoformed sports pads |
|
RL/35 |
16-21 |
30-38 |
61-70 |
0.14-0.18 |
8.5-11.5 |
Footbed, golf mats, knee pads, mouse pad, wrist rest, sport padding, water sports pads |
|
RL/45 |
22-28 |
40-48 |
73-79 |
0.19-0.24 |
11.5-14.5 |
Mid-soles, wedges |
|
RL/55 |
30-38 |
50-58 |
81-86 |
0.24-0.28 |
14.5-17.5 |
Sandals outsole |
|
RL4/18 |
7-12 |
15-23 |
40-53 |
0.10-0.14 |
6.5-9.0 |
mouse pad |
|
RL13/80 |
57-68 |
77-85 |
92-95 |
0.47-0.60 |
29.0-37.0 |
Outsole (sandal, woman' s casual, men' s casual, everyday), repair outsole |
|
RL201/40 |
20-27 |
36-45 |
- |
0.28-0.35 |
17.5-22.0 |
Die-ejection |
|
RL202/60 |
41-51 |
62-71 |
- |
0.53-0.63 |
31.0-39.5 |
Die-ejection |
|
RE4/30 |
15-22 |
28-38 |
- |
0.20-0.25 |
12.5-15.5 |
Anti fatigue |
