Product Specifications
| Prod Model: |
Movement 53-330mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Displacement: |
50mm-300mm |
Product Description

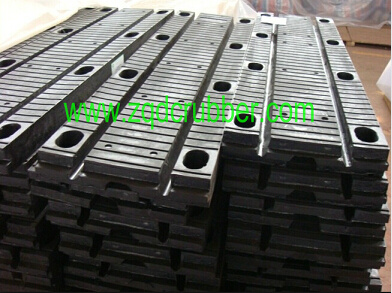

Description of Rubber Bridge Expansion Joint:
Rubber Bridge Expansion Joint system comprises of 8 NO. Standard models designed to accommodate movement up to 330mm by shear deformation of the elastomer between the steel components. Each model of our Rubber Bridge Expansion Joint incorporates steel angles designed to be bolted to the structural deck and a steel bridging plate system which spans the open joint gap. The elastomer case is highly resistant to oils, solvent spillage and the trafficked surface includes an anti-skid pattern for safety having a rubber to rubber coefficient of static friction of 0.69. Each model of our Rubber Bridge Expansion Joint is specifically designed to accommodate horizontal and skew movement and will also accommodate vertical movement due to rotation of up to 6mm.
Features of Rubber Bridge Expansion Joint:
As one of the company's main series of products, our rubber expansion joint stands most competitive position in the domestic & abroad markets of same industry by its convenient installation, stable running, waterproof, dustproof, little noise, light weight, and low cost and other features. Rubber Bridge Expansion Joint is the flexible transformation when using high elasticity to adapt the change of temperature. And our
Rubber Bridge Expansion Joint got good reputation of bridge engineering by its convenient installation, stable running, waterproof, dustproof, little noise, light weight, and low cost and other features.
Application of Rubber Bridge Expansion Joint:
Rubber Bridge Expansion Joint is used in Highway bridge decks, Service ramps, Multi- storey car parks and so on. Rubber Bridge Expansion Joint is used to prevent buildings or bridges appear some cracks because of climate change.
Construction programs of Rubber Bridge Expansion Joint:
(1) Set out and cut Rubber Bridge Expansion Joint.
(2) Excavate and clean the Rubber Bridge Expansion Joint area.
(3) Drill holes to locate the anchor bolts.
(4) Place the rebar mat and mold.
(5) Pour bottom concrete layer.
(6) Install comb-shaped steel plate.
(7) Pour side concrete.
(8) Maintenance the Rubber Bridge Expansion Joint.
Zaoqiang Dacheng Rubber, a manufacturing company built in the year 1996, Located in Northern of China. In 2005, Zaoqiang dacheng Rubber Company mergersed with Fezhed Rubber technology company and other construction products producing companies to become a strong grouped company, which takes important part in standards correcting and the construction manufacturing area in China and part of the company is listed in the year 2012.
Our main products include: Bridge and Road Construction products as various elastomeric bearings, bridge pot bearings, spherical bearings, bridge flexible equipment; Seismic isolation as lead rubber bearings, high damping rubber bearings, steel type seismic bearings, waterproofing products as various waterstops, etc. We also in the area of pipeline solution products manufacturing.
These products contain 10 series with over 200 species and more than 2, 000 specifications. We can offer high quality products, competitive price and timely service for every client. Our products are successively used by many famous companies, and they were exported to 18 countries, including Canada, German, USA, Russia and so on.
Guaranteeing the product quality is our company's basic principle, Our Belief is Work once, Trust all lives!
