Product Specifications
| Prod Model: |
XLB-550*550*4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| History: |
More Than 30 Years with Professional Technology |
| Colour: |
According to Your Need |
| Item: |
Rubber Machine |
| Name: |

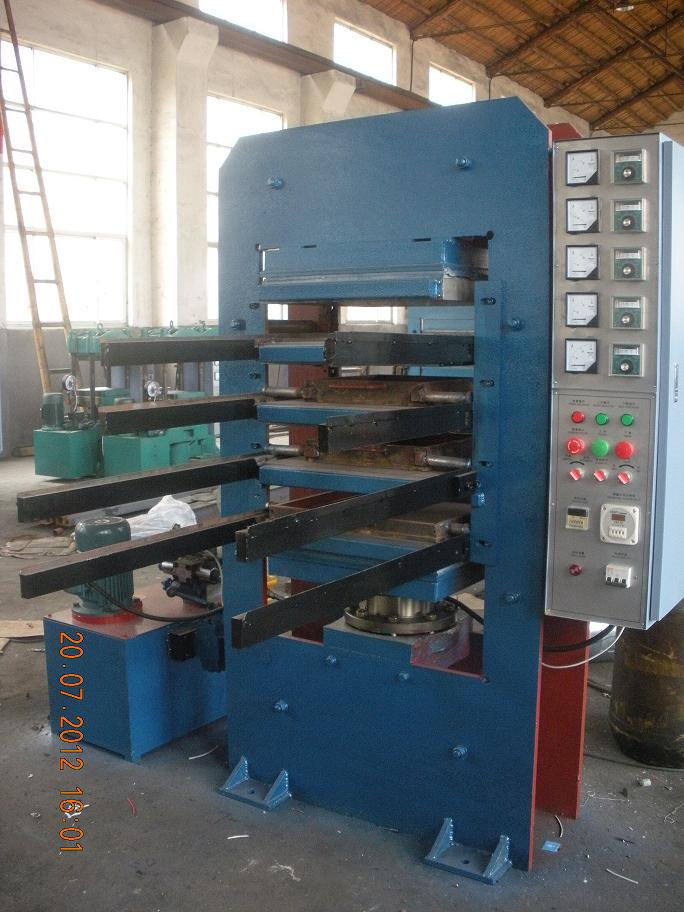

Rubber Vulcanizing Machine |
| Quality: |
Best Quality |
| Use: |
Vulcaniziation of The Rubber Product |
| After-Sale Sevice: |
We Can Send Engineer There to Install or Fix |
| Type: |
Vulcanizer |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Certification: |
CE, ISO, SGS |
Product Description
Rubber Powder -- Rubber Mixer(Mixing Rubber powder+glue+pigment) -- Rubber Tile Machine(including the tile moulds) -- Rubber Tile & Mat.
Description:
1. This kind of vulcanizing machine is multi-functional beacuse it is suitable to be used for top opening double or triple mold plates.
2. High force employs dual pressure, and each oil system is designed seperately which
Makes it stable, quiet and low frequency of malfunction when working. Two sides can be operated simultaneously.
3. The electric system adopt PLC programming control, which is easy to be operated.
4. Automatic in/out mold and ejector device, low labor strength.
5. Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption.
| Item | XLB-D550*550*4 vulcanizing machine |
| Total pressure | MN | 0.50 (50 tons) |
| Hot plate size | MM | 550*550*60 |
| Plate clearance | MM | 150 |
| Working layer | layer | 4 |
| Hot plate quantity | Piece | 5 |
| Piston stroke | MM | 400 |
| Piston quantity | Set | 1 |
| Piston diameter | MM | 200 |
| Structure mode |
| Four columns |
| Operation system |
| Manual operation/auto operation |
| Working pressure | Mpa | 1.65 (16.5kg/cm2) |
| Motor power | KW | 2.2 |
Note:
1-The vulcanizing machine is mainly use to produce rubber tile, Each working layer equipped with two sets moulds, it can take turn vulcanization. Thereby improve production efficiency.
2-the machine is including 4 sets moulds(as photos) |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
