Rubber Kneader, Dispersion Kneader, Internal Mixer Kneader
Product Specifications
| Prod Model: |
X(S)M-55L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Mixing Roll |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Weight: |
<50 tons |
| Power: |
10~100KW |
| Voltage: |
380V |
| Using Life: |
≥15 Years |
| Warranty: |
2 Years |
Product Description

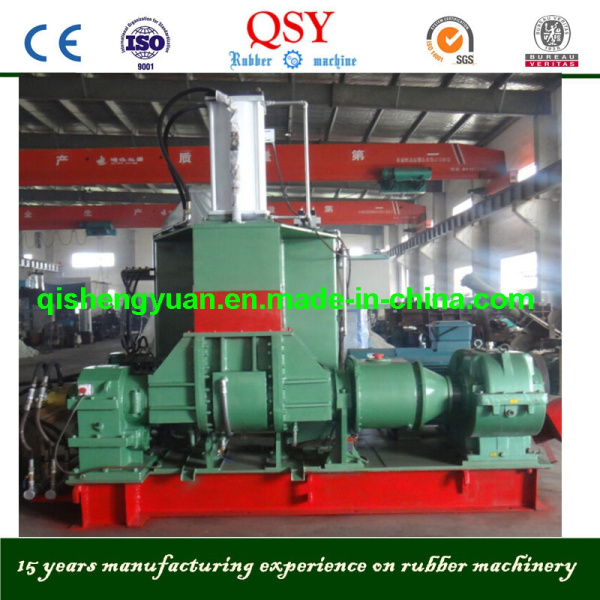

Rubber Kneader, Dispersion Kneader, Internal Mixer Kneader
Product Description
Rubber Kneader, Dispersion Kneader, Kneader MachineProducts Description:1. Mixing chamberThe rubber kneader mixing chamber is high-quality steel plate welded. It composed of the body and two side panels. Using of jacket structure for cooling or heating used. Inner face chrome-plated.2 Thermal ResistanceRubber Kneader mixing chamber underside central with a plug-in thermal resistance, with PLC, Detection, control, is mixing temperature.3 RotorThe rubber kneader rotor is similar with banbury rotor. Rotor axis central have hole communicate with the wing, forming of cooling and heating channels. Arises peak and the end surface welded wear-resistant carbide, through hard chrome plating after polishing.4 Heating and cooling systemsA common set of piping systems, cooling water or heating steam in three columns to pass into the rotor wing, mixing chamber and ram room, circulating cooling or heating for the Materials.5 Dust stopUsing rotor shaft and the end surface three defense lines floating oil film sealing, Durable and completely solve the problem of leaking powder.6 Main transmission systemsIncluding the main motor, reducer, the speed ratio gear box, two rotors is the opposite differential rotation speed.7 Gas control systemIncluding the PLC order control, two-way cylinder to drive the ram lift and down. When mixing overload, the ram automatically go up to protect motor.8 Electronic control systemThe rubber kneader use import PLC device, all imported electrical components or introduced technology products improve system reliability.Technical Parameters:| Item | Unit | X(S)N-3x32 | X(S)N-10x32 | X(S)N-20x32 | X(S)N-25x32 | X(S)N-35x30 | X(S)N-55x30 | X(S)N-75x30 | X(S)N-110x30 | X(S)N-150x30 | X(S)N-200x30 |
| Total Volume of Mixing Chamber | (L) | 8 | 25 | 45 | 55 | 75 | 125 | 170 | 250 | 325 | 440 |
| Working Volume of Mixing Chamber | (L) | 3 | 10 | 20 | 25 | 35 | 55 | 75 | 110 | 150 | 200 |
| Driving Motor Power | (KW) | 5.5 | 22 | 37 | 37 | 55 | 75 | 110 | 185 | 220 | 280 |
| Titling Motor Power | (KW) | 0.55 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 5.5 | 11 | 11 |
| Rotational Speed of The Rotor (front/rear) | (r/min) | 30/24.5 | 32/25 | 32/27 | 32/27 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
| Pressure of Compressed Air | (m³/min) | ≥0.3 | ≥0.5 | ≥0.7 | ≥0.7 | ≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | ≥2.0 | ≥4.0 |
| Pressure of Cooling Water (mixing rubber) | (MPa) | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 |
| Pressure of Heating Steam (plastic mixing) | (MPa) | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 |
Dimensions
(L x W x H) | (mm) | 2000x1000
x2220 | 2640x1650
x2350 | 2675x1650
x2560 | 2675x1650
x2560 | 3200x1900
x2950 | 3230x1927
x2958 | 3325x2615
x3150 | 4075x2712
x3580 | 4250x2750
x4106 | 4250x3400
x4215 |
In addition, our machineries have exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries.If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
Qingdao Qishengyuan Mechanical Manufacturing Co., Ltd. Was located in beautiful Jiaonan the west coast of Qingdao city Shandong province China. Our company is specialize in Rubber machinery production enterprise with R & D, design, production, sales and service.
The company covers an area of 12000 square meters, construction area of 8000 square meters, with self import and export rights, and has passed the ISO9001: 2008 & CE quality management system certification, Great Service is our mission. Hight Quality is our Obligation.
Our Company by virtue of years of production technology, We have rich experience technicians, We specialized produce Rubber two roll mixing mill machine, Rubber crusher mill machine, Rubber Kneader machine, rubber calender machine, rubber press vulcanizer machine, rubber refiner machine, waste tire recycling plants, Batch off cooling plants, rubber cutting machine, rubber strainer machine, Tires production line, Conveyor belt production line and so on.
We can design the machine as customer requires.
