Qingdao Green Rubber Machinery Co., Ltd. >> Rubber Machinery Vulcanizing Machine

Rubber Machinery Vulcanizing Machine

Name: Rubber Machinery Vulcanizing Machine
Brand: China-Manufacturer-Directory.com
SKU: 697483712
Availability: InStock
Rating: 4.6 (95 reviews)

Supplier:	Qingdao Green Rubber Machinery Co., Ltd.
Price:	US $ 4500-150000set
Min Order:	1set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	XLB-D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Production Rubber Products
Plunger:	Chilled Alloy Cast Iron
Pedestal:	Cast Iron, Section Steel H
Heating:	Electric, Steam, Oil
Press:	Hydraulic
Company:	More Than 30 Years Experience
Cerificate:	CE/ISO9001/SGS
Warranty Time:	One Year
Type:	General Rubber Machinery
Type Of General Rubber Machinery:	Material Processing Machine
Certification:	CE, ISO, SGS

Product Description

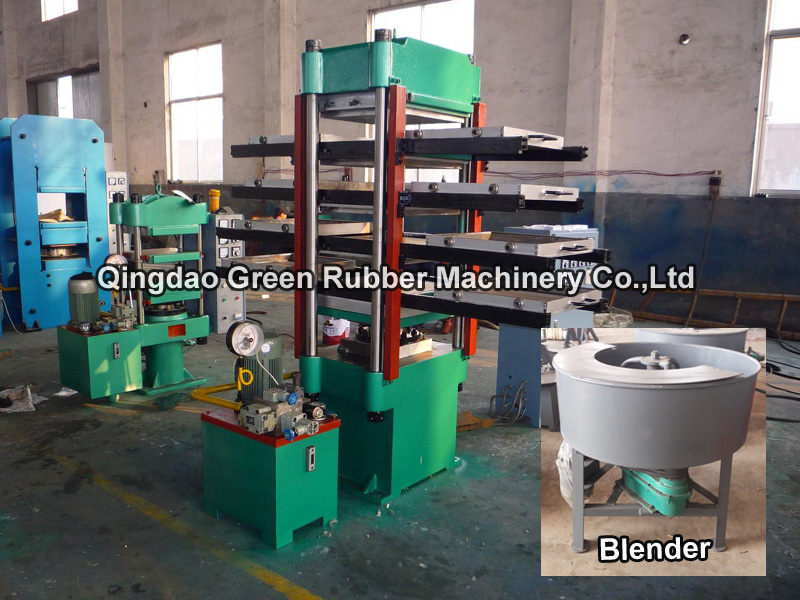

Rubber Floor Tile Vulcanizer Machine is The Main Machine Of Floor Tile Making Line

Features:

1. High speed open/close mold, high production efficiency, low mold-locking speed, protect mold.

2. Adopt new sealing material, excellent seal and long life.

3. Matching-advanced oil way reduces energy consumption.

4. Structure is simple; Application is wide and easy to be operated

The Detailed Parameter:

1. We usually design as clients' products and details request. Our machine is 4 working layers, 1 hour

Can made 8 pcs rubber floor.

We can also according your needs, to decide the working layers.

2. The machine is matched with manual push-out device.

3. We also can provide the different size of the molds, from 20mm to 75mm thickness.

4. Rubber mixer can also provided, if needed.

5. The press with 12 pcs molds and rubber mixer is only 8m3 of the flooring area, it can be LCL for loading, So the sea freight is very cheap.

6. We also can according to the customers' requirement, and design the non-standard type of rubber tile vulcanizing machine.

Main Working Process of Rubber Floor Tile Making Line
1. We need to let tire powder, pigment and adhesive uniform mixing together, by using mixer machine.
2. Put moulds on the floor tile vulcanizer machine.
3. Put the mixing material into floor tile moulds.
4. After about 7-15 minutes, you will get floor tiles with different pattern, size and shape according to your requirement.

Main parameters/Model	XLB--D/Q300x300x2	XLB--D/Q350x350x2	XLB--D/Q400x400x2	XLB--D/Q600x600x2
Nominal and mould force	0.25	0.25	0.5	1
Specification of hot plate	300x300	350x350	400X400	600X600
Number of working layer	2	2	2	2
Piston diameter	140	140	200	300
Max stroke of piston	250	250	250	250
Distance between hot plate	125	125	125	125
Unit area pressure of hot plate	3.5	2.04	3.1	2.78
Motor power	2.2	2.2	2.2	2.2
weight	1000	1000	1500	2700
Overall size	12005801200	12005801200	17806001300	204708101600
comment:we kan be individually customized according to customer requirements.

Qingdao Green Rubber Machinery Co., Ltd (Old name is Qingdao

China Rubber Machinery Factory) was established in 1968, one of a China professional manufacturer in rubber machine field with high-tech technology. We obtain ISO9001: 2008, CE and SGS certification. Our business spread all over the world, such as the United States, Germany, Brazil, Singapore, Malaysia, India, Russia etc.

To produce high quality and the most suitable machine for customers to use is our service aim.

Our company mainly producing: Waste tire recycling machine, rubber powder production line, reclaimed rubber production line, rubber vulcanizing machine, rubber plate vulcanizing machine, tire vulcanizing machine, rubber mixing mill, rubber extruder, rubber filter, rubber cutting machine, rubber sheet cooling line...

Our factory near by the Qingdao Port, so that can greatly lowering the logistics cost. Our company have technical cooperation with experienced engineers whom come from US and Germany. Constantly improve the technical level, make the products comply with international quality standards. All of our products are comply with international quality standards and are greatly appreciated in a variety of markets around the world. We can designing and manufacturing all kinds of special rubber machinery equipment and non-standard rubber machinery equipment according to user requirements.

So that our high quality products and outstanding customer service, have gained a global sales network

Our well-equipped facilities and excellent quality control throughout all stages of production, enable us to guarantee total customer satisfaction.

1. Our machines all pass inspection load test operating before delivery.

2. We provide one year' S guarantee and once the equipment damage during this time we supply free of charge. In order to save maintenance time and reduce the production cost of our guests, you can contact our DCRC by email, MSN or Skype etc., and we will send professional technical personnel with English translator to you to solve equipment matters.

3. Our company have return visits regularly; Including equipment' S maintenance, troubleshooting and customer feedback.

4. Complete after-sales service

If you are interested in our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to establish successful business relationships with new clients around the world in the near future.
