Product Specifications
| Prod Model: |
ZLJ-800x830~ZLJ-2000x830 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
800X830mm~2000X830mm |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Weight: |
<50 tons |
| Power: |
10~100KW |
| Voltage: |
380V |
| Using Life: |
≥15 Years |
| Warranty: |
3 Years |
| Certification: |
CE, ISO |
Product Description
Model NO.:ZLJ-1600x830
Type:General Rubber Machinery
Type of General Rubber Machinery:Conveyor Belts Joint Vulcanizing Machine
Type of Tire Machinery:Rubber Regeneration Machinery
Certification:ISO
Rating Voltage (V):380V/660V
Power Frequency (Hz):50Hz
Motor Power (Kw):21.1
Applied Belt Width (Mm):1600
Export Markets:Global
Additional Info.
Trademark:SFC
Packing:Standard Export Packing
Standard:CE, ISO
Origin:China
HS Code:8477800000
Production Capacity:200 Sets/Year
Product Description

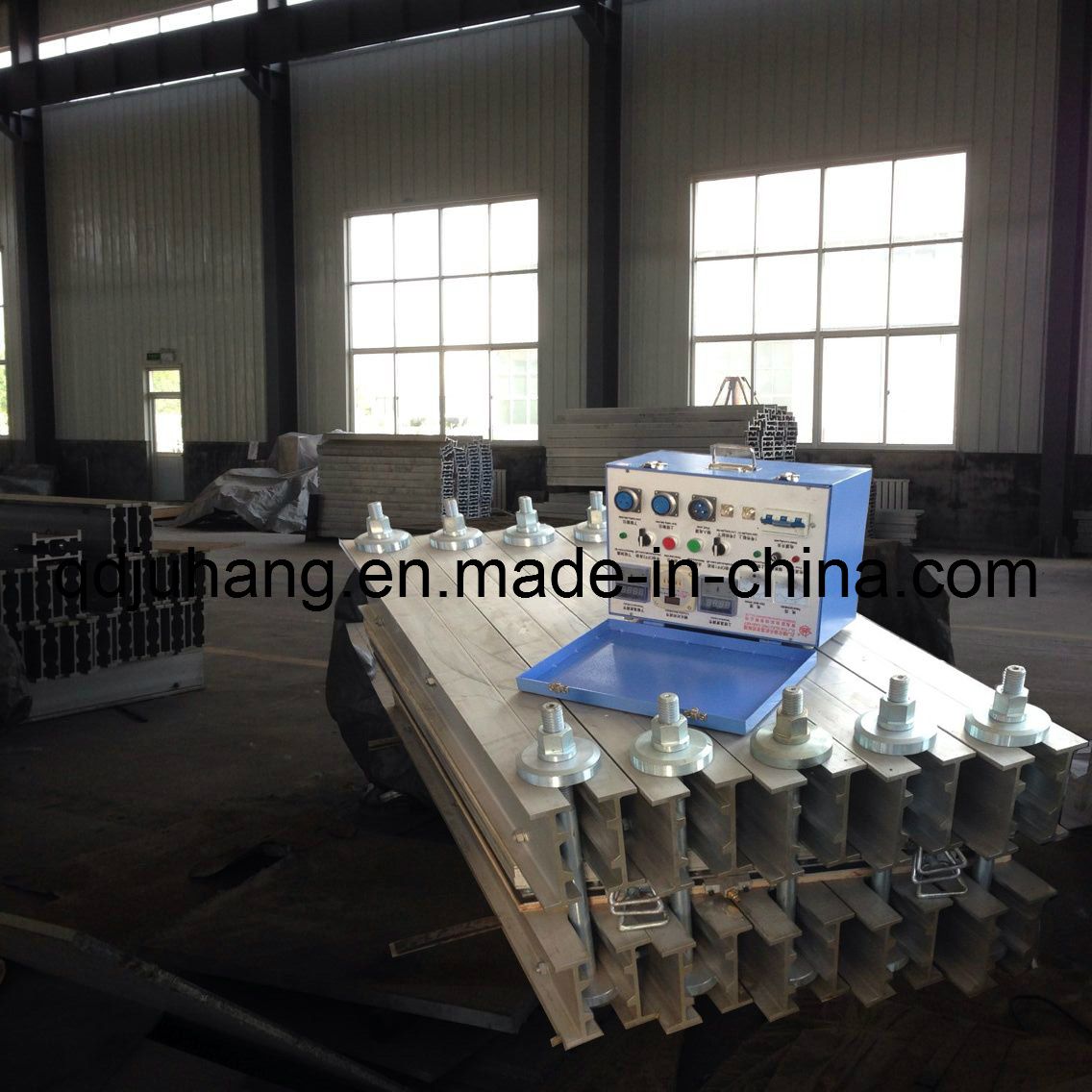

Conveyor Belts Joint Vulcanizing Machine, Conveyor Belts Amending Machine, Conveyor Belts Splicing Machine:
1. The rubber vulcanizing machine has light weight; About one person can move it. It consists of the following components: Rack / Pressure Bracket, fastening device, sizing block, screw, nut, gasket, high-pressure hose, hydraulic test pump, thermal baffle, on the heating plate, secondary cable, electric cabinet, cables, down the heating plate, Suppress water bag.
2. The material of main machine components made of aluminum alloy, light weight, easy installation and removal, easy to handle.
3. Suppress pressure water bladder (its function is increase pressure) technology has reached international advanced level, it has following characters:
(1)Light weight, it is the 1/4 weight of the ordinary.
(2)Large expansion amplitude.
(3)Uniform pressure and the pressure can reach 3.0MPa.
(4)No water leakage and long life.
|
No. |
SPEC |
Rating Voltage (V) |
Power Frequency (HZ) |
Motor Power (KW) |
Applied Belt Width (mm) |
|
1 |
ZLJ-650 |
380V/660V |
50HZ |
8.7 |
650 |
|
2 |
ZLJ-800 |
380V/660V |
50HZ |
10.6 |
800 |
|
3 |
ZLJ-1000 |
380V/660V |
50HZ |
13.5 |
1000 |
|
4 |
ZLJ-1200 |
380V/660V |
50HZ |
15.4 |
1200 |
|
5 |
ZLJ-1400 |
380V/660V |
50HZ |
18.2 |
1400 |
|
6 |
ZLJ-1600 |
380V/660V |
50HZ |
20.1 |
1600 |
|
7 |
ZLJ-1800 |
380V/660V |
50HZ |
22.1 |
1800 |
|
8 |
ZLJ-2000 |
380V/660V |
50HZ |
24.1 |
2000 |
|
9 |
ZLJ-2200 |
380V/660V |
50HZ |
27.1 |
2200 |
Qingdao Juhang Rubber Belt Co., Ltd. A joint-stock enterprise of Qingdao Juhang (Group) locates in Dacun Industrial Park, Jiaonan City Shandong Province China, is a big and famous manufacturer mainly producing conveyor belt.
With using of Chinese mineral industry university, Shandong science and technology university hundreds years of technology and production experience, we can provide high quality conveyor belt products such as steel cord conveyor belt, layered belt, tube conveyors and other hundreds of products, to meet domestic and international coal mines, metallurgy, terminals, power, building materials, chemical and food industries such as transport of materials requirements.
With the advanced Chinese conveyor belt industry's full-automatic rubber mixing center, and 10 high-performance intelligent large-scale curing production lines, our company's annual production capacity reaching 20 million square meters.
Fully equipped testing equipments and advanced detection method to testing from raw materials to semi-finished products till finished goods, can ensuring the quality stability for all users.
Juhang is committed to providing not only conveyor-belt products but also customers with timely and thoughtful professional services. It has a high-quality, high efficient service team to provide clients with selection from the reference to the installation, connection, maintenance of the entire process, all-aspect, all-day service.
With advanced quality and environmental management systems, Juhang has passed ISO9001, ISO14001 and ISO28001 certification.
Qingdao Juhang Machinery Co, . Ltd. Is professional company in producing vulcanization joint machine, vulcanization patching machine, mining explosion suppression vulcanization joint machine and etc. The technique strength is strong, product is well-found, examine means perfect, and it is the biggest production factory of conveyor belt joint machine. "JUHANG" vulcanization machine is famous trademark of China.
