Product Specifications
| Prod Model: |
XLB 600X600X2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Rubber Vulcanization |
| Heating Way: |
Oil, Electric, Steam |
| Temperature: |
Automatic Control |
| Pressure: |
Adjustable |
| Motor: |
Famous Brand and Long Life |
| After-Sale Service: |
Support |
| Operation: |
Manual or Automatic |
| Control System: |
PLC |
Product Description

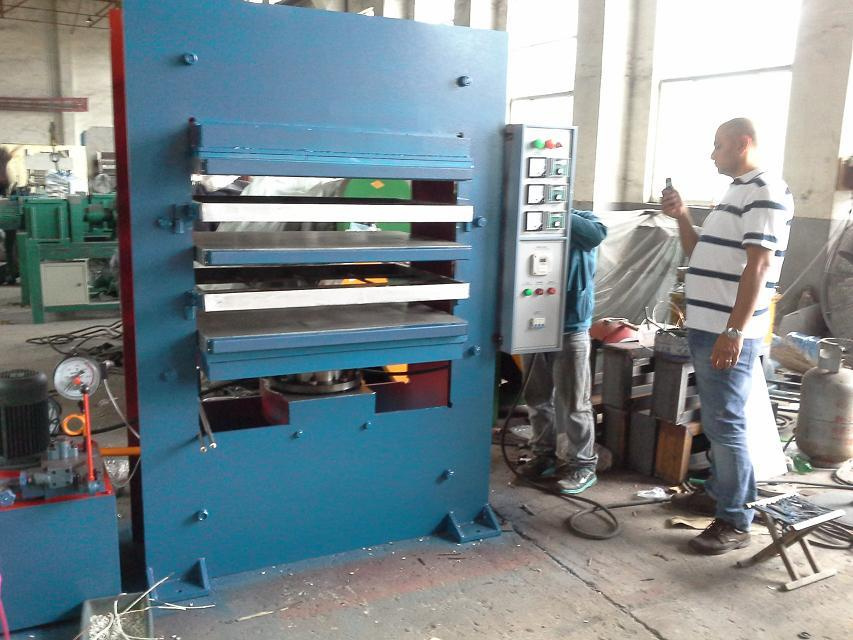

Rubber Mat/ Floor Tile Making Machine
Fully-automatic rubber vulcanizing machine / rubber vulcanizing press / plate vulcanizing press with best cylinders
The curing press mainly works for clampdown the rubber ,which can be used as normal hydraulic machine .
1.Material of steel plate:
We use hight quality carbon steel Q-235(produce by Jigang Group Co.,Ltd which is a famous company) ,more thicker than other supplier,after shot blasting ,smooth, it is strong enough than common steel
2.Weldment of frame : world technique
Welded together as a whole part,Stewing fire treatment after weldment.
(Carbon dioxide gas shielded welding,alloyed welding wire).
Submerged arc welding, VSR treatment after weldment.
3.Piston:
The material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable.
4.Heating way&precision temperature control:
Steam ,oil or Electric (We use high quality hot platen and heating pipe to keep heating stability and uniformity) range of temperature:0-300°C (can be adjustment if you need 400 °C ,we can do it )
Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C
Also we can produce the machine with water cooling system.
5.Hydraulic system: (PLC control)
The professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure.
We use OMRON,SIMENS CHNT , SCHNEIDER ect brand electric parts.
6.There are more advanced technical information as our core patents,and not showed in the description,please send email to us.
Parameters/version
|
XLB350*350*2 |
XLB400*400*2 |
XLB500*500*2 |
XLB600*600*2/4 |
XLB750*850*2 |
XLB1000*1000*2 |
Mould closing force |
0.25MN |
0.5MN |
0.8MN |
1.0MN |
1.6MN |
2.5MN |
Hot plate spacing |
125mm |
125mm |
125mm |
125mm |
125mm |
200mm |
Hot plate layer |
2 |
2 |
2 |
2/4 |
2 |
2 |
Plunger stroke |
250mm |
250mm |
250mm |
250/500mm |
250mm |
400mm |
Heating way |
Electricity/stream |
Electricity/stream |
Electricity/stream |
Electricity/stream |
Electricity/Stream |
Electricity/stream |
Main motor power |
2.2kw |
2.2kw |
2.2kw |
2.2kw |
3kw |
5.5kw |
The thermal power |
2.4kw/board |
3kw/board |
3kw |
7.5kw/board |
9kw/board |
10.8kw/board |
Size(L*W*H)mm |
1450*400*1350 |
1600*400*1440 |
1450*690*1818 |
1880*780*1660 |
2100*1010*1900 |
2400*960*2500 |
Weight(kg) |
1200 |
1500 |
1700 |
2500/3100 |
3560/4300 |
8300
|
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
