Product Specifications
| Prod Model: |
XK400B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V |
| Weight: |
<50 tons |
| Type Of General Rubber Machinery: |
Mixing Roll |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Certification: |
ISO, CE |
| Power: |
10~100KW |
| Using Life: |
≥15 Years |
| Customized: |
Customized |
| Mixing Tyle: |
Open Mixing |
| Type: |
General Rubber Machinery |
Product Description

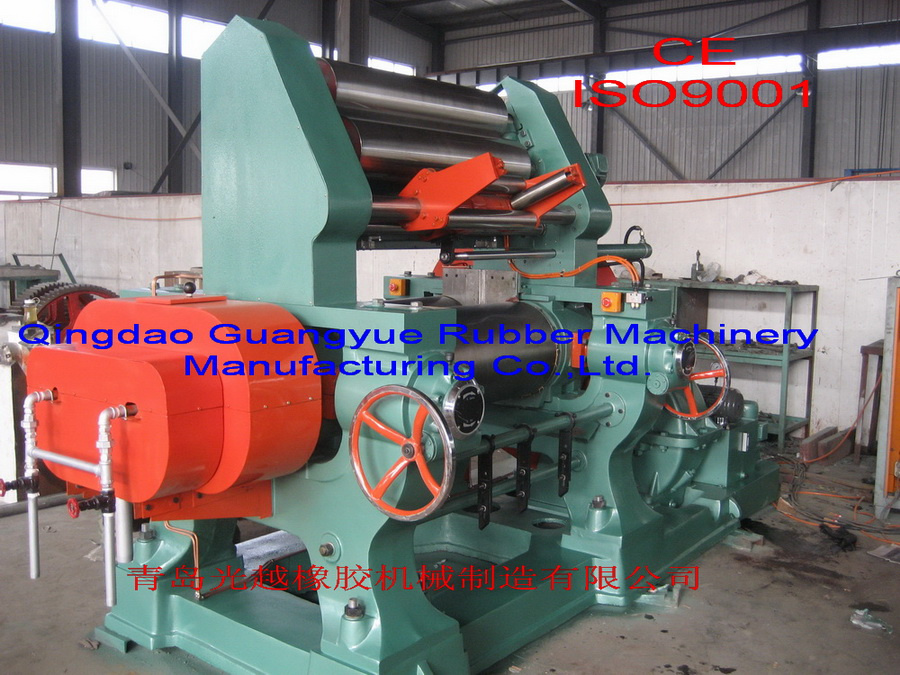

Rubber Mixing Mill - Version: XK400B
1- Name: Rubber mixer, Rubber mixing mill, rubber machine, Open rubber mixing mill, two roll mill
2- USE:
This machine is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing(plasticating), Raw Rubber and Compound mixing, rubber warm-up mixing and pressing sheet.
3- Main features:
A. The roll adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof. The internal cavity is processed to make temperature well proportioned on the roll surface.
B. The machine is equipped with an overload protection device to prevent the main components from being damaged.
C. The machine is also equipped with an emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable.
D. The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.
E. The base frame is a whole framework, which is convenient for installation.
F. Stock bender for direct rubber sheet and knife to cut as your need to assemble.
G. Auto-lubrication sysytem for greese or oil and match bearing bush.
4. CE, ISO9001 certification, and we promise give you the best products and service.
5. We have cooperation with many famous university and China science institue.
| Version Parameter | XK-160 | XK-250 | XK-400 | XK-450 | XK-560 |
| Roll diameter (mm) | 160 | 250 | 400 | 450 | 560 |
| Roll length (mm) | 320 | 620 | 1000 | 1200 | 1530 |
| Front roll surface speed(m/min) | 8.89 | 15.3 | 18.65 | 24.32 | 27.72 |
| Friction ratio | 1: 1.35 | 1: 1.1 | 1: 1.27 | 1: 1.27 | 1: 1.2 |
| Max nip(min) | 4 | 8 | 10 | 15 | 15 |
| Feeding capacity per hour (kg) | 1-2 | 10-15 | 18-35 | 25-50 | 35-50 |
| Power (kw) | 5.5 | 18.5 | 37 | 55 | 90 |
| Size(l*w*h) | 1160× 920× 1370 | 3120× 1322× 1500 | 4350× 1850× 1780 | 5670× 2390× 1670 | 5845× 2284× 1978 |
| Weight(kg) | 1000 | 4000 | 7600 | 12000 | 23000 |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
