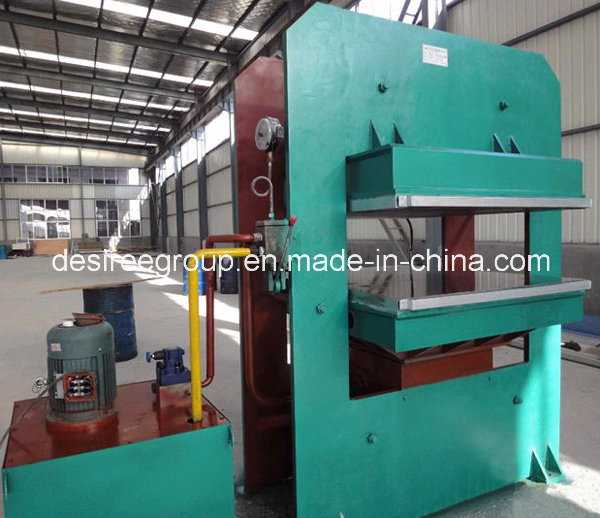

Rubber Products Vulcanizing Machine

Name: Rubber Products Vulcanizing Machine
Brand: china-manufacturer-directory.com
SKU: 693754042
Availability: InStock
Rating: 4.8 (67 reviews)

Supplier:	Qingdao Desiree Group Rubber Machinery Co., Ltd.
Price:	US $ 33500-46700/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	XLB-Q/D1200x1200x1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	1 Year
Voltage:	380V
Weight:	<50 tons
Type:	General Rubber Machinery
Type Of General Rubber Machinery:	Material Processing Machine
Type Of Tire Machinery:	Rubber Regeneration Machinery
Power:	<10KW
Using Life:	≥15 Years
Name:	Rubber Products Vulcanizing Machine
Total Pressure:	3150kn
Structure:	Frame Type

Product Description

Rubber Products Vulcanizing Machine

Function:
1. Used for pressing all kinds of rubber model products, rubber plate, thermostting plastic. Such as doormat, o-ring, seal, rubber sheet and so on.

2. Used as common hydraulic machine.

Features:
1. Mainly consists of main machine, hydraulic system and electrical system.

2. Frame type, with bottom hydraulic cylinder.

3. Adopts hydraulic drive, electric relay control, the curing time and pressure can be adjusted.

4. The oil tank was arranged at the right side, avoid of the influence of hot platen temperature.

5. Can provide hand control and electric control as customer's request.

6. There are two kinds of heating method for hot platen, steam heating and electric heating.

7. The hot platen clearance can be designed as per the size of product & mould.

Advantage:
1. Compact structure, less occupied area.

2. High working pressure

3. High producing efficiency

4. Easy to install. Operation is safe and reliable.

WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.

Our Services:
1. One year warranty and lifetime technical support.
2. Engineers available to service machinery overseas.
3. Any demand, we will give feedback within 24hours.

Welcome to make a field inspection of our factory.
Any demand, please feel free to contact with me.

Rubber Products Vulcanizing Machine Model No.	XLB-Q/D1200x1200x1	XLB-Q/D1000x1000x1	XLB-Q/D850x750x1
Total pressure(kN)	3150	2500	1600
Max. working pressure of working oil(MPa)	16	16	16
Max. stroke of piston(mm)	300	400	250
Piston diameter(mm)	500	450	360
Hot platen size(mm)	1200x1200	1000x1000	850x750
Layer quantity	1	1	1
Hot platen clearance (mm)	560	400	125
Heating temperature(°C)	140 to 160	140 to 160	140 to 160
Motor power(kW)	7.5	5.5	3
Steam pressure(MPa)	0.6 to 0.8	0.6 to 0.8	0.6 to 0.8
Electrical heating power of each hot platen(kW)	24.1	10.8	9
Total weight(kg)	8000	6000	4100
