Product Specifications
| Prod Model: |
XKJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| After-Sales Service Provided: |
2years |
Product Description

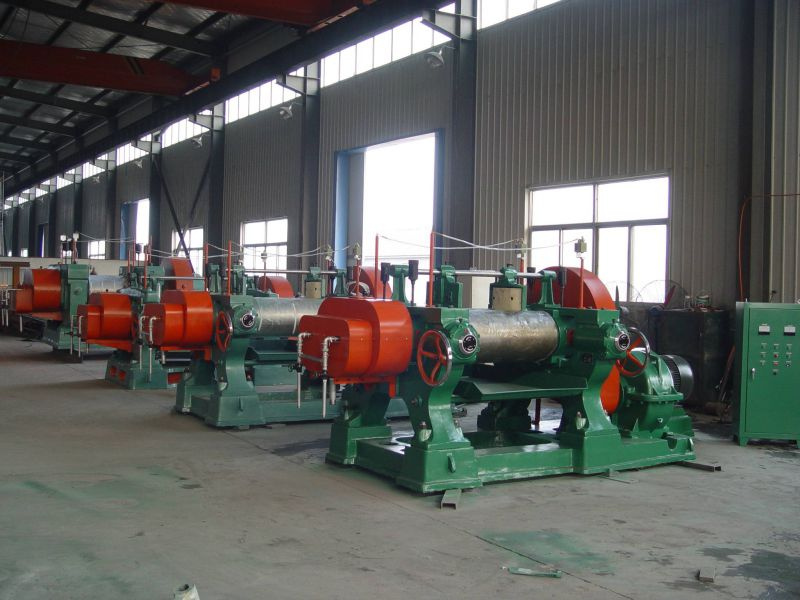

Rubber Reclaiming Machine/Reclaimed Rubber Mill/Reclaimed Rubber Refining Machine
1.Structural Features
The roll is made of chilled cast iron with vanadium and titanium alloys.The roll face is hard and anti-wear.Both the front roll and the back roll are fluted.The internal cavity of the roll is processed to make temperature well proportioned on the roll surface.
For XKJ-480H,the back roll is peripherally drilled for better cooling and the front & back rolls are supported with roller bearing.
The machine is also equipped with an emergency device.When an emergen accident happens,just draw the safety pull-rod,and the machine will stop immediately.It is safe and reliable.
The machine equipped with scraper and wind up unit. which can take the reclaiming rubber away from the winding-up roller.
2.Main Technical Data
Model & Specification | XKJ-450x510 | XKJ-480B | XKJ-480T | XKJ-480H |
| Working Diameter of Front Roll | 450mm | 480mm | 480mm | 480mm |
| Working Diameter of Rear Roll | 510mm | 610mm | 610mm | 610mm |
| Working Length of F. & B. Rolls | 800mm | 800mm | 800mm | 800mm |
| Linear Speed of F.Roll | 23m/min | 25.85m/min | 29.9 (29) m/min | 37 m/min |
| Linear Speed Ratio of F. & B. Rolls | 1:1.9 | 1:1.82 | 1:1.82 | 1:2.05 |
| Maximum Nip | 10mm | 15mm | 15mm | 15mm |
| Output | 200kg/h | 300kg/h | 345kg/h | 400kg/h |
| Main Motor Power | 55kw | 55(75)kw | 55(75)kw | 55(75)kw |
| Speed Reducer | NGW Planetary Hardened-gear Speed Reducer |
| Overall Dimension | 4942x1900x1400mm | 5030x2580x1863mm | 5030x2580x1863mm | 5030x2580x1863mm |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
