Product Specifications
| Prod Model: |
XKJ-400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| After-Sales Service Provided: |
2years |
Product Description

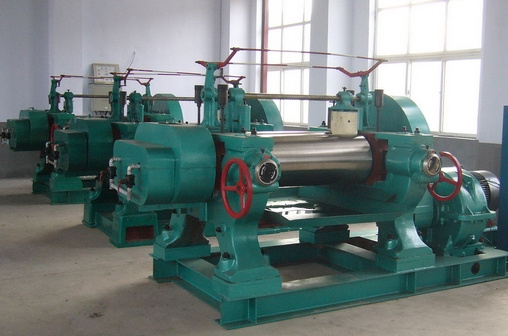

Rubber Refining Machine
1.construction
This machine consists of Base,Rack,Gland,Rollers,Bearing,Transmission device,Lubrication device,Decelerator,Adjustment device of the roller temperature,Emergency shutdown device and brake rigging and etc.
2.uses
It is mainly used for plasticating and mixing of rubber or plasticsect., warming and sheeting rubber compound, cracking and refining ofreclaimed rubber.
3.Features
1. Chilled alloy cast iron roll is abrasion resistant with long service life.
2. There are two kinds of Nip adjustment mode for option:manual or electric.
3. There are three kinds of Main bearings for option:Bearing or Copper bush or Nylon bush.
4. Machine will be tripped off if overloaded to protect valuable electrical circuit.
5. All electrical connections are well,short circuits is impossible by any means.
6. There are many speeds and speed ratios available, which can satisfy most customers' formula and processing requirements.
Version and its Technique Parameters:
Technique Parameters | XK-160 | XK-250 | XK-400A | XK-450A | Xk-450 | XK-560A | XK-550B | XK-660 | XKY-660 |
| Roll diameter(mm) | 160 | 250 | 400 | 450 | 450 | 560/510 | 550 | 660 | 660 |
| Roll length(mm) | 320 | 620 | 1000 | 1200 | 1200 | 1530 | 1500 | 2130 | 2130 |
| Front roll surface speed(m/min) | 8.95 | 15.3 | 18.65 | 18.65 | 23.47 | 27.87 | 28.32 | 28.6 | 32.53 |
| Friction ratio | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.22 | 1:1.24 | 1:1.09 |
| Max.nip | 4.5 | 8 | 10 | 15 | 15 | 15 | 15 | 15 | 15 |
| Feeding capacity per | 1-2 | 10-15 | 18-35 | 25-50 | 25-50 | 35-50 | 50-60 | 165 | 165 |
| Power | 5.5 | 18.5 | 37 | 55 | 55 | 90 | 110 | 160/245 | 160/245 |
| Size(lenght*width*height)(mm) | 1226*830*1295 | 3400*1600*1500 | 4350*1850*1780 | 5200*2380*1940 | 5670*2390*1670 | 6180*2280*1970 | 5870*2470*2040 | 7460*3660*2080 | 7465*3660*2080 |
| Weight(Kg) | 1280 | 3300 | 7860 | 12600 | 11940 | 22500 | 27000 | 49940 |
49000
|
Based on the ideas of High quality and Credit, we strictly control the quality of the
products, and constantly improve our powerful technical support and personnel
training to per customers. Mutual benefit is our aim and customers' satisfaction is our
success.
Picture one : XK-160 lab rubber mixing mill . Mainly used for lab use
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
