Product Specifications
| Prod Model: |
XKJ-480 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality Control: |
PLC |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Certification: |
ISO |
| Type: |
General Rubber Machinery |
Product Description

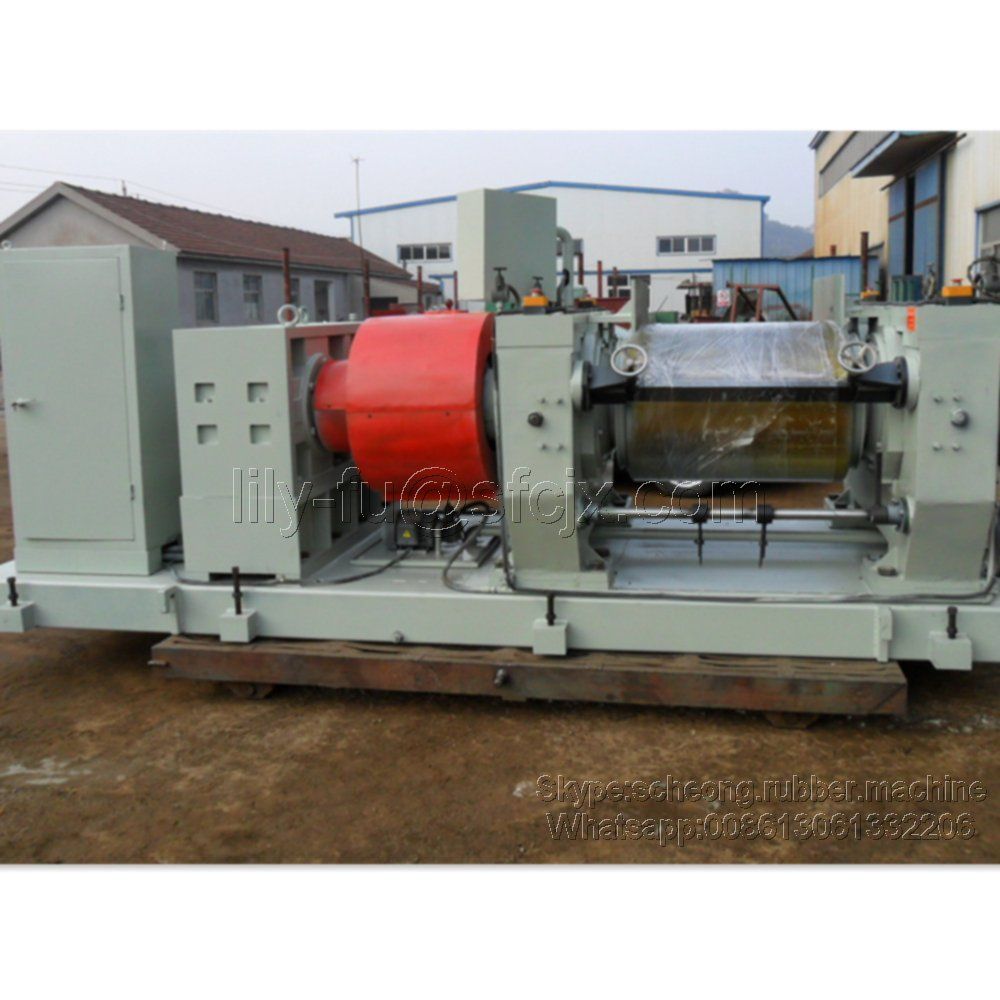

Rubber Refining Mill for Reclaimed Rubber with CE
Feature:
1 This machine is consist of welding base, frame, roll pitch devices, transmission gear, reducer, motor, electronic cabinet and emergence devices security protection devices and the other components.
2 The roller is made of general chilled iron, the roller surface and neck have high hardness and wear resistance through grind process. The inner hold of roller wall thickness error will be decrease provide coefficient of heat conductivity, heat uniform through grinder process.
The roller inner hold be connected heating and cooling devices. It is adjustment the roller temperature accesses steam and cooling water.
3. Pitch devices is consist of "T", adjustment handle, manual adjustment. Easy frame, convenient operation, long life, quick reaction and the other characteristic.
4. The machine is made of chilling cast iron, integral type structure base, easy install.
5 The emergence devices used exchange transposition braking, please pull the over shaft stem when happened emergence, it is stop operation
Our factory is one of the big manufactures for rubber machines in China for more than 10 years. The mainly products are plate vulcanizing press, inner tube curing press, tyre retreading machine, conveypr belt vulcanizing press, rubber tile vulcanizing press, rubber kneader, two-roll mixing mill and so on. We also can design and manufacture all kinds of non-standard rubber machinery according to the requirements of the customers. We can sure the quality and give you the best reasonable price.
In the additional, our machineries have exported to America, India, Vietnam, South Africa, Iran, Australia, Sri Lanka and many other countries
If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to our factory to visit and inspect.
1. The rubber refining machine is mainly used for removing impurity substance of reclaimed rubber.
2. According the requirement of our customers and our experience for these years, we design and manufacture different kinds of rubber refining machines which are used for producing various strength reclaimed rubber.
3. Waist-dump type rolls
4. The rolling bearings are lubricated by lubricating grease
Model:Rubber Refining Mill for Reclaimed Rubber with CE XKJ-400, XKJ-450, XKJ-480
After Sales Service:
1. We will offer you one year guarantee
2. We will give you reply and solution within 24 hours.
| Technical parameter \ Type | XKJ-400 | XKJ-450 | XKJ-480 |
| Front roll diameter(mm) | 400(Waist-drum) | 450(Waist-drum) | 480(Waist-drum) |
| Rear roll diameter(mm) | 518(Waist-drum) | 510(Waist-drum) | 612(Waist-drum) |
Working length of rolls
(mm) | 760 | 800/1000 | 800 |
Front roll surface speed
(m/min) | 25 | 48/32 | 22.97 |
| Friction ratio | 1: 1.707 |
| 1: 1.82 |
| Max. nip(mm) | 10 | 10 | 15 |
| Motor power (kw) | 45 | 55 | 75 |
Overall dimension
Length× Width× Height
(mm) | 4770× 2300
× 1835 | 4700× 2100
× 1400
4900× 2300
× 1450
| 5070× 2800
× 1978 |
| Key words | Rubber machinery, refining machine, reclaimed machine, rubber refining mill, rubber machine |
Qingdao Shun Cheong Machinery Co., Ltd. (Original China Qingdao first Rubber Machinery Factory) was founded in 1968, which is a professional manufacturer in rubber machine field of China with high-tech technology. We have ISO9001: 2008, CE1282 and SGS certification. Our customers spread all over the world, such as the United States, Germany, Brazil, Singapore, Malaysia, India, Russia etc. Our company's major customers including: Michelin, Bridgestone Americas Tire Operations, LLC, Kumho, Cheng Shin Rubber Industry, United States Goodyear Tire & Rubber Company etc.
Reduce the production cost and supply high efficiency rubber machines are the target aim of our service. Our company is near from Qingdao steel factory and Qianwan port, which is largely lowering the logistics cost; Germany and United States' core talents and experienced engineers and outstanding technical teams have been introduced, constantly improving the R&D capability, with the advanced fabricating equipment to develop the world excellent rubber machine, satisfying the clients high requirements.
In order to supply better service for our customers, we also provide the conveyor belt production line, waste tire processing line, tire and other rubber products' producing on- site for customers to visit and consult.
1. Our company machines must pass inspection of 3-7 hours of load test operating before they leave the factory, thus saving customers' time and expense of equipment commissioning.
2. We provide one year's guarantee and once the equipment damage during this time we supply free of charge. In order to save maintenance time and reduce the production cost of the guests, you can contact our DCRC by email, MSN or Skype etc., and we will send professional technical personnel with English translation to you to solve equipment problems.
3. Our company establishes "CUSTOMER FILE" for sold equipment in the form of return visits regularly; Including equipment's maintenance, troubleshooting and customer feedback.
4. Complete after-sales service
