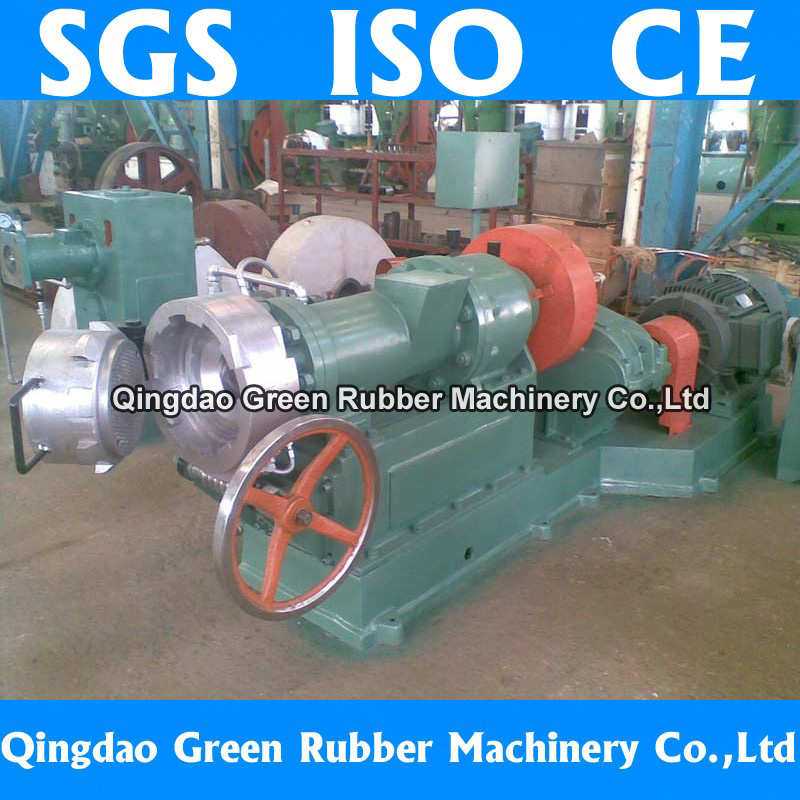

Rubber Straining Machine

Name: Rubber Straining Machine
Brand: China-Manufacturer-Directory.com
SKU: 690860302
Availability: InStock
Rating: 4.6 (50 reviews)

Supplier:	Qingdao Green Rubber Machinery Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	XJL-150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter Of Screw:	150mm
Screw Rotating Speed:	53r/Min
Steam Pressure:	0.6-0.8mpa
Producing Capacity:	450kg/H
Cooling Water Pressure:	0.2mpa
Type:	General Rubber Machinery
Type Of General Rubber Machinery:	Rubber Extruder
Type Of Tire Machinery:	Rubber Regeneration Machinery
Certification:	CE, ISO, SGS

Product Description

Rubber Straining Machine

1. Application:
It's used for straining the material of natural or reclaimed rubber out.
It can also be used to strain vamp glue and inner tire compound.

2. Feature:
(1). Screw form double threads, equal pitch and depth
(2). Match a single head or cutter head with hydraulic tightening
(3). Jacketed type barrel can be cooled for cooling the rubbers effectively.
(4) Smoothly running and high output.
(5) Equipped with die-head auto opening system when electric power is cut off.

3. Structure of the rubber strainer
(1). The rubber strainer consists of end, body, screw, reducer,
Coupling, motor, hydraulic head, base, water (steam) pipe and cabinet, etc.
(2). There is groove between the body and bush for running the steam or cooling water. The
Bush is replaceable. At the rear part, there is a square feed hopper. The material is pressed into the
Head through the screen by rotating of screw.
(3). The gear ring of head is quick-lock bayonet type with hydraulic opening.
(Refer to Operation and maintenance and Hydraulic principle diagra). After the running for
A certain period of time or when the screen is broken, the head should be opened in order to
Change the screen. Otherwise, the output and quality of the strained rubber would be obviously
Affected

If you are interested in our products or have any questions please contact us freely. We will try our best to meet your requirement at first time.

Phone: +86-15954820233

Pleased at your service!

We have the strength to make you satisfied, please give me this honor! At the same time we welcome you to visit our factory. Looking forward to your arrival! ! !

Items/Model	XJL-150A	XJL-200	XJL-250
Screw diameter (mm)	150	200	250
Max. screw speed (r/min)	41.6	47.2	40
Drive motor model	Y280M-8	Y315-6	Y315L1-6
Capacity (kw)	45	90	110
Cutting device speed (r/min)	16	16.8	11
Steam pressure (MPa)	0.6-0.8	0.6-0.8	0.6-0.8
Cooling water pressure (MPa)	0.2-0.3	0.2	02.
Max. production capacity (kg/h)	400	800	1600
Size (mm)	287312201377	424819951493	444011801650
Quantity (kg)	6500	8600	9000
