Qingdao Desiree Group Rubber Machinery Co., Ltd. >> Rubber Tile Making Press

Rubber Tile Making Press

Name: Rubber Tile Making Press
Brand: China-Manufacturer-Directory.com
SKU: 691567142
Availability: InStock
Rating: 4.3 (131 reviews)

Supplier:	Qingdao Desiree Group Rubber Machinery Co., Ltd.
Price:	US $ 6350-11000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	XLB-D550x550x4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	General Rubber Machinery
Type Of General Rubber Machinery:	Material Processing Machine
Type Of Tire Machinery:	Cycle Tire Machine
Name:	Rubber Tile Making Press
Condition:	New
Total Pressure(Mn):	0.5
Plate Size(Mm):	550 X 550 X45
Daylight(Mm):	150
Daylight No.:	4
Piston Stroke(Mm):	400
Warranty:	12months

Product Description

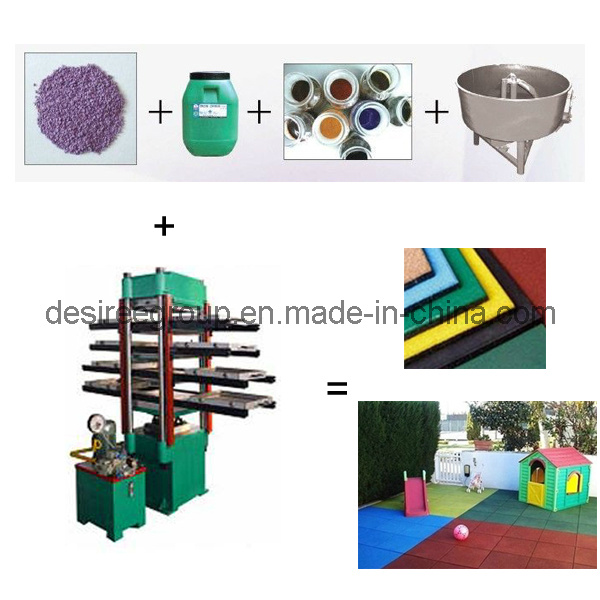

Rubber Tile Making Press

Function:
Used for curing the rubber tiles and rubber mats, it is good for using the recycling rubber.

Features:
1. Column type, mainly consists of hydraulic cylinder, piston, column, hot plate, track, mould, top link, hydraulic station, electric cabinet.

2, Equipped with manual push-out device and two sets of mould, so the production efficiency is high.

3, The thickness of mould is optional, from 20mm to 75mm.

4. As the request, can equip with mixer.

WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.

Our Services:
1. One year warranty and lifetime technical support.
2. Engineers available to service machinery overseas
3. Any demand, we will give feedback within 24hours.

Any question, please feel free to contact with me.

Rubber Tile Making Press Model No.	XLB-D550x550x4
Total pressure (MN)	0.5
Plate size (mm) (L x W x T)	550x550x45
Daylight (mm)	150
Daylight no.	4
Piston stroke (mm)	400
Motor power (kW)	3
Overall size (mm)	2200x900x2200
Weight (kg)	3600

About us:
Qingdao Desiree Group Rubber Machinery Co., Ltd is one of the major companies of Qingdao Desiree Group, which devotes itself to designing and manufacturing of Tire curing press, Tire building machine, Dynamic balancing machine, Platen press line, Rubber mixing machine and batch off.
The Group is composed of 5 subsidiaries which are Qingdao Desiree Group Surface Treatment Equipment Co., Ltd, Qingdao Desiree Group Rubber Machinery Co., Ltd, Qingdao Desiree Group Automobile Inspection Device Co., Ltd, Qingdao Desiree Group High-rise Parking Equipment Co., Ltd and Qingdao Desiree Group Real Estate Co., Ltd. After decades of development, Qingdao Desiree Group now is Qingdao TOP 15 large-scale private enterprise.
Qingdao Desiree Group Rubber Machinery Co., Ltd established a powerful technical center in the very beginning, and has multi cooperations with more than 10 scientific research institutes and universities. By absorbing the advanced rubber machinery technology and the company's innovation, our products are now rated as the advanced level both at home and aboard.
We have a team of skilled and experienced senior engineers and technicians. We have developed several proprietary technologies which fill up the vacancy of our country. Our products achieve world class quality standards.
Group has continuously increased the input in basic equipment. Till now, our company has built modern processing workshop, metal working workshop, electric workshop and assembly workshop, and introduced a number of large modern and high-precision machining equipments to guarantee our products quality.
Carrying on the past and opening a way for future, with high quality and considerate services, our company will continuously provide our best products and service under the leadership of chairman Mr. Yang tongde. Building up into a world-class rubber machinery enterprise is our ultimate goal.
