Product Specifications
| Prod Model: |
GN Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Gn Series |
| Warranty: |
1 Year |
| Brand Name: |
Hesong |
| Machine Type: |
Rotary Abrator |
| Spare Parts: |
Avaliable |
| Design: |
as Your Need |
| Shot Selected: |
According to Your Workpiece Specification |
| Certificated: |
CE&ISO9001 |
| OEM: |
Acceptable |
Product Description

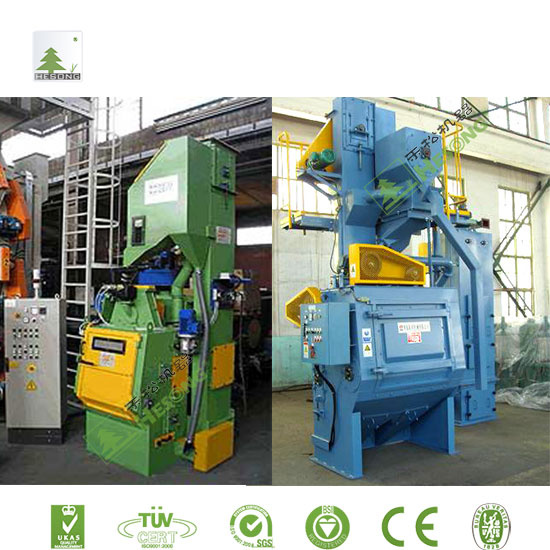

China Casting machinery manufacturers, Crawler type shot blasting machine, Rubber belt track sander
1. Use
This machine is used of fore and aft phase rubber tracks the formation of the drum of a space, make the workpiece in the process of blasting continuous rolling, it is mainly used for non-ferrous metal artifacts such as shot blasting treatment
2. Feature
1. no-pit, no change of track, compact structure
2. High impeller blasting volume
3. High cleaning efficiency, large effective space
4. No-pit form, has no special demand on structure of work piece
5. Suitable for machinery manufacture and foundry industry
6. With dust-collection device and separation device, can be operated easily and also with good condition
7. Convenient maintainance.
Technical Data
NO | Item | 3GN | 8GN | 8GN-5R | 15GN |
| 1 | productivity | 0.6-.1.3 | 3-5 | 2-4 | 2-3 |
| 2 | feeding amount | 220 | 800 | 630 | 1362 |
| 3 | The maximum weight of single piece | 12 | 150 | 35 | 80 |
| 4 | diameter of and disk | 650 | 1000 | 1000 | 1292 |
| 5 | effective volume | 0.15 | 0.5 | 0.3 | 0.3 |
| 6 | abrasive flow rate | 160 | 270 | 270 | 430 |
| 7 | ventilation capacity | 2000 | 6000 | 3500 | 6500 |
| 8 | power consumption | 12.6 | 32.6 | 27.3 | 40.3 |
| 9 | belt | rubber | rubber | rubber | metal |
Equipped With Dust Collector
1.Air inlet, Air discharge and reverse blowing system: including gas inlet pipes,gas inlet room,reverse blowing valve, reverse blowing pipes, three way pipe,gas discharge valve,gas discharge pipes.
2.Bag chamber construction : including dust hopper, access door, frame ontolog,Top and bottom plate, bag filter, filter chamber.
3.Ash discharge system: including ash discharge valve,screw conveyer.
1.It is used to treat exhaust gas of high concentration,large air flow, high temperature and humidity etc.
2.It uses positive pressure reverse sucking air separate chamber offfline dust clearing.
3.It uses PLC to realize automatic dust air cleaning, dust particle removal, automatic temperature control
Shot Blasting Machine Blast Wheel
1. Blast Wheel is a new kind of imp eller head with high efficiency, simple structure and low noise .
2.The 8 Blades are inserted on the wheels and firmly fixed by the centrifugal force of vane wheel revolving ,no need to use any clamp apparatus.
3.Simple design of blade locking guarantees a quick turn or change of blades.It will only take 3 to 5 minutes to disassemble the 8 pieces blades.
Direct-Driven Blast Wheel
Straight league blasting is a new type, efficient shot blasting machine, with beautiful shape, compact structure, low noise, energy conservation, environmental protection, etc
Belt-Whell Blast Whell
Belt shot blasting machine is a kind of traditional shot blasting machine, with a large amount of blasting and cleaning effect is good wait for an advantage.The essential components of equipment is a large clean up
FAQ
Q: What standards are you carrying out for your products?
A: We produce according to the ISO9001 and ISO14001 rules.
Q: How to install the machine?
A: We will arrange 1~2 engineers to your factory to guide installation and assembly.
Q: What's your international market?
A: We Have exported to about 40 countries and regions all around the world, such as, the USA, France, Singapore, Australia, Middle East, Brazil, Peru and so on.
Q: What's your productivity?
A: We have three production lines for steel shot and steel grit production, one work shop for steel cut wire shots, and one workshop for stainless steel shot and Aluminium shot and so on.
Why Choose Us ?
1. Our company has passed "CE", "ISO9001" and bureau veritas certification .
2. 50 years experience with 20 professional engineers in our Qingdao Foundry Machine Co.,Ltd.
3. So many kinds of foundry machinery ---100 kinds of shot / sand blasting machines and 80 kinds of casting machines.
4. Considerate after-sale service , Technial Assistance and provide installing ,debugging and training on site
5. The company has its own foreign trade marketing team Industrial Corporation, first - class service standards for all clients.
Our company has passed ISO 9001:2008 certified,we can offer OE service
We can also design product according to your demand. The products have stabile performance , good quality and reliable service. We allow a proper discount according to the quantity you order.If you have any question, pls dont feel any hesitate to ask me, i will try best to meet your demand,It's make our company great honour . Looking forward our long friendly cooperation with people from all of the world.
If you are interested in this machine, Please let me know.
