Name: Rubber Tyre Processing Machinery
Brand: China-Manufacturer-Directory.com
SKU: 697481042
Availability: InStock
Rating: 4.4 (87 reviews)

Supplier:	Qingdao Green Rubber Machinery Co., Ltd.
Price:	US $ 31400-300000set
Min Order:	1set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	XKP-400 450 560
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	<50 tons
Type:	General Rubber Machinery
Type Of General Rubber Machinery:	Material Processing Machine
Type Of Tire Machinery:	Cycle Tire Machine
Power:	>100KW
Using Life:	≥15 Years
Customized:	Customized
Usage:	Rubber Plasticating Mixing Warming
Cerificate:	CE/ISO9001/SGS
Roller Material:	Vanadium Titanium Alloy Chilled Cast Iron
Certification:	SGS

Product Description

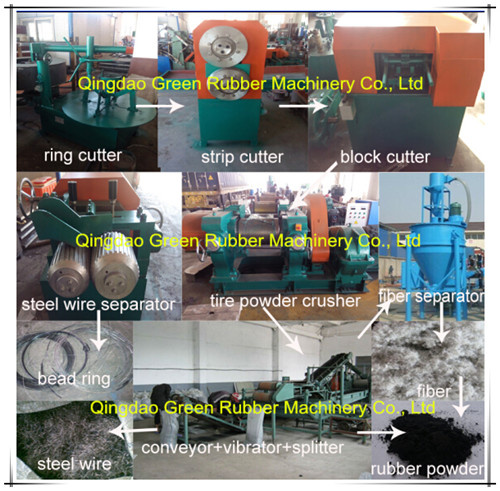

Semi-automatic Tire Recycling Line to Rubber Powder Machine

Tire Circle Cutter: used to cut off tire bead circle from whole tire.
Tire Strip Cutter: to cut tire into long strips.
Tire Block Cutter: to cut long strips into blocks.
Bead Wire Separator: to separate tire wire from tire ring bead.
Rubber Crusher Mill is the main machine of tire recycling machine line, used to crush tire blocks into samll mesh tire powder.

By using main essential auxiliaries machine we can get the ideal mesh tire powder that you want.

If tire you're handing nylon tires, you need to use fiber separator to separate fiber from tire powder.
If you want to get tire powder from 40-120 mesh, you also need to use fine pulverizer machine.
Output analysing
1).XKP400 rubber crusher:
Output: 6000-7200kg/24 hour for about 20 mesh granule.
2).XKP450 rubber crusher:
Output :9600-12000kg/24 hour for about 20 mesh granule.
3).XKP560 rubber crusher:
Output : 10000-17000kg/24 hour for about 20 mesh granule.
4)XKP560B rubber crusher:
Output: 16000-20000 kg/24 hour for about 20 mesh granule
FAQ
1. Iron/steel removing ratio>99.5%, fiber removing ratio>98%
2. Adopt semi-automatic control system for whole line, reduce labor cost
3. No sewage and waste gas discharge, environment protection
4. Can recycling all kinds of tires
5. 3-4 workers for operation
6. The space requirement is at least 15m length *8m width *4m height
7. Can get different mesh tire powder according to your requirements
8. Equipment warranty is 1 year
9. 40 open top container for transportation
10. Installation: if well-prepared and positive cooperation, need about 7 days
11. Delivery time: after received 40% deposit need about 30 working days

Name of product		Qty	Instruction
Waste tyre processing rubber powder making machine
Main frame	Rubber crusher	1	Model:XKP400/XKP450/XKP560
Auxiliary engine	Ring cutter	1	The tire side of the junction with the tire top and cut into the knife
	Strips cutter	1	Will cut off the tire sidewall cut into strips and keep the tire ring
	Rim cutter	1	Will be cut into strips of tire cut into 3.5 cm square block
	Vibrating screen	1	The powder for the first time separation (5-10 mesh)
	conveyor	1	Mesh used for transportation does not meet the requirements to return the host to break powder
	Magnet screen	1	The powder in the extraction and separation of metal wire
Notice			More equipment for the whole set of Waste Rubber Equipment
Steel separator			Private and extraction of tire wire ring in the mouth
Fine milling machine			The powder for further processing to 40-100 mesh
Reclaimed rubber sheet making machine
Dynamic devulcanizer		1	Model: 3M3, 6M3, 8M3. Use for rubber powder desulfurization
Open mixing mill		2	Model: XK-450,XK-560. Use to speed mixing the devulcanization rubber powder, along with some other material (ingredient).
Rubber refiner		1	Model: XKJ-450B,XKJ-480. Use for refine rubber sheet,Rule out the impurity in the rubber. The same time, it also have roll reclaimed rubber.
