Qingdao Eenor Rubber Machinery Co., Ltd. >> Rubber Vulcanizing Machine / Rubber Vulcanizer / Plate Vulcanizing Machinery

Rubber Vulcanizing Machine / Rubber Vulcanizer / Plate Vulcanizing Machinery

Name: Rubber Vulcanizing Machine / Rubber Vulcanizer / Plate Vulcanizing Machinery
Brand: china-manufacturer-directory.com
SKU: 734025145
Availability: InStock
Rating: 4.9 (68 reviews)

Supplier:	Qingdao Eenor Rubber Machinery Co., Ltd.
Price:	US $ 3600-5000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	all various Rubber Vulcanizing Machine
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Blue, Green, etc
Series:	Rubber Vulcanizer Machine
Total Pressure:	0.25-8.0 Mn
Piston Stroke:	250-500 Mm
Plate Size:	1500X1500 Mm
Plate Clearance:	125 Mm
Type:	Tire Machinery
Type Of General Rubber Machinery:	Material Processing Machine
Type Of Tire Machinery:	Rubber Regeneration Machinery
Certification:	CE, ISO

Product Description

1.About our company:

Our company is a firm engaged in production enterprise, mechanism of rubber has more than 20 years of history.

Company management certification: ISO 9001:2000, ISO 17799, ISO 9001:2008, ISO 14001:2004, ISO/TS 16949

Our main products are plate vulcanizing press, two-roll mixing mill, rubber extruder, banbury intensive kneader, bale cutter, conveyer belt vulcanizing press, tyre reclaiming machines, rubber refiner, rubber cracker, etc. we especially specialize in the design and manufacture of the nonstandard products .

2.Description of machine:

1. This kind of machine is multi-functional beacuse it is suitable to be used for top opening double or triple mold plates.

2. High force employs dual pressure , and each oil system is designed seperately which makes it stable ,quiet and low frequency of malfunction when working. Two sides can be operated simultaneously.

3. The electric system adopt PLC programming control , which is easy to be operated.

4. Automatic in/out mold and ejector device, low labor strength.

5. Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption.

6. It is possible to adjust the speed of opening/closing the mold. It is very accurate and reliable.

7. Molds can be positioned precisely. A 100% safty design for position is avaliable to prevent molds from damaging.

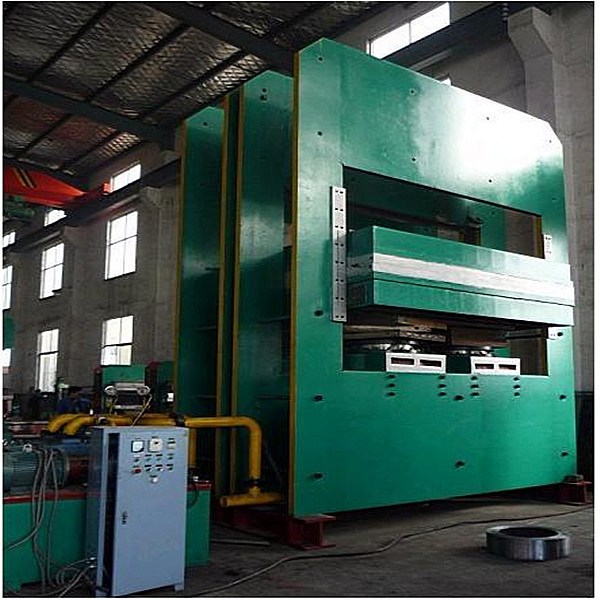

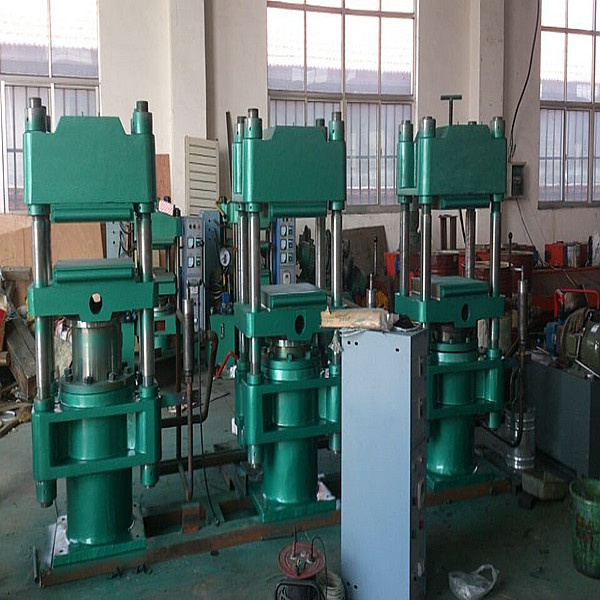

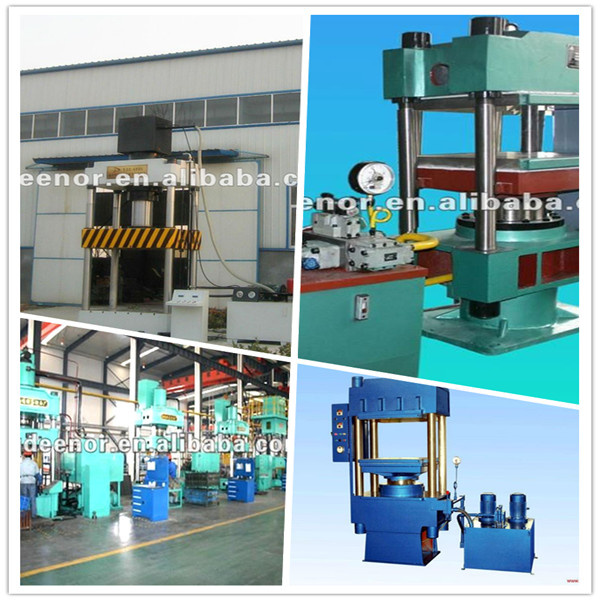

3.Pictures of vulcanizing machine
4.Certification of vulcanizing machine:

Item		Unit	D350× 350×2	D400× 400×2	D500× 500×3	D700× 580×4	D750× 640×4	D1000× 600×4	D1670× 2700×2	D1500× 6000×2
Nominal force		mm	250	500	630	1000	1600	2000	12000	24000
Master cylinder maximum travelling range		mm	180	250	500	500	500	500	800	850
Layer		mm	2	2	3	4	4	4	2	2
Level spacing		mm	150	200	125	125	125	125	600	600
Max.pressure of liquid		MPa	16	25	25	25	25	25	25	25
Slide speed	Ascending velocity	mm/s	≥20	≥20	≥20	≥14	≥12	≥10	≥10	≥8
Slide speed	Return speed	mm/s	≥20	≥18	≥18	≥40	≥20	≥20	≥25	≥25
Hot plate size	L-R	mm	350	400	500	700	750	1000	1670	1500
Hot plate size	F-B	mm	350	400	500	580	640	900	2700	6000
Thermal rating		kW	5.4	7.2	9	27	40.5	40.5	45	45
Entire machine power		kW	6.9	8.7	10.5	29.2	44.5	48	55	110
Organization form			Four columns	Four columns	Four columns	Four columns	Four columns	Board frame	Board frame	Board frame

Qingdao Eenor SCIENCE&TECHNOLOGY Co., Ltd is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.

My company's products have passed the certification of the various, such as: Plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.

Our Company Motto: "THE HONESTRY IS THE ROOT, A PROMISE IS A PROMISE" the enterprise idea, adhere to market-oriented, providing customers with advanced products and quality services. Mr kIMSUN PANG(Chairman) together with all staff warmly welcome customers at home and abroad to the company to negotiate, guidance, my company is willing to first-class technology, first-class service, first-class quality, sincerely service for you.
