Product Specifications
| Prod Model: |
XLB-2400*3000*1/21.6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Mode: |
with Push and Pull Mould Device |
| Color: |
Green |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Rubber Presses |
| Type Of Tire Machinery: |
Flap Curing Press |
Product Description

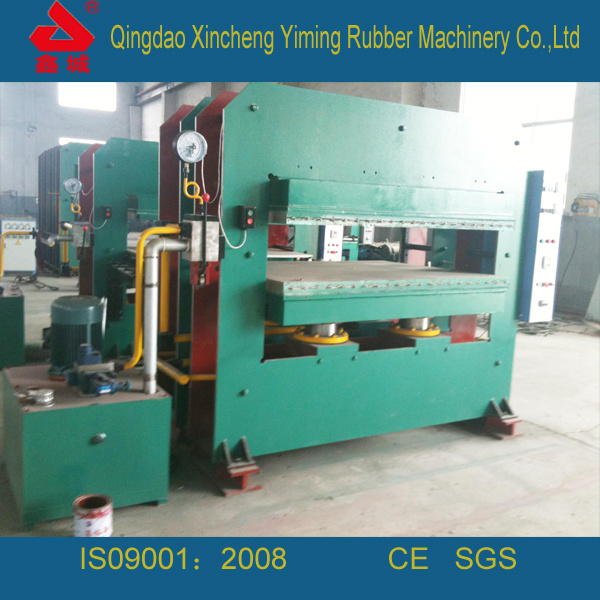

Rubber vulcanizing press machine/rubber molding machine
Features:
1. The materials of the piston is chilled cast iron, the surface is chilled cast iron of vanadium and titanium alloy hard and wearable.
2. The set of hydraulic cylinder contain pistion, cylinder, gland ring and the flange. The flange press the gland in order to prevent spillage oil. The mateirla of the gland ring is oil resistance rubber.
3. The hydraulic system is building and machining by ourself.
4. The electricit system when can use MITSUBISHI, DELTA, SCHNEIDER...Etc. We can install based on your requirements.
5. The hydraulic contain three set low-pressure motor pump and one set high pressure motor pump.
More:
1. High Precision.
2. Easy to operate.
3. ISO Certified.
4. After sales service available
Pls contact me if you have any question about our production!
|
Model |
XLB-2400*3000*1/21.6 |
|
Total pressure(MN) |
21.6 |
|
Plate size(mm) |
2400*3000*70 |
|
Plate clearance(mm) |
400 |
|
No. of working layers |
1 |
|
Plate pressure(Mpa) |
3 |
|
Piston stroke(mm) |
400 |
|
Heating |
electricity or steam or heat conduction oil |
|
Machine structure |
frame |
|
Weight(kgs) |
8000 |
Qingdao Xincheng Yiming Rubber Machinery Co., Ltd is located in the west coast of Qingdao-Jiaonan City, west of the state road 204, next to the Qingdao Economic and Technological Development Zone, nearby Qingdao Port and Qingdao Liuting International Airport, with excellent geographical location and developmental traffic.
We are a professional manufacturer of various rubber machineries and its auxiliary equipments. We can design and manufacture all kinds of non-standard rubber machineries according to the requirement of the customers. We have cooperations with several agencies major in designing and producing rubber & plastic products, on the R & D of rubber-plastic field, technology assessment, technical training, technological achievements. We contract a full set of equipments on making all kinds of large engineering rubber-plastic, tyres and other rubber-plastic products. We provide commissioning process and installation, until customers produce satisfied products and achieve maximum economic benefits.
Our company passed ISO9001: 2008 International Quality Management System Certification. The company gathered a number of outstanding technical staffs, management persons, have a young marketing team which has international perspective and local experiences, offering the professional international marketing services. We have high level, high efficiency, high-speed marketing network, quickly seizing the international market.
Our company has excellent machine-processing equipments, advanced technology, unique test method, full of quality products and good sale-service system, we are well received by consumers, leaves a good corporate image in the peer.
"Excellent, customers first, scientific management, continuous improvement "is our quality policy, Qingdao Xincheng Yiming Rubber & Machinery Co., Ltd will serve you the best.
