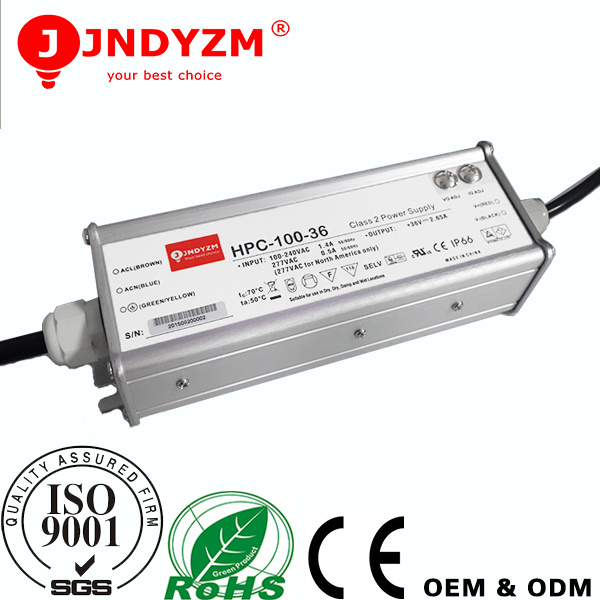

Rubycon Capacitor Aluminum Waterproof Constant Current 100W Transform Driver LED Power Supply

Product Specifications

Prod Model:	HPC-100-36/42/48
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Hpc-100-36/42/48
IP Rating:	IP67
Warranty:	3years
Export Markets:	Global
Input Voltage:	85-265V
Shell:	Aluminum
Power Factor:	>0.98(PF)
Efficiency:	91%
Size:	195*62.5*40.5mm
Authentication:	CE Rosh
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	Conventional Step-down Transformer
Pack Sealing Size:	29*27*20cm(L*W*H)
Brand:	Jjn

Product Description

Rubycon Capacitor Aluminum waterproof constant current 100W transform driver led power supply


Features:
Universal AC input(up to 305VAC)
High effiuency up to 94%
protection:short circuit/over current/over voltage/over temperature
Built-in-active PFC function
Fully seated insulating case filling with heat-conducted glue
Cool by free air convection
OCP can be adjustedthrough output line and installations
Suitable for LED light and LED screen standard
Suitable for dry/wet/rain environment
Aging testing 100%

Model	HPC-100-36/42/48
Capacitor	Rubycon Capacitor
DC voltage	36V	42v	48v
Constant current range	23.4~36V	27.3~42V	24~48V
Rated current	4.2A	3.6A	3.2A
Current Range	0~2.65A	2.28A	2A
Rated Power	95.4W	95.76W	96W
Voltage adjustment range (SVR1)	33~40V	37~46V	43~53V
Current adjustment range (SVR2)	1.72~2.65A	1.48~2.28A	1.3~2A
Voltage Accuracy	+/-10%
Line regulation	+/-3%
Load Regulation	+/-5%
Size	195*62.5*40.5mm(L*W*H)
Warranty	3years
Cetification	CE      ROSH

working temperature and humidity	-40~+70ºC,20-95%RH
over current profetion	95-108%constant limited,auto recovery
over vollage protection	110%-150% rated output limited
working temperature	-35~+70ºC
MOQ:	1PCS


Applications:
1,Our products are widely used in various industries, such as
2,indoor LED illuminating lights,
3,LED Neon,
4,LED urban Decoration
5,LED Lighting Advertising,
6,LED Display,
7,Safety Protection Apparatus,
8,Telecommunications,
9,Networks,
10,Vehicle Lights, Controller Panels, etc.



Brief Introduction:
*Constant current output:
*IP grade:IP67
*LED Drivers using indoor or outdoor
*Protection: short Load, Over Heat, Short Circuit
 *CE ROSH

Note:
1,Trade Terms: EXW, FOB, CIF etc
2,Lead time: order confirmation as custom required
3,Payment terms: T/T, Escrow, West Union, PayPal,as your requests
4,30% deposits before production, 70% balance to be paid before delivery
5,Discounts are offered based on order quantity
6,Shipping freight are quoted under your requests
7,Shipping port: Shenzhen, Mainland China
8,MOQ: 1 pc


Shipping:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air



SKYPE Wendy_hqq
