Product Specifications
| Prod Model: |
A370 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
TFT LCD 7 Inch, Sunlight Readable |
| Network Interface: |
Integrated WLAN 802.11 B/G |
| USB: |
Mini USB 10-Pin, OTG Supported |
| DC Jack: |
1 X DC Power Input |
| Micro SD: |
1 X Micro Secure Digital (SD) Card Slot |
| Uart: |
Supported |
| SIM Socket: |
1 X SIM Socket |
| Battery Pack: |
DC 3.7V/ 8000mAh |
| Dimensions: |
220 X 132 X 23(Mm) (8.7" X 5.2" X 0.9") |
| GPS: |
Supported, 10m |
| Type: |
Handheld Computer |
| Screen Size: |
7" |
| OS: |
Android |
| Memory Capacity: |
≥1GB |
| CPU Type: |
Qualcomm |
Product Description

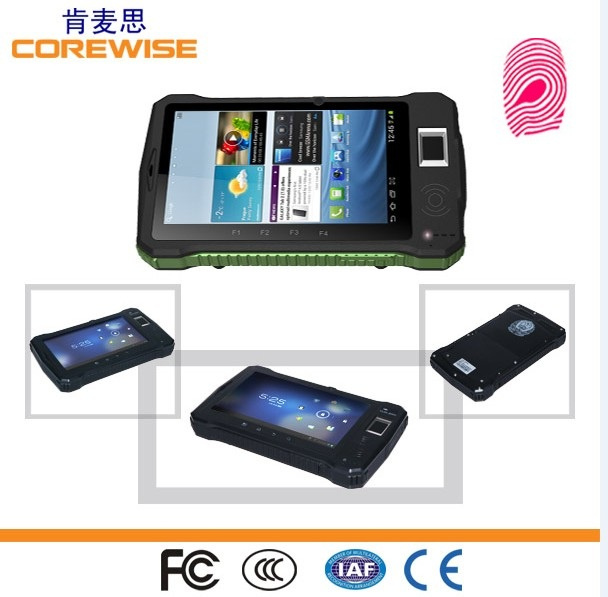

Android 4.0 os Bluetooth Tablet PC with barcode scanner-A370
Company pfofile
Corewise Smart Technology Inc. Was founded in 2010 in Nanjing, Jiangsu Province, P. R. China.
Corewise is basically a pure hardware manufacturer, a leading vendor of smart terminals, a primary provider of security products. Corewise is a high-tech enterprise and specializes in R&D, and manufacturing of handheld devices, e. G. Tablet pc, barcode scanner, RFID reader, fingerprint sensor, Bluetooth printer, police-use BTS, etc. Integrated with 3G smart phone features, these "all-in-one" terminals with superior performance can be utilized in a wide range of scenarios, e. G. Identity verification, inventory management, access control, timing & attendance, etc. Google Android downloadable apps or tailor-made software can work in conjunction with our powerful terminals to create most controllable and versatile solutions to bring human, financial, material resources as well as vehicles under absolute control.
Corewise is now headquartered in Nanjing (R&D) with product lines (PLs) in Shenzhen focusing on procurement & producing. Our annual turnover is around 8 million U. S. Dollars.
Product Specification
System
CPU: Qualcomm MSM 8225 Dual Core 1.2GHz
Memory: 1GB RAM, 4GB ROM
Storage: T-Flash/Micro SD card, up to 32 GB
Operating System: Google Android 4.0. 4
Display: TFT LCD 7 inch, sunlight readable
Touch type: Capacitive type
Display Resolution: 1024 x 600
Network Interface: Integrated WLAN 802.11 b/g, Integrated Bluetooth 2.1
Camera: Front 1.3M, rear 5M, LED, auto focus
Control Switch and Buttons: 1 x Power on/off button
3 x Function Key button (default on/off control WIFI, BT, 3G, GPS, speaker/microphone)
Indicators: 1 Power / 1 Battery status LED
Speaker & Microphone: Built-in speaker & microphone
Interfaces
USB: Mini USB 10-pin, OTG supported
DC Jack: 1 x DC Power input
Micro SD: 1 x Micro Secure Digital (SD) card slot
UART: Supported
RS232: Supported
SIM Socket: 1 x SIM socket
Power
AC/DC Adapter: Input AC: 100~240V Output DC: 5V
Battery Pack: DC 3.7V/ 8000mAh
Physical
Dimensions: 220 x 132 x 23(mm) (8.7" x 5.2" x 0.9").
Weight: 0.5Kg (1.1lbs) with batteries
3G: GSM/GPRS/EDGE 900/1800Mhz
WCDMA 2100Mhz
GPS: Supported, 10m
Features
Fingerprint: Live, biometric fingerprint sensor/reader, capacitive touch screen, 508 DPI
QR Code: 2-Dimensional Barcode Scanner (compatible with 1-Dimensional barcode scanning)
Waterproof: IP65
Shockproof: 1.0M falling
Free SDK
L No special training required. Customers can also set up the handheld system in other languages (besides Chinese & English).
L Open API: Free SDK, open software platform for secondary application development and customized programs.
Trade Terms
FOB China INCOTERMS 2010 or DDU Destination Port, TBD
Payment Terms
L L/C, D/P, D/A
L Advance 100% T/T
USD Account Details
BENEFICIARY: LOINCOM TECHNOLOGY CO LTD
BANK: HSBC HONG KONG (The Hongkong and Shanghai Banking Corporation Limited)
BANK ADDRESS: 9/F Tower, HSBC Centre, 1 Sham Mong Road, Kowloon, Hong Kong
SWIFT CODE: HSBC HK HHH KH
A/C NO: 808 243695 838
Delivery Lead Time
L 1~10pieces, within 5 work days upon receipt of payment
L 10~100pieces, 5+N (N=qty/10) work days upon receipt of payment
L >100 pieces, within 20 work days upon receipt of payment
Warranty and AMC
1 year (12 months upon receipt) with extended AMC on paid service basis, extended AMC will be payable, TBD, case by case by negotiation
Courier Charge for Samples
Most samples will be delivered by air express (DHL or FEDEX, etc). Courier will be charged @ USD40.00/unit from China to destination (office or home), which shall be payable on buyer account. For bulk orders, shipping cost would be reduced significantly.
Production Capacity
5000units per month for each model
| Technical Specifications of Nanjing Corewise IC-7 Tablet PC (A370) |
| System |
| CPU | Qualcomm MSM 8225 Dual Core 1.2GHz, compatible with Qualcomm MSM 8625 |
| Memory | 1GB RAM, 4GB ROM |
| | |
| Storage | T-Flash/Micro SD card, up to 32 GB |
| Operating System | Google Android 4.0.4 |
| Display | TFT LCD 7 inch, sunlight readable
Touch type: Capacitive type
Display Resolution: 1024 x 600 |
| Network Interface | Integrated WLAN 802.11 b/g;Integrated Bluetooth 2.1 |
| Camera | Front 1.3M, rear 5.0M, LED, auto focus |
| | |
| Control Switch and Buttons | 1 x Power on/off button
3 x Function Key button (default on/off control WIFI, BT, 3G, GPS, speaker/microphone) |
| Indicators | 1 Power / 1 Battery status LED |
| Speaker & Microphone | Built-in speaker & microphone |
| | |
| Interfaces |
| USB | Mini USB 10-pin, OTG supported |
| DC Jack | 1 x DC Power input |
| | |
| Micro SD | 1 x Micro Secure Digital (SD) card slot |
| | |
| UART | Supported |
| | |
| RS232 | Supported |
| SIM Socket | 1 x SIM socket |
| Power |
| AC/DC Adapter | Input AC: 100~240V Output DC: 5V |
| Battery Pack | DC 3.7V/ 8000mAh |
| Physical |
| Dimensions | 220 x 132 x 23(mm) (8.7" x 5.2" x 0.9"). |
| Weight | 0.5Kg (1.1lbs) with batteries |
| 3G | GSM/GPRS/EDGE 900/1800Mhz
WCDMA/HSDPA 2100Mhz
CDMA 2000 1X EVDO 800Mhz |
| GPS | Supported, 10m |
| Brand Name | Corewise (Nanjing Corewise Smart Technology Inc.), or OEM/ODM with other brands |
| Features |
| | |
| Fingerprint | Live, biometric fingerprint sensor/reader, capacitive touch screen, 508 DPI |
| QR Code | 2-Dimensional Barcode Scanner (compatible with 1-Dimensional barcode scanning) |
| Waterproof | IP65 |
| Shockproof | 1.0M falling
|
Nanjing Corewise Smart Technology Inc.(hereinafter referred to as "Corewise") was founded in 2010 in Jiangsu provincial capital near Shanghai.Corewise researches, develops, and manufactures all sorts of integrated, smart, and handheld data terminals, e.g.Barcode scanners, IC card readers, fingerprint verification devices, etc.These terminals with WiFi, Bluetooth, RFID, fingerprint algorithm, and biometrics technologies can be widely applied in various scenarios to effectively control people, money as well as content.We have more than 50 R&D specialists graduated from 1st tier Chinese colleges & universities, over 20 patents, and branch offices in Shenzhen and Beijing with annual turnover around 8 million U.S.Dollars.
Leading professional manufacturer of rugged, integrated, smart, mobile, and handheld data equipment as well as total solutions along with platform software;
RFID, WiFi, Bluetooth, biometrics technology developed in-house;
"All-in-one" handheld data terminal integrated with RFID reader/writer, 1D/2D barcode scanner and wireless communications (GSM/ GPRS/ EDGE /WCDMA/ HSDPA/ CDMA2000 1X EVDO)
Our Mission is to provide our clients with reliable data-collection terminals that will make your work more efficient, productive, and easier.Having in-depth knowledge of customer applications/requirements, we are endeavoring to deliver the best, complete line of innovative hardware to meet demands of global clients in diversified fields.
