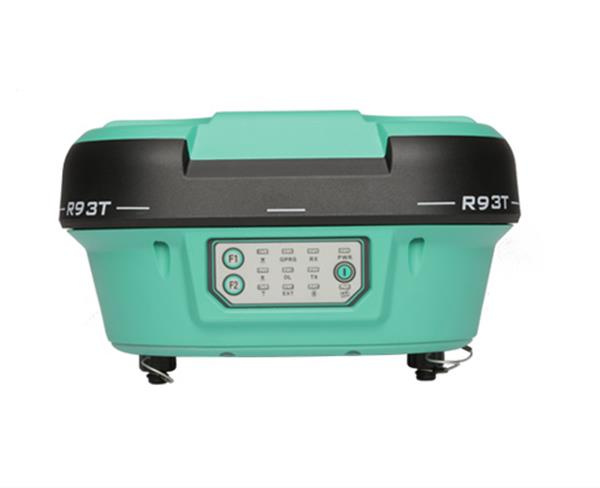

Ruide R93-T 3 Meter Shock Proof Rtk GPS Measuring Instrument

Product Specifications

Prod Model:	Ruide R93-T
Markets:	Eastern Europe,Southeast Asia,Africa
Channels:	220
Configuration:	Dual Frequency for GPS, Glonass, Bds, Sbas and Gal
Horizontal Accuracy:	±1cm+1ppm RMS
Vertical Accuracy:	±2cm+1ppm RMS
Half Battery Capacity:	Dual Battery 3400mAh + 6200ah
Voltage:	7.4V Single PCS Battery Work for 6-8 Hours
Power:	2W
Tramitting Power:	0.5-1W
Frequency Range:	450-470 MHz
Wireless Resistance:	50

Product Description

                      Ruide R93-T 3 meter shock proof rtk gps measuring instrument

Product Description:

Industry-leading Main Board
With MaxwellTM 6 technology, the Integrated Pacific Crest BD970 provides assurance of long-term future-proofing and trouble free operation. 220 Channels for multi-constellation GNSS support.

Multi-constellation
Not only the superior positioning performance in GPS+GLONASS Satellite system, RUIDE R90T also provides Galileo+Compass compatibility (reserved, for signal evaluation and test purpose).

Cable-free Operation by Dual Bluetooth
Integrated dual bluetooth technology enables the receiver transfer data with controller and your mobile device at the same time.

Full Flexibility of Data Link
Integrated GSM/GPRS module enables seamless realtime connection with CORS networks. Combining RUIDE exclusive UHF radio technology, R90T can freely switch between GSM/GPRS, Internal or External Radio modes.

Durability and Waterproof
The ABS+PC material housing provides the maximum ruggedness for the compact and lightweight receiver body. With the IP67 environmental rating, RUIDE R90T can withstand severest condition.

Complete GNSS Software
Full functionality and user-friendliness as well as fully customizable, with RUIDE GNSS Software the data can be downloaded, post-processed and prepared for final processing or direct delivery to clients.

Key Features:

1. DUAL FREQUENCY GNSS RECEIVER R93T
2. GPS+GLONASS+BDS
3. 220 Channels
4. Dual Bluetooth Connectivity GEOGRAPHICAL POSITIONING SYSTEM GPS RUIDE R93T
5. Integrated GSM/GPRS Module
6. Rugged, Waterproof, Lightweight
7. Avaliable ruide rtk gps model: R90T R93T R98T R90X with 460-480mhz

Performance Specifications:

GNSS Receiver Specification	Accuracy
Model
RTK H Accuracy	±1cm+1ppm RMS
RTK V Accuracy	±2cm+1ppm RMS
Static Fast Horizontal Accuracy	±2.5mm+1ppm RMS
Static Fast Vertical Accuracy	±5mm+1ppm RMS
CODE diffential position Accuracy	0.45m(CEP)
Single Location	1.5m(CEP)
GNSS Receiver
No of Channels	220
GPS	L1 C/A, L2E, L1C, L2C, L5
GLONASS	L1 C/A, L1 P, L2C/A , L2 P, L3
BDS	B1/B2/B3
SBAS	L1 C/A, L5
Galileo	GIOVE-A,GIOVE-B,E1, E5A, E5B
Hardware Parameters
size	L*H*W 190mm×190mm×98mm
Weight	1.54 kg
Half Battery capacity	Dual Battery 3400mAH + 6200AH
Voltage	7.4V single pcs battery work for 6-8 hours
Power	2w
Diffential Model	CMR,CMR+,RTCM2.1,RTCM2.2,RTCM2.3,RTCM3.0
Input & Output Interface	1*5 pin differential data port, 1*data transfer serial port
	1*external UHF port,1*external netowrk antenna port
Anti-Shocking	Light easy cage,3meter shock proof
Water-Proof	under water for 1 meter
Dust-Proof	Complete protect for dust
Waterproof Level	IP67
Internal Radio & CDMA network communication
Support for GPRS/CDMA communication, international usful, automatic network login, CORS connection
Function and Indicator
3 Key+11 indicator:flexiable set for working model and data link
Environment
Working Temperature	- 45ºC~ +60ºC
Environment Temperature	- 55ºC~ +85ºC
Radio Parameters
Tramitting Power	0.5-1w
Frequency Range	450-470MHz
Channel Transfer Rate	192000bps
Channel space	0.5MHz
Storage Channel	8
Modem	GMSK
Frequency Stability	±2.0ppm
Wireless Resistance	50

Our Services

1.Reply to your inquiry in 24 working hours
2.Experienced staffs answer all your questions in professional and fluent English.
3.Exclusive and unique solution can be provide to our customer by your our well-trained and professional engineers and staffs

Company Information

Shenzhen Pengjin Technology Co.,Ltd, which is the owner of PJK brand land surveying instrument, the PJK brand covers total station, theodolite, level,RTK GPS, GIS, handheld GPS, Rebound tester, laser vertical collimator, laser rangefinder, laser swinger, laser line marking, laser telescope rangefinder,etc.Now we are looking for the international general agencies.Recently we have many products which are on hot sale like RIDGID line detectors as well as the instruments of HiTarget, North, Kelida, SD, Ruide, GNSS, FOIF and so on.What's more, we have Trimble, Ashtech, LAIKA, TOPCON, SOKKIA, NIKON and surveying instrument which are on sale.In addition, we also undertake projects like land survey and underground pipeline leak test as well as underground pipeline survey, etc.


FAQ

Payment terms :
We accept T.T in advance, Wester Union, Paypal and Escrow  .
If you want other payment terms, Pls let us know before the order.
Delivery time:Ready stock for sample, 1-2 week for large quantity
Warranty:ONE year
