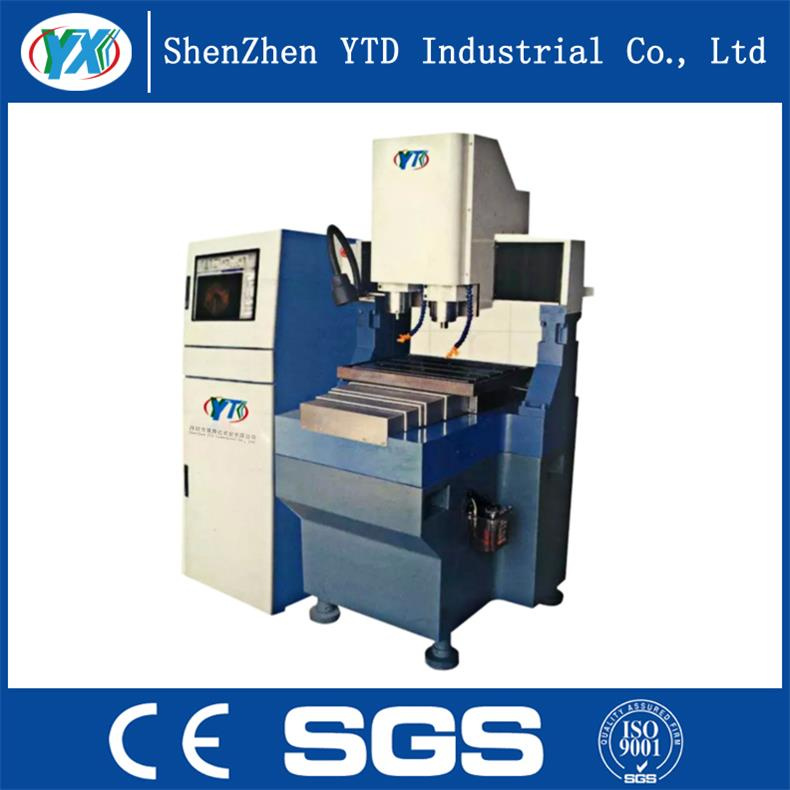

Ry-40m CNC milling/grinding/engraving machine with Two Drills
Characteristics and Application
1. Characteristics:
a. Equipped with external switch, simple to operate.a. The overall casting structure, machine rigidity is strong, guarantee the stability of machine tool processing;
b. X, Y, Z three axis adopt high precision imported Taiwan H level of silver rectangular linear guide, strong load bearing capacity, high precision;
c. High precision grinding C3 level screw to ensure long time mechanical error is small;
d. The fitting precision of high demand, screw guide assembly error is less than 0.01 mm;
e. Equiped with water-cooling spindle cooler, to ensure that the spindle at high speed for a long time no fever, no rust, not blocking the spindle, durable;
f. Lathe bed independent lubrication system design, to ensure that the moving parts durable;
g. Equipped with external switch, simple to operate.
2. Application industry:
Glasses, watches and clocks, jewelry, mould, hardware, mock up, coppersmith, seal, handicrafts, printing, hot stamping, electronic components, electronic products punching and tapping, mobile phones, precision parts processing, jade carving, precision metal parts processing industries.
Parameters
ITEMS | SPECIFICATIONS |
Table dimension | 480*380mm |
Working Stroke for X,Y,Z | 400*300*90mm |
X axis share stroke | 120mm |
Max speed of movement | 9m/Min |
Max processing speed | 8m/Min |
System configuration | Shanghai Weihong |
Position accuracy for X,Y,Z | minus&plus 0.008/300mm |
Repeatability for X,Y,Z | minus&plus0.008mm |
Table flatness | minus&plus 0.015/300mm |
Perpendicularity for X,Y | 0.001/300mm |
Height of Z | 200mm |
Spindle Power | 1500W |
Spindle RPM | 5000-24000RPM |
Drying-System | Servo |
Working voltage | Two phase 220V/50Hz minus&plus 10% |
Machine weight | 800 KG |
Overall dimension | 800*780*1500mm |
Above parameters are demarcated by laser interferometer, British RENISHAW laser instrument.
FAQ
1. What is your lead time?
3 to 4 weeks
2. What is your payment term?
T/T, 30% deposit to confirm oder, 70% balance payment before shipment.
3. How long is your guarantee?
Usually a year
4. Can I visit your factory?
We welcome you to visit our factory and we will pick you up from Airport in Shenzhen
5. What is the customs duty.
It depends on your local customs policy, we can write either pratical amount or lesser amount on the invoive as per your request to help you reduce payment of customs duty.
