Product Specifications
| Prod Model: |
S-201 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Power: |
200W |
| Output Type: |
Single |
| Output Power: |
101 - 200W |
| Input Voltage: |
110-220V |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Warranty: |
2 Years |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CCC |
| Brand: |
Jintu |
Product Description

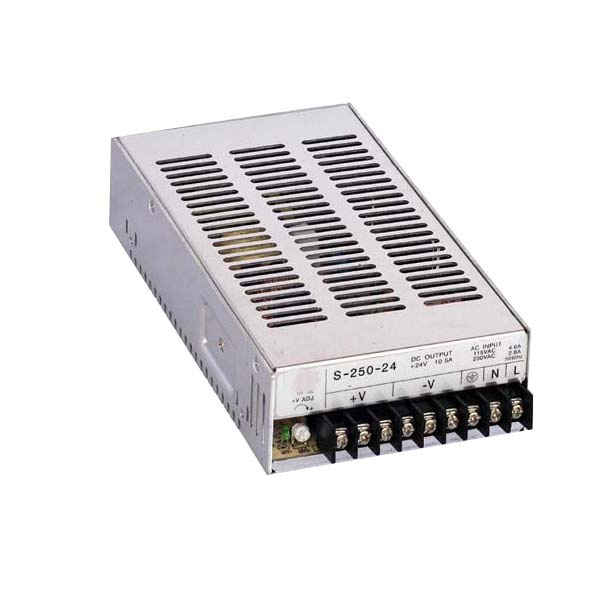

Switching power supply
Input voltage range:90-132VAC/180-264VAC, selected by switch power supply
Input currect:4.5A/115V 2.5A/230V
Inrush Current: Cold start 25A/115V 50A/230V current
Leakkage current:less than 3.5mA/240VAC
Overload protection type:cut output, reset, automatic recovery
Temperature coefficient:±0.03%/C(0-50C)
Start, rise,hold time:200ms, 100ms, 20ms
Earthquake resistance:10-500Hz, 2G 10min,1 cycle,a total of 60 minutes,each axis
Pressure resistance: between input and output:15VAC input and out shell:1.5 KVAC
Temerature, humidity:-10C-60C, 20%-90%RH
Storage temperature and humidity:-20C -85C,10%-95%RH
Dimension(L*W*H):215*115*50mm
Model
output
Tolerance
Ripple and noise
Efficiency
S-201-5V
5V,0-40A
±2%
150mvp-p
74%
S-201-7.5V
7.5V,0-26.5A
±2%
150mvp-p
79%
S-201-12V
12V,0-16.5A
±1%
150mvp-p
80%
S-201-13.5V
13.5V,0-14.7A
±1%
150mvp-p
80%
S-201-15V
15V,0-13A
±1%
150mvp-p
81%
S-201-24V
24V,0-8.3A
±1%
150mvp-p
83%
S-201-27V
27V,0-7.4A
±1%
200mvp-p
83%
S-201-48V
48V,0-4.2A
±1%
240mvp-p
84%
