Product Specifications
Prod Model: |
S-600 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
Power: |
500W |
Output Type: |
Single |
Output Power: |
401 - 500W |
Input Voltage: |
110-220V |
Voltage Regulating Mode: |
Frequency Modulation Type |
Connection Mode: |
Series Switching Power Supply |
Starting Mode: |
Self-excited Switching Power Supply |
Warranty: |
2 Years |
Power Supplying System: |
Terminal Power Distribution Equipment |
Certification: |
CCC |
Brand: |
Jintu |
Product Description

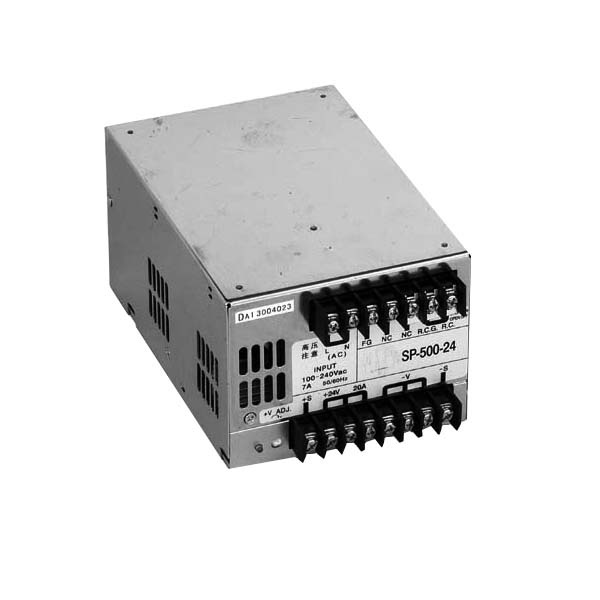

Switching power supply
Input voltage range:176-264VAC 47-36HZ/250-370VDCInput currect:7A/115V 3.5A/230V
Inrush Current:18A/115V 36A/230V current
Leakkage current:less than 3.5mA/240VAC
105-135%Overload protection type:cut output, reset, automatic recovery
Temperature coefficient:±0.03%/C(0-50C)
Start, rise,hold time:1.5s, 50ms, 20ms
Earthquake resistance:10-500Hz, 2G 10min,1 cycle,a total of 60 minutes,each axis
Pressure resistance: between input and output:15VAC input and shell:1.5 KVAC, output and shell:0.5 KVAC
Temerature, humidity:-10C-60C, 20%-90%RH
Storage temperature and humidity:-20C -85C,10%-95%RH
Model
output
Tolerance
Ripple and noise
Efficiency
S-600-12V
12V,0-50A
±1%
240mvp-p
84%
S-600-13.5V
13.5V,0-44A
±1%
240mvp-p
84%
S-600-15V
15V,0-40A
±1%
240mvp-p
83%
S-600-24V
24V,0-25A
±1%
240mvp-p
85%
S-600-27V
27V,0-22A
±1%
240mvp-p
86%
S-600-48V
48V,0-12.5A
±1%
300mvp-p
87%
Our Yueqing JinTu Trading Co., Ltd which is located in LiuShi town was found in 2007. We company mainly produces and deals with instrument such as pressure gauges, thermometers and pressure transmitters and valve manifolds. Our products are widely used in room, oil industry, mechanical industry, food industry, machinery industry and so on. Most of our products are for being exported. We can produce related product according to your requires and drawings. Thanks to the quality of our products, we have obtained a good reputation with sales to more than 20 countries in Europe, America, Middle East and Southeast Asia.
Please feel free to contact with us.
