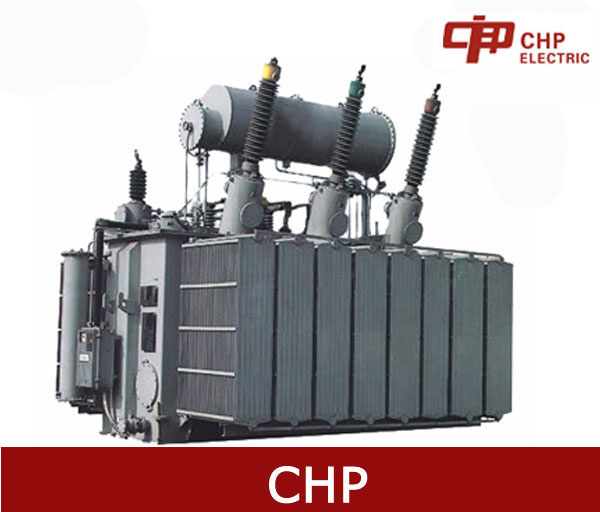

S10 Series 220kv Power Transformer

Name: S10 Series 220kv Power Transformer
Brand: china-manufacturer-directory.com
SKU: 709766465
Availability: InStock
Rating: 5 (64 reviews)

Supplier:	Yueqing Champn Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Application:	Power

Product Description

The 220KV Level Oil Immersed On-Load Regulation Power Transformer has to series of big changes in material, technical and construction with the characters of small size. Light weight, high effiency with low loss and low noise, stable opable operation which cutting down large number of loss from Energy GRID and missing operation charge, improving the industrial economic benefit. It is used in power plant, transformer substation, big-sized and chemistry factory and etc.

220KV POWER TRANFSORMER
Rated capacity(kVA)	Voltage combination and Tap Range		Vector group	S10 series		S11 series		No-load current	Short-circuit Impedance%
	Voltage combination and Tap Range			S10 series		S11 series
	HV	LV		No-load loss	Load loss	No-load loss	Load loss
31500	220+/-22.5%220+/-22.5%	6.3	Ynd11	31.5	128.25	25.2	121.84	0.7	12~14
40000		6.6		36.9	149.15	29.52	141.69	0.7
63000		10.5		44.1	179.55	35.28	170.57	0.65
75000		11		52.2	209	41.76	198.55	0.65
90000		10.5		60.3	237	48.24	225.63	0.6
120000		11		69.3	273	55.44	259.92	0.55
150000		13.8		84.6	327	67.68	311.36	0.55
160000		11		100.8	384	80.64	365.51	0.5
180000		13.8		105.3	403.75	84.24	383.56	0.46
240000		15.75		115.2	436.05	92.16	414.24	0.42
300000		18		114	538.65	115.2	511.72	0.38
360000		20		170	641.25	136.08	609.19	0.38
370000		15.75		195.3	735.3	156.24	698.54	0.38
400000		18		198.9	750.5	159.12	712.98	0.35
420000		20		210.6	795.15	168.48	755.39	0.35
				217.8	824.6	174.24	783.37	0.35
