Product Specifications
| Prod Model: |
S11-2500/10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
10kv |
| Color: |
Grey or as Ruquired |
| Winding Material: |
Copper |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Application: |
Electronic |
Product Description
Features:
1. Low loss, low noise
2. Low impedance, low discharge
3. Environmental protection
4. Operation reliability
Working conditions
Altitude: +2500m
Ambient temperature: -25 degrees ~+40 degrees
Seismic intensity≥ 7 degrees

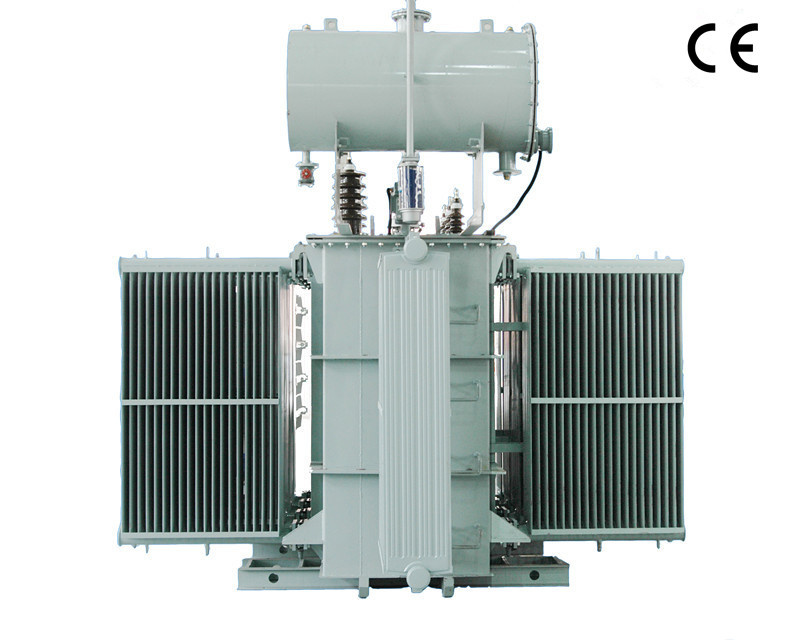

Technical parameters of 10KV grade S11 series three-phase duplex winding no excitation voltage regulation power transformer(this is just for reference, also can be customized)
Model NO.
|
Rated capacity(KVA)
|
Voltage combination
|
Connection group symbol
|
Loss(KW)
|
No-load current %
|
Short circuit
Impedance %
|
Weight(kg)
|
Overall size
L*W*H
(mm)
|
Track gauge(mm)
|
HV(KV)
|
HV range%
|
LV(KV)
|
No-load
|
Load
|
Oil
|
Total
|
|
S11-100/10 |
100 |
6
6.3
10
10.5
11 |
(±5%)
(±2*2.5%) |
0.4 |
Y yn0
D yn11 |
0.20 |
1.50 |
1.6 |
4 |
125 |
585 |
1100*620*1125 |
400*400 |
|
S11-125/10 |
125 |
0.24 |
1.80 |
1.5 |
4 |
135 |
650 |
1120*630*1150 |
550*550 |
|
S11-160/10 |
160 |
0.27 |
2.20 |
1.4 |
4 |
160 |
760 |
1160*640*1195 |
550*550 |
|
S11-200/10 |
200 |
0.33 |
2.60 |
1.3 |
4 |
185 |
920 |
1210*670*1235 |
550*550 |
|
S11-250/10 |
250 |
0.40 |
3.05 |
1.2 |
4 |
205 |
1080 |
1290*720*1270 |
550*550 |
|
S11-315/10 |
315 |
0.48 |
3.65 |
1.2 |
4 |
240 |
1250 |
1310*730*1305 |
550*550 |
|
S11-400/10 |
400 |
0.57 |
4.30 |
1.1 |
4 |
275 |
1460 |
1360*750*1355 |
550*550 |
|
S11-500/10 |
500 |
0.68 |
5.10 |
1.0 |
4 |
310 |
1725 |
1390*760*1400 |
660*660 |
|
S11-630/10 |
630 |
0.81 |
6.20 |
0.9 |
4.5 |
430 |
2340 |
1320*1060*1550 |
820*820 |
|
S11-800/10 |
800 |
0.98 |
7.50 |
0.8 |
4.5 |
500 |
2750 |
1630*1120*1640 |
820*820 |
|
S11-1000/10 |
1000 |
1.15 |
10.30 |
0.7 |
4.5 |
560 |
3110 |
1950*1710*1925 |
820*820 |
|
S11-1250/10 |
1250 |
1.36 |
12.00 |
0.6 |
4.5 |
700 |
3630 |
2020*1830*2020 |
820*820 |
|
S11-1600/10 |
1600 |
1.64 |
14.50 |
0.6 |
4.5 |
805 |
4280 |
2050*2050*2050 |
820*820 |
|
S11-2000/10 |
2000 |
2 |
20.3 |
0.5 |
5 |
880 |
4770 |
2160*1980*2250 |
820*820 |
|
S11-2500/10 |
2500 |
2.45 |
24.8 |
0.4 |
5.5 |
950 |
5390 |
2340*2220*2360 |
820*820 |
|
S11-3150/10 |
3150 |
3.4 |
27.5 |
0.4 |
6 |
1620 |
8030 |
2670*2070*2510 |
1070*1070 |
Suzhou Boyuan Special Transformer Co., Ltd.Is a high-tech joint-stock enterprise that integrates research\development\manufacture.Located in the burgeoning modern port city__Zhangjiagang Economic Development Zone (South Side).Our company covers an area of 11800 square meters, with modern production plant 7800 square meters, fixed assets investment reached 25 million.35 percent of the total staff are engineers and technicians, and our annual product capacity reaches about 3600000kVA.Be a member of China Electrical Equipment Industrial Association and AAA Class Credit Enterprise.We manager the product process strictly accordance with the ISO9001:2008 quality system standards, in order to ensure product quality to meet customer's requirements.
As a production base of Chinese special transformer, Suzhou boyuan special transformer Co., Ltd.Owns standard technology and complete testing equipment, with a variety of production corollary equipment more than 80 sets.Equipped with silicon-steel sheet automatic shearing production line;Voltage transformation method of vacuum drying system;H class insulation vacuum pressure DIP equipment and advanced equipment\precision measuring instrument for testing transformers, so as to make sure our products completely meet our customer's meets.
Leading products:0.38~35KV class 400~31500kVA series electric furnace transformer(electric arc furnace\ladle refining furnace\ore furnace\power frequency induction furnace\electro-slag furnace), 0.38~35KV class 500~25000kVA series rectifier transformer(colored electrolytic rectifier transformer\electrochemistry rectifier transformer\medium frequency induction furnace rectifier transformer\drive rectifier transformer), 0.38~35KV and 5~3500kVA series magnetic voltage regulator, KTF5-1250kVA series thyristor AC voltage regulator, H class insulation series dry-type transformer, energy-saving power transformer\autotransformer\various reactor, we also can design and manufacture all kinds of special transformers according to customer's requirements.
Our products enjoy good performance and high quality, best-selling home and abroad.The company's quality requirements are:"boyuan Special Type Transformer seeks for greater perfection".Our brand culture is to create boyuan brand and revitalize national industry.We always
Believe by virtue of our product quality\integrity and cooperative attitude\business philosophy of win-win situation, our company will be well-known, we always warmly welcome customers at home and abroad to visit us, negotiate and cooperate!
