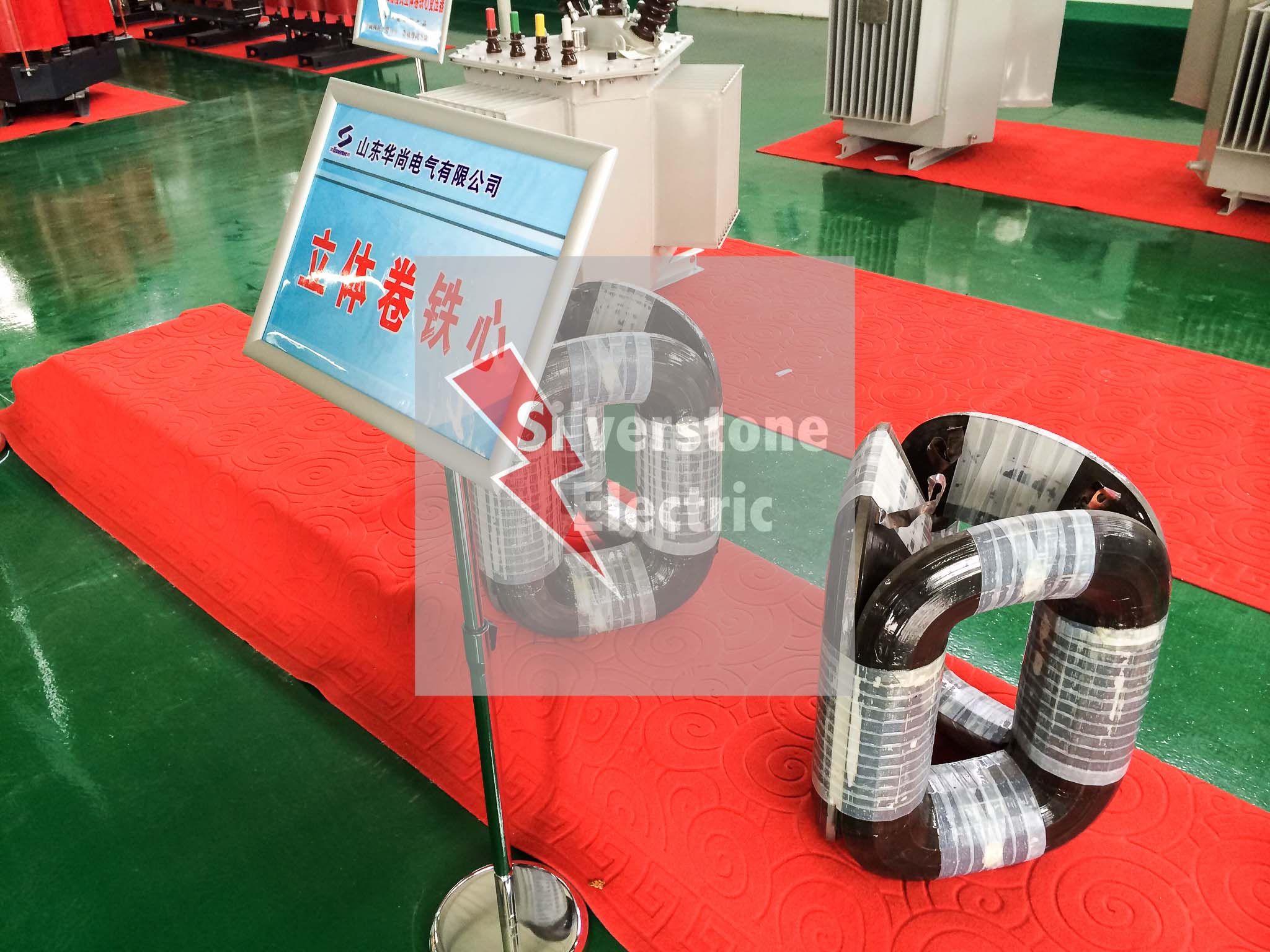

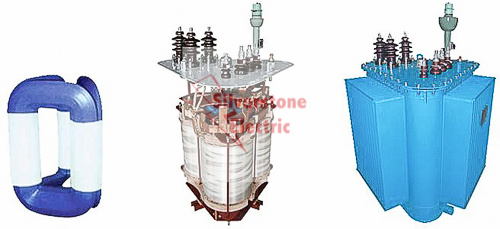

S13-M. Rl 3 Phase Energy Saving Triangular Wound Core Transformer

Product Specifications

Product Description

Model
S13-M.RL 3 Phase Energy Saving Triangular Wound Core Transformer

30 Years in Electrics Equipment OEM Manufacturing

Standards

GB1094,GB/T6451,GB/T11022,GB7251,GB/T14028,GB/T17467

Features

The Encapsulated Transformer, because the insulation oil cut off from outside, can prevent penetrating gas and water, slow down the aging of insulation oil, extend the life of transformer,  energy saving, safe & reliable, lightweight structure, efficient and advanced product.

S13-M, S13 series of oil-immersed power transformers are new type products in complied with GB Standard, with compact structure, beautiful appearance, small size, low noise temperature rise, strong overload capacity.


A decrease of no-load losses than S9 series up to 30%-40%, and no-load current is decreased up to 45%-80% also, which are the most energy efficient series products.


1. Box fully sealed structure with corrugated tank to prevent the contact of the air, water and transformers to reduce the degree of aging of the oil, extending the life of the transformer. Adjust the volume change of the transformer oil thermal expansion and contraction by the elastic deformation of the corrugated sheet.

2. Products for outdoor structures, no oil conservator, with high antifouling level, no need replacing the transformer oil in the normal use period, truly free maintenance, to ensure the safe operation and reliability of the power grid.

3. The transformer is equiped with pressure releae safety devices, the transformer occurs failure and pressure gets too high, it can released the presure through valve reliably and safely to prevent accidents expand.

4. There are two types of sealed type along the box: the weld type and bolt type for user to choose.

Our Transformer Product Range
S10 S11 S13 oil type transformer:50-31500KVA,6-33KV,50/60HZ,off load tape changer

SZ10 SZ11 oil type transformer:50-31500KVA, 6-33KV,50/60HZ, on load tape changer

SCB9,SCB11 dry type transformer: F grade insulation, 50-3150KVA,6-33KV, 50/60HZ

SCBH15 11KV amorphous alloy dry type transformer:F grade insulation

SGB10 SGB11 11KV dry type transformer:H grade insulation

SBH15 Oil type amorphous alloy transformer 11KV Level

S13-M 1full sealed oil immersed power transformer

Dry type reactor

S(B)H15-16 Amorphous Transformer

BKSC(G)Dry-type shunt reactor

QKSC Dry Startup reactor

Smoothing reactors

KD-LK-type low-pressure filter reactor

Cast resin dry type earthing transformer

Dry type rectifier transformer

Rectifier transformer

Furnace transformer

Note: we can design and manufacture special transformer as customers' requirements.

Ordering Instruction: 1.product model; 2.rated capacity; 3.voltage range; 4.regulation range; 5.frequency; 6.connection symbol; 7. Technical specs for customized transformer.

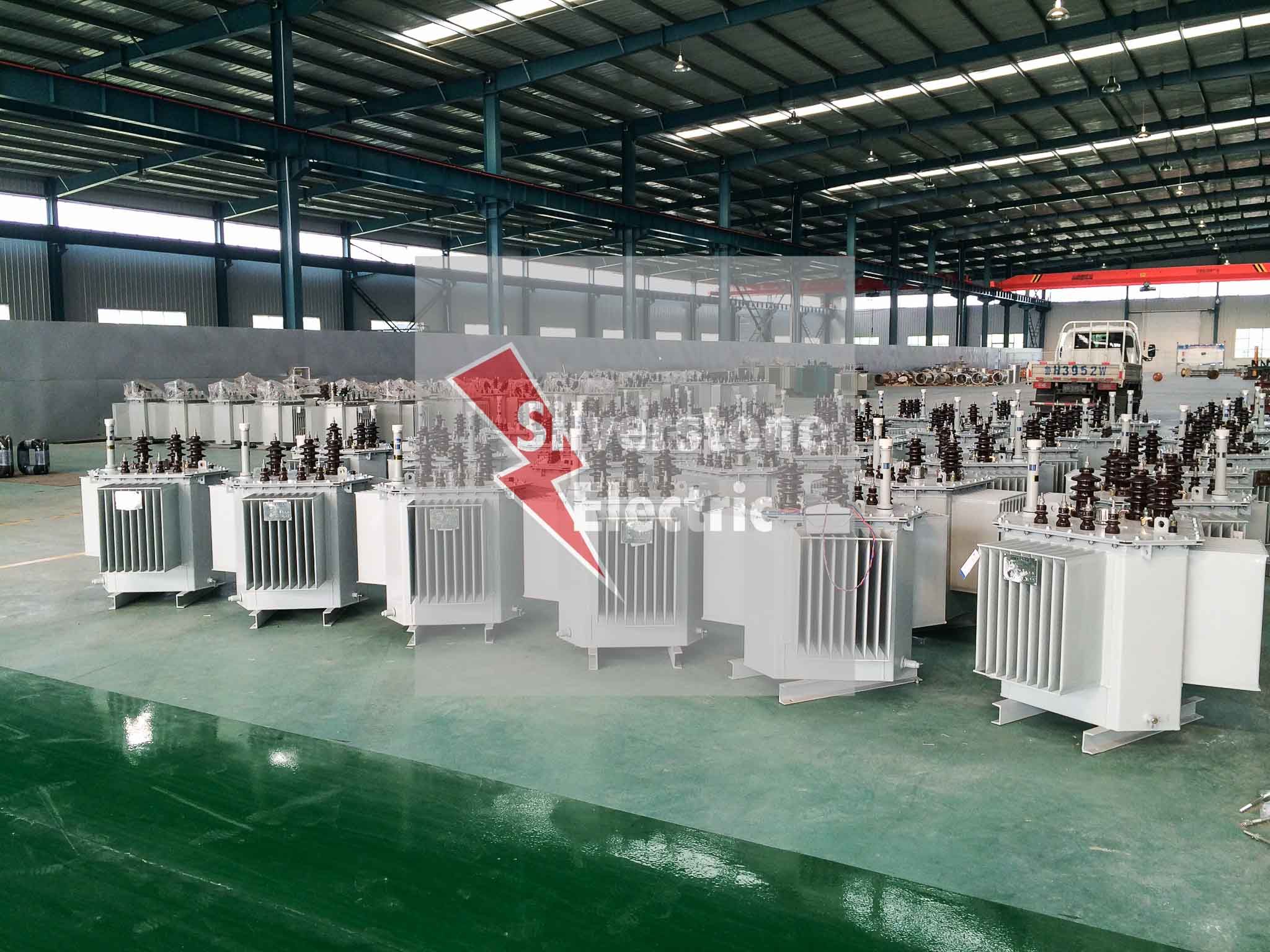

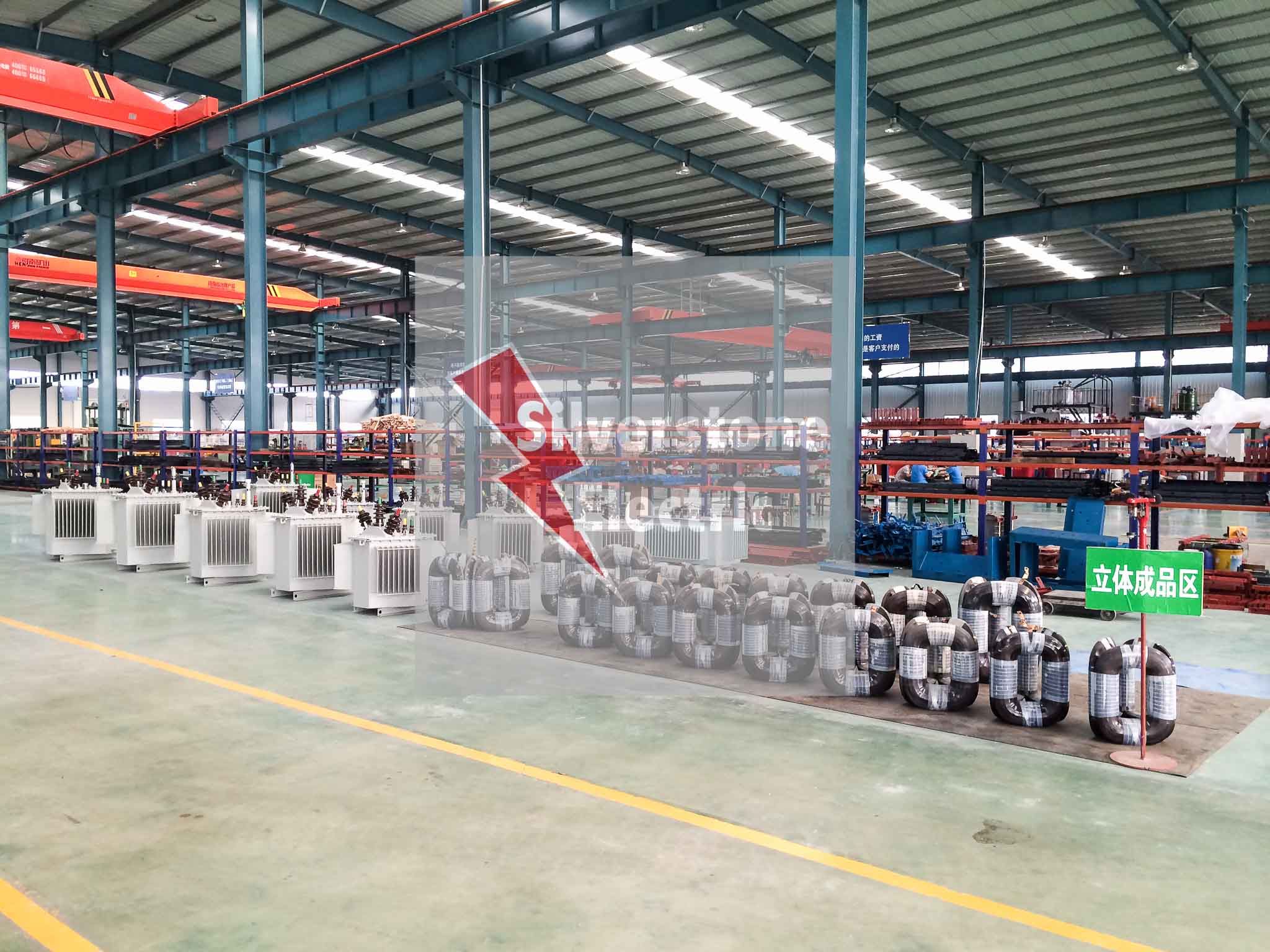

Workshop
