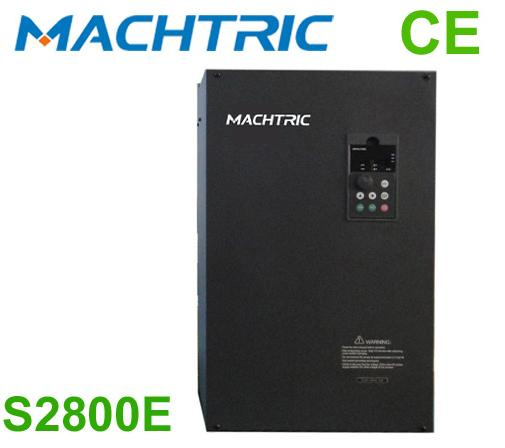

S2800e Vector Control Frequency Inverter for Heavy Loading
Product Specifications
| Prod Model: |
S2800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Range: |
0.4-1000kw |
| Control Mode: |
Sensorless Vector, V/Fcontrol |
| Voltage Range: |
220V/380V/480V/660V |
| Warranty: |
12months |
| Pid: |
Pid Built-in |
| PLC: |
Simple PLC Function |
| The Phase: |
1/3 Phases |
| The Color: |
Black |
| Frequency Inverter: |
Frequency Inverter |
| VFD: |
Variable Frequency Drive |
| Phase: |
Multiple |
| Power Source: |
Electric Power |
| Type: |
AC-DC-AC |
| Output Power: |
0.4-1000kw |
| Certification: |
CE.ISO |
| Brand: |
Machtric |
Product Description
Specifications
Excellent Quality
Perfect performance
Multi-speed
Built in PID
0.5-15K Hz
Model Instruction
Model: S2800-4T7.5GE
S: SANCH
2800: Series
4: 440V / 2: 220V
7.5: 7.5KW
T: Three phase / S: Single phase
GE: Economical type
Target market of S2800 E series Inverter
Paper machinery
Screw output device
Drawing Equipment
Dyeing plant
Injection plastic equipment
Air conditioning system
Machine tool equipment
Boiler system
Chemical fiber equipment
Water supply, oil transportation installation. etc
Textile equipment
SPECIFICATION:
AC frequency inverter for motor, variable frequency inverter 50Hz, variable speed drives, AC frequency inverter for motor, variable frequency inverter 50Hz, variable speed drives products, frequency inverter 50Hz to 60Hz
Model |
S2800 E |
Input |
Rated Voltage& Frequency |
Single phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
Voltage Allowable Range |
220/380 ± 15% |
Output |
Output Voltage Range |
1~rated input voltage |
Output Frequency Range |
0~600Hz |
|
Control Mode |
Sensorless Vector Control, V/F control |
Technic |
Overload Capacity |
150% rated current in 60s; 180% rated current in 10s |
Start Torque |
0.5Hz/150% with vector senserless control |
Adjustment Ratio |
1:100 with vector senserless control |
Speed Control Accuracy |
Maximum speed±0.5% with vector senserless control |
Carrier Frequency |
0.5~15Hz |
Terminal |
Programmable Digital Input |
4 terminals |
Programmable Analog Input |
FIV:0~10V, FIC:0~10V or 0~20mA |
Coupling Output |
1 set |
Relay Output |
1 set |
Analog Output |
1 set-option of 4~20mA/ 0~10V |
Function |
Frequency Setting |
Digital, Analog, Series communication, Multi-Speed, PID, etc |
PID Function |
Built in |
Multi-speed Function |
8 speeds |
Adjustable frequency |
Stable frequency |
Off Power |
Keep running in power off instantly |
Jog Key Function |
Multi-function setting by Users |
Voltage Adjustment |
Auto maintain output voltage stable in changing of power |
Failure Protection |
25 types of failure protection: over current, over voltage, low voltage,
over heat, short phase, over load, etc, |
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
